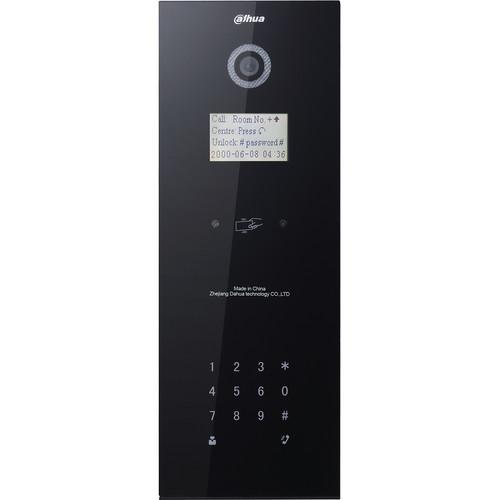

Product description Monitor your building's entrance and go keyless with the Apartment Video Intercom Outdoor Station from Dahua Technology. Featuring a built-in camera with a 1/3" 1.3MP CMOS sensor and a 3.6mm lens, this station captures the scene outside your door with horizontal and vertical angles of view of 75 and 95° respectively. The camera delivers color video both during the day and at night, while the speaker and omnidirectional microphone built into the station allow for two-way voice communication with callers at your door.
When someone rings your doorbell, you can watch the outdoor station's video feed on an indoor monitor or mobile device (both available separately). After seeing and talking to your visitors, you can choose to unlock the door – even from your mobile device if you happen to be away from home. Visitors ringing your doorbell are assisted by voice prompts and instructions appearing on a 3" STN LCD screen. They can leave audio and video messages if no one answers.
Reliable and easy to use, the station grants access to family members and authorized visitors. All they have to do when coming home is wave a properly encoded MIFARE card in front of the station's built-in proximity reader, or enter the right PIN code on its touch-button keypad. In the event of an emergency, the management center can be called from the station. The Intercom Outdoor Station is enclosed in an IP65-rated tempered glass panel and allows for neat flush-mount installations. UPC: 819290020298 In the Box Dahua Technology Apartment Video Intercom Outdoor Station with Remote Unlock Function Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Apartment Video Intercom Outdoor Station with Remote Unlock Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-VTO1210B-X Specs | | | Main Processor | Embedded microprocessor | | Operating System | Embedded Linux | | | | Image Sensor | 1/3" 1.3 MP CMOS | | Lens | 3.6mm | | Angle of View | Horizontal: 75°
Vertical: 95° | | Day/Night | Color image | | | | Input | Omnidirectional microphone | | Output | Built-in speaker | | Two-way Audio | Bidirectional talk supported | | | | LCD Display | 3" STN Screen | | Resolution | 128 x 64 | | | | Input | Keypad touch buttons | | Card Reader | MIFARE card | | Detection | IR, 3.28' (1 m) | | | | Control | 1 x door control | | Alarm Input | 2 Channels:
1 x unlock button
1 x feedback | | RS-485 | 1 x port | | Switch | 1 x tamper switch | | | | Ethernet | 10/100 Mb/s, self-adaptive | | Network Protocol | TCP/IP | | Video Compression | H.264 | | Audio Compression | G.711 | | | | Safety | EN 60950:2006+A2:2013 | | Electromagnetic Compatibility | FCC CFR 47 part 15 subpart B
ANSI C63.4 - 2009
EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 | | | | Power | 12 VDC | | Power Consumption | Standby: 1 W or less
Operation: 10 W or less | | | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 90%, relative | | Ingress protection | IP65 | | | | Material | Tempered glass | | Installation | Flush mount | | Dimensions | 5.91 x 16.06 x 1.83" / 15.0 x 40.8 x 4.6 cm | | Weight | 3.53 lb / 1.6 kg |
