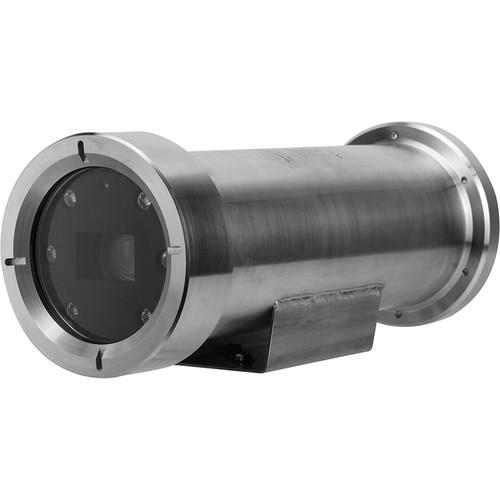

User Manual for Dahua Technology DH-EPC230UN 2MP Outdoor Explosion-Protected Network Bullet Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-EPC230UN 2MP Outdoor Explosion-Protected
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology DH-EPC230UN 2MP Outdoor Explosion-Protected contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DH-EPC230UN 2MP Outdoor Explosion-Protected Network Bullet Camera from Dahua Technology uses a 1/2.8" STARVIS progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Six IR LEDs provide up to 328' of night vision. The 4.5-135mm varifocal lens delivers a 67.8-2.4° horizontal field of view and 30x optical zoom. Two-way audio communication is possible thanks to an audio I/O port. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Network connectivity is via a 10/100M RJ45 port.
This bullet camera is equipped with a built-in heater. It is housed in a 304 stainless steel enclosure that is IP68-rated for outdoor use. - Designed to prevent surrounding gasses or combustible dust from igniting
- Suitable for oil production, pipeline, refinery, chemical, and grain storage industries
- Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection, and heat mapping
- Starlight technology for low-light applications
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- Auto and manual focus control
- 3.94 to 39.37" close focus distance
- 30x optical and 16x digital zoom
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- White balance modes include auto, ATW, indoor, outdoor, and manual
- Auto and manual gain control
- Advanced features include motion detection, ROI (region of interest), EIS (electronic image stabilization), and defog
- Two alarm inputs and one alarm output
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Records to local PC and NAS edge storage
- IP68-rated 304 stainless steel enclosure that is suitable for outdoor use
- ±25% input voltage tolerance, 2kV lightning protection, and ATEX & IECEx certifications
- ATEX
-
- EN 60079-0:2012+A11:2013
- EN 60079-1:2014
- EN 60079-28:2015
- EN 60079-31:2014
- IECEx
-
- IEC 60079-0:2011
- IEC 60079-1:2014-06
- IEC 60079-28:2015
- IEC 60079-31:2013
- DORI Distance
-
- 6109' / 1862m (detect)
- 2441' / 744m (observe)
- 1220' / 372m (recognize)
- 610' / 186m (identify)
UPC: 816116028780 In the Box Dahua Technology DH-EPC230UN 2MP Outdoor Explosion-Protected Network Bullet Camera with Night Vision & Heater Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-EPC230UN 2MP Outdoor Explosion-Protected Network Bullet Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-EPC230UN Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.5 to 135mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Optical: 30x
Digital: 16x | | Lens Field of View | Horizontal: 67.8 to 2.4° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (8.19 Mb/s H.264) | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.722, G.726, MP2L2 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Drastic Focus Change/Loss, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Face Detection, Heat Mapping | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC
1 x 9-Pin Serial (RS-485) | | IR Range | 328.08' / 100 m | | Video Management Software | SmartPSS, DSS | | Certifications | ATEX, IECEx, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC | | Power Consumption | 10 W 25 W with IR on | | Material of Construction | Stainless Steel | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP68 | | Dimensions | H: 5.9 x W: 5.6 x L: 15.6" / H: 149.5 x W: 143.0 x L: 396.1 mm | | Weight | 19.2 lb / 8.7 kg |
