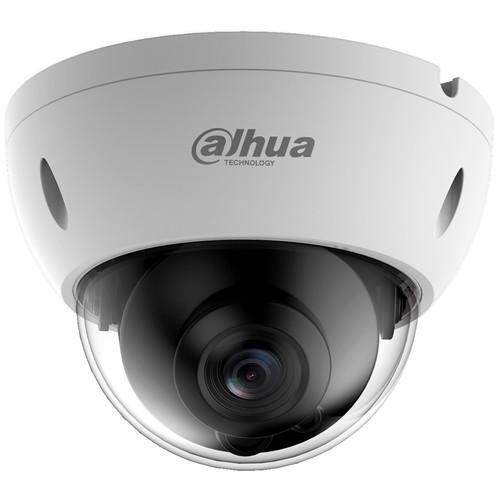

User Manual for Dahua Technology DH-IPC-HDBW4239RN-ASE 2MP Outdoor ePoE Network Dome Camera

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

• Night Color Technology for around-the-clock color surveillance in low-light conditions

• Suitable for parking lots, schools, streets, and museums

• Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects

• Ethernet over Coaxial (EoC) technology

• Enhanced Power over Ethernet (ePoE) technology enables long distance power and data transmission via Ethernet or coaxial cables up to 3281'

• ePoE technology converts existing coax-based analog systems into IP systems, reducing cable & peripheral device requirements, saving you time & money

• Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compressions

• Triple streaming

• Unicast and multicast streaming methods

• CBR and VBR

• Fixed focus control

• 5.3' close focus distance

• 16x digital zoom

• Camera pivots horizontally from 0 to 360° & vertically from 0 to 80°

• 0 to 360° rotation range

• True wide dynamic range (120 dB), backlight compensation, and highlight compensation

• >50 dB S/N ratio

• White balance modes include auto, natural, street lamp, outdoor, and manual

• Auto and manual gain control

• 3D-DNR

• Motion detection for 4 zones (rectangular)

• ROI (region of interest) for 4 zones

• Privacy masking for 4 areas (rectangular)

• 0, 90, 180, and 270° flip perspective

• Mirroring

• Audio input and output

• One alarm input and one output

• Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, Android, Smart PSS, DSS, and DMSS

• Records to a local PC, microSD card, and NAS edge storage

• UL and FCC certified

• 6kV lightning protection and ±30% input voltage tolerance

DORI Distance
• • Detect (8 ppf): 174'
  • Observe (19 ppf): 69'
  • Recognize (38 ppf): 36'
  • Identify (76 ppf): 16'

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology DH-IPC-HDBW4239RN-ASE Specs

Memory	256 MB RAM / 32 MB Flash
Recording Media	microSD (Up to 128 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x Power
Video Management Software	Smart PSS, DSS, DMSS
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	3.7 W
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-22 to 140°F / -30 to 60°C
Storage Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP67
IK Rating	IK10
