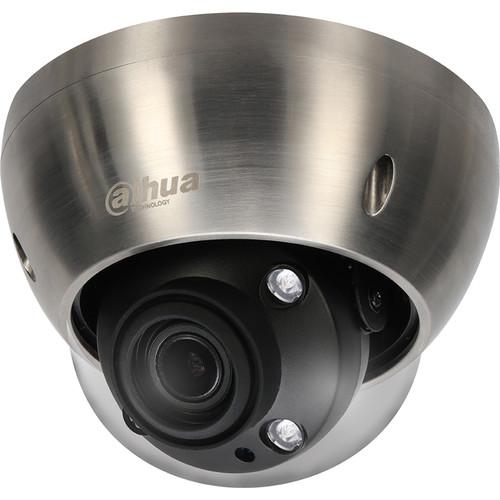

User Manual for Dahua Technology DH-IPC-HDBW8232EN-Z-SL 2MP Corrosion-Resistant Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-IPC-HDBW8232EN-Z-SL 2MP Corrosion-Resistant Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology DH-IPC-HDBW8232EN-Z-SL 2MP Corrosion-Resistant Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DH-IPC-HDBW8232EN-Z-SL 2MP Corrosion-Resistant Outdoor Network Dome Camera with Night Vision from Dahua Technology uses a 1/1.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 60 fps. Three IR LEDs provide up to 164' of night vision. The 4.1-16.4mm motorized varifocal lens delivers a 92-32° horizontal field of view and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera is housed in a 316L corrosion-resistant stainless steel enclosure. Additionally, it is IP67-, NEMA 4X-, and IK10-rated for outdoor use in areas at risk of vandalism. - 316L corrosion-resistant stainless steel housing
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tampering detection, face detection, people counting, and heat mapping
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- Starlight Technology for low-light sensitivity
- IR cut filter for day and night functionality
- True wide dynamic range (120 dB), backlight compensation, highlight compensation, and Smart Scene Adaptive (SSA)
- Motorized auto iris and focus control
- 39.37" close focus distance
- 4x optical and 16x digital zoom
- Camera pivots from 0 to 355° horizontally & from 0 to 65° vertically
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- EIS (electronic image stabilization)
- Motion detection for 4 zones (rectangles)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 zones (rectangles)
- Flip for 0, 90, 180, and 270°
- Compatible with Internet Explorer, Firefox, Safari, iOS, and Android
- Local PC for instant recording and NAS edge storage
UPC: 816116028193 In the Box Dahua Technology DH-IPC-HDBW8232EN-Z-SL 2MP Corrosion-Resistant Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-IPC-HDBW8232EN-Z-SL 2MP Corrosion-Resistant Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDBW8232EN-Z-SL Specs | | | Sensor | 2 MP 1/1.9" CMOS | | Focal Length | 4.1 to 16.4mm | | Maximum Aperture | f/1.53 | | Zoom | Optical: 4x
Digital: 16x | | Lens Field of View | Horizontal: 92 to 32°
Vertical: 53 to 18° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 65° | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Drastic Focus Change/Loss, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection, People Counting, Heat Mapping | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 1024 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 164.04' / 50 m | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3at (30 W) | | Power Consumption | 18 W | | Material of Construction | Stainless Steel | | Operating Temperature | -40 to 60°F / -40 to 15°C | | Storage Temperature | -40 to 60°F / -40 to 15°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
