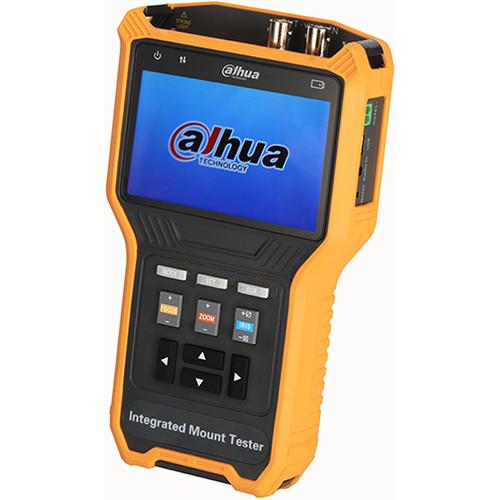

User Manual for Dahua Technology DH-PFM905 Integrated Mount Tester Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-PFM905 Integrated Mount Tester
- Product category: Test Monitors Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Test Monitors
|
User manual for the Dahua Technology DH-PFM905 Integrated Mount Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DH-PFM905 Integrated Mount Tester from Dahua Technology features a 4" IPS screen with 800 x 480 resolution and 16.7 million color support. It supports audio as well as RS485 control signals. For better visibility while using the tester in low lighting conditions, it comes equipped with a dual-LED lighting flashlight. - Supports video screenshot, video recording, record playback, and data monitoring
- Supports HD-CVI/AHD/HD-TVI/CVBS analog self-adaptive access and switch
- Supports 12 VDC / 1A power supply
UPC: 816116027073 In the Box Dahua Technology DH-PFM905 Integrated Mount Tester Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-PFM905 Integrated Mount Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-PFM905 Specs | | | Video | 2 x BNC (video in and video out) | | Audio | 1 x audio in | | Control | 1 x RS-485 | | Power | 1 x 12 V / 1 A output
1 x charge input | | Other | 1 x micro-USB
1 x reset | | | | Format | HD-CVI/AHD/HD-TVI/CVBS | | Resolution | 720p at 25/30/50/60 fps
1080p at 25/30 fps | | Signal Level | 1 V p-p | | Testing | Camera:
Real-time video, PTZ control, audio test, full screen preview, 8x digital zoom, snapshot, record video (H.264) | | OSD | HD-CVI: Camera configuration | | | | Port | RS-485 | | Protocol | More than 30 protocols including Dahua, Pelco D/P, Samsung, Panasonic, Lilin, Yaan, and more | | Baud Rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19,200 bps | | | | Playback | Support single-frame playback, digital zoom, full-screen playback, faster rewinding and fast-forwarding, file deletion and the around file fast switching | | Screen Shot | Support image zoom, full-screen demonstration, file deletion and the around file fast switching | | | | LEDs | Flashlight: 2 x 35-lumen LEDs | | | | Memory Card Slot | Micro-USB (USB mass storage) | | Capacity | 8 GB flash (internal) | | | | Screen Size | 4" / 10.2 cm | | Type | TFT | | Resolution | 800 x 480 RGB (WVGA) | | Color Support | 16.7 million | | Control | Backlight brightness adjustable | | | | Operation | 10 control keys | | Menu Languages | Chinese, English, French, German, Spanish, Russian, Turkish, Czech | | Auto Power Off | Disable / 5 to 60 minutes | | Tone | Keyboard: Enable/Disable | | Upgrade Option | Support online upgrade via a USB connection | | Certifications | CE/FCC | | | | Charger | Input: 100 to 240 VAC; 50/60 Hz
Output: 12 V / 1 A, 0.22" / 5.5 mm | | Battery | Standard 7.4 V Li battery, 10.4 Wh capacity | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 30 to 90% | | | | Casing | Plastic | | Dimensions | 6.89 x 4.45 x 1.46" / 17.5 x 11.3 x 3.7 cm | | Weight | 0.85 lb / 0.38 kg |
