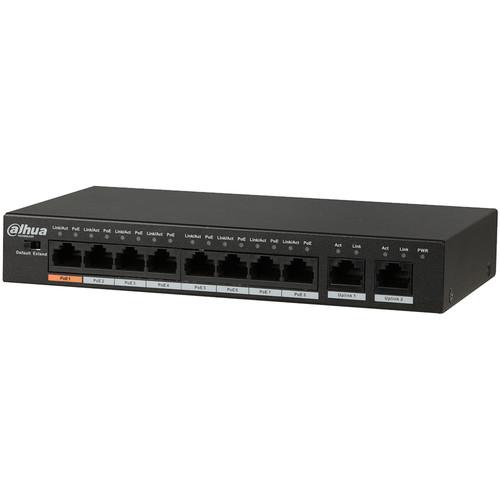

User Manual for Dahua Technology DH-PFS3010-8ET-96 10-Port Fast Ethernet PoE Switch Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-PFS3010-8ET-96 10-Port Fast Ethernet
- Product category: Network Switches, Bridges & Hubs Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Switches, Bridges & Hubs
|
User manual for the Dahua Technology DH-PFS3010-8ET-96 10-Port Fast Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Designed for commercial use, the DH-PFS3010-8ET-96 10-Port Fast Ethernet PoE+ Switch from Dahua comes with a total PoE power budget of up to 60W so you can plug PoE compliant devices to any of the eight Fast Ethernet PoE+ ports. Alongside the eight Fast Ethernet ports, you will find dual Gigabit Ethernet uplink ports to connect various network components directly to the switch. Once configured, the Dahua switch resides on Layer 2 of the network and supports a variety of network standards including 802.3, 802.3u, 802.3X, 802.3af, and 802.3at. Furthermore, this PoE switch is capable of transmitting power and data at distances of up to 820' to give you maximum flexibility when configuring your devices. -
- Layer 2 commercial switch
- Long-distance PoE (LD PoE) transmits power and data 820'
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
- Conforms to IEEE802.3af and IEEE803.3at
- Supports Hi-PoE (60W)
- MAC auto-learning and aging; 16K MAC address capacity
- MDI/MDIX self-adaptation
- Metal enclosure
UPC: 819290023916 In the Box Dahua Technology DH-PFS3010-8ET-96 10-Port Fast Ethernet PoE+ Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-PFS3010-8ET-96 10-Port Fast Ethernet PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-PFS3010-8ET-96 Specs | | | Ports | 8 x 10/100 Mb/s Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Layer Services Supported | Layer 2 Support | | Supported Protocols | Auto-MDIX/MDI | | MAC Address Table Size | 16K | | | | Supported IEEE Standards | 802.3, 802.3af, 802.3at, 802.3u, 802.3x | | | | Forwarding Rate | 4.17 Mpps | | Switching Bandwidth | 5 Gb/s | | Packet Buffer | 4 MB | | | | DC Input Power | 48 to 57 VDC | | PoE Power Budget | 96 W | | PoE per Port | 30 to 60 W | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Certifications | CE, FCC, UL, as per Manufacturer | | | | Dimensions | 7.48 x 3.94 x 1.18" / 190 x 100 x 30 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.655 lb | | Box Dimensions (LxWxH) | 10.5 x 9.6 x 2.9" |
