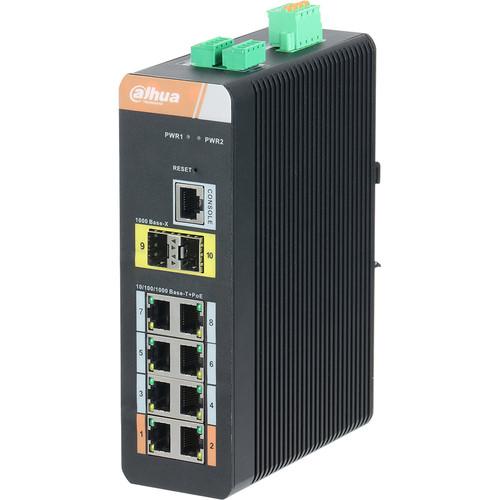

User Manual for Dahua Technology DH-PFS4210-8GT-DP 10-Port Gigabit PoE Industrial Managed Switch Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-PFS4210-8GT-DP 10-Port Gigabit PoE
- Product category: Network Switches, Bridges & Hubs Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Switches, Bridges & Hubs
|
User manual for the Dahua Technology DH-PFS4210-8GT-DP 10-Port Gigabit PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description With support for a variety of Layer 2 features including VLAN, link aggregation, IGMP snooping, and much more, the DH-PFS4210-8GT-DP 10-Port Gigabit PoE+ Industrial Managed Switch from Dahua allows network administrators to easily manage nearly any aspect of their network. This switch comes equipped with eight Gigabit Ethernet PoE+ ports, each with a minimum PoE power offering of 30W, and two of the ports support up to 60W of power. In addition to the Gigabit ports, this switch also comes equipped with dual Fiber ports, one RS232 port, and dual RS485 ports. Once installed, the industrial managed switch is able to withstand a dusty environment thanks to the IP40 full metal enclosure. Furthermore, the PoE switch features dual power inputs providing a backup power source to help mitigate network downtime in case of a power failure. - Features
-
- Layer 2 managed industrial PoE switch
- Supports IEEE802.3af/at and Hi-PoE (60W) standard
- Supports STP/RSTP/MSTP for network redundancy
- Supports rich L2 features including VLAN, Link Aggregation, IGMP Snooping, ROMN, ACL, QoS, etc
- Supports Web, SNMP and CLI management
- IP40 full metal enclosure, fully-sealed, and dustproof design
- Dual power input for power redundancy
- Wide working temperature from -40 to 167°F
- Service Characteristics
- System
• Username / password: admin/admin
• IP Address :192.168.1.110/24
MAC Address Table
• 8K
NTP
• Support
DHCP
• Support DHCP client/server
• Support DHCP snooping
VLAN
• 802.1Q
Port Aggregation
• Manual aggregation/LACP
Port Mirroring
• Support many-to-one port mirroring
Flow Control
• Support half-duplex based on back pressure type control
• Support full duplex based on PAUSE frame
Multicast
• IGMP Snooping v1/v2/v3
• Security
• Support users management
• Support SSH
• Support Https
• Support SNMP V1/V2/V3
• Support ROMN
• Support ACL
• Support IP source guard
• Support ARP inspection
• Support 802.1x
• Support loop protection
Spanning Tree
• STP/RSTP/MSTP
LLDP
• Support
Quality of Service
• Support QoS base on CoS/DPL/PCP/DEI
• Each port support 8 output queue
• Support port shaping
• Support port tag remarking
• Support QoS based on DSCP
System Maintenance
• Support the configuration file upload/download
• Support firmware upgrade
• Support system logs
Network Management
• WEB(http protocol), SNMP, CLI In the Box Dahua Technology DH-PFS4210-8GT-DP 10-Port Gigabit PoE+ Industrial Managed Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-PFS4210-8GT-DP 10-Port Gigabit PoE Industrial Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-PFS4210-8GT-DP Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit SFP PoE+ (Type 2)
2 x RS485 | | | | Layer Services Supported | Layer 2 Support | | Supported Protocols | IGMP Snooping
Link Aggregation
Port Mirroring | | MAC Address Table Size | 8K | | | | Security Features | DHCP Snooping | | SNMP Support | 1, 2, 3 | | | | Supported IEEE Standards | 802.3af, 802.3at | | | | Forwarding Rate | 14.88 Mpps | | Switching Bandwidth | 28 Gb/s | | Priority Queues | 80 | | Packet Buffer | 4 Mb | | | | Power Draw | 6.0 W (Idle)
120.00 W (Active) | | DC Input Power | 9 to 57 VDC | | PoE Power Budget | 120 W | | PoE per Port | 30 to 60 W | | | | Operating Temperature | -40 to 167°F / -40 to 75°C | | | | Material of Construction | Metal | | Dimensions | 6.89 x 5.28 x 2.09" / 175 x 134 x 53 mm | | Weight | 2.6 lb / 1.2 kg |
