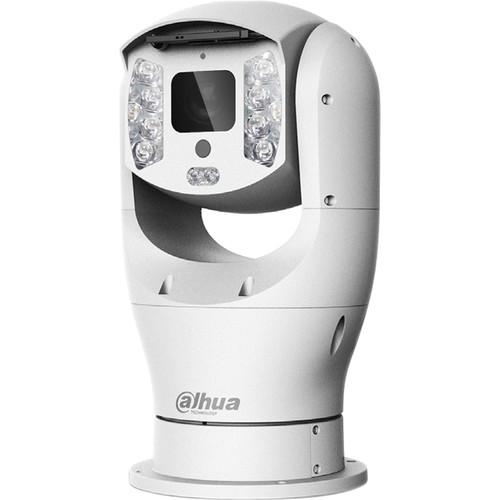

User Manual for Dahua Technology DH-PTZ19240VN-IRB-N 2MP Outdoor Corrosion-Resistant Network PTZ Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-PTZ19240VN-IRB-N 2MP Outdoor Corrosion-Resistant
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology DH-PTZ19240VN-IRB-N 2MP Outdoor Corrosion-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DH-PTZ19240VN-IRB-N 2MP Outdoor Corrosion-Resistant Network PTZ Camera from Dahua Technology uses a 1/2.8" STARVIS progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Eight IR LEDS provide up to 984' of night vision. The 4.5-180mm varifocal lens delivers a 67.5-1.7° horizontal field of view. PTZ functionality offers endless panning, endless tilting, and 40x optical zoom. Two-way audio communication is possible thanks to audio I/O ports. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This corrosion-resistant camera is equipped with a built-in heater. It is housed in an IP68- and NEMA 4X-rated metal enclosure that is suitable for outdoor use. - Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection, people counting, heat mapping, and PTZ auto-tracking
- Starlight technology for low-light applications
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- Predictive Focus Algorithm (PFA) improves zoom accuracy and decreases focus time
- 40x optical and 16x digital zoom
- Auto and manual focus control
- 3.94 to 39.37" close focus distance
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- Ultra wide dynamic range (140 dB), backlight compensation, and highlight compensation
- White balance modes include auto, ATW, indoor, outdoor, and manual
- Auto and manual gain control
- Privacy masking for up to 24 areas
- Advanced features include motion detection, ROI (region of interest), EIS (electronic image stabilization), defog, and smart wiper
- Seven alarm inputs and 2 alarm outputs
- Three-pole extension cable provides audio I/O
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Records to local PC, NAS, and microSD edge storage
- IP68- and NEMA 4X-rated metal enclosure that is suitable for outdoor use
- ±25% input voltage tolerance and 8kV lightning protection
- DORI Distance
-
- 8100' / 2469m (detect)
- 3241' / 988m (observe)
- 1621' / 494m (recognize)
- 810' / 247m (identify)
- PTZ Functionality
-
- Endless panning
- Endless tilting
- -55 to 223° effective tilt angle
- 180° auto flip
- 0.1 to 120°/s manual pan control speed
- 0.1 to 60°/s manual tilt control speed
- 120°/s preset pan speed
- 60°/s preset tilt speed
- 300 presets
- 5 pattern modes, 8 tour modes, auto pan, auto scan
- Proportional pan/tilt speed to zoom ratio
- Auto restore to previous PTZ and lens status after power failure
- Activate preset, scan, tour, and pattern if there is no command in the specified period
- DH-SD, Pelco P/D (auto recognition) protocols
UPC: 819290021332 In the Box Dahua Technology DH-PTZ19240VN-IRB-N 2MP Outdoor Corrosion-Resistant Network PTZ Camera with Night Vision & Heater Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-PTZ19240VN-IRB-N 2MP Outdoor Corrosion-Resistant Network PTZ Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-PTZ19240VN-IRB-N Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.5 to 180mm | | Maximum Aperture | f/1.2 - f/3.5 | | Zoom | Optical: 40x
Digital: 16x | | Lens Field of View | Horizontal: 67.5 to 1.7° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (8.19 Mb/s H.264) | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.722.1, G.726, G.729, MP2L2, PCM | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Drastic Focus Change/Loss, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection, Heat Mapping, People Counting, Auto-Tracking | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360° at 120°/s
Remote Tilt: 360° at 60°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC
1 x 9-Pin Serial (RS-485) | | IR Range | 984.25' / 300 m | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, PoE 802.3bt (60 W) | | Power Consumption | 35 W
60 W (With Heater) | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -58 to 158°F / -50 to 70°C | | Operating Humidity | 0 to 95% | | IP Rating | IP68 | | Dimensions | H: 16.0 x W: 9.2 x L: 8.1" / H: 405.5 x W: 234.0 x L: 205.0 mm | | Weight | 21.6 lb / 9.8 kg |
