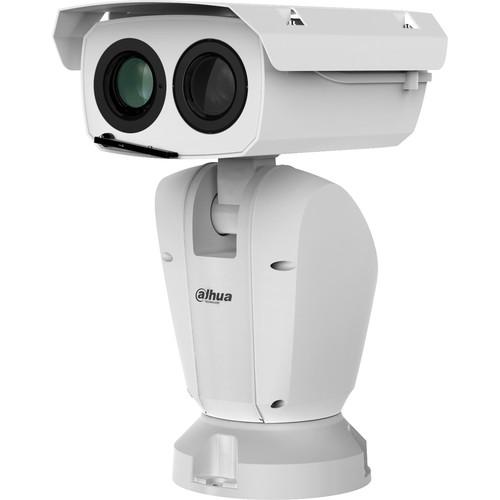

User Manual for Dahua Technology DH-TPC-PT8420A-B 2MP Outdoor Hybrid Network PTZ Camera with Heater & 100mm Thermal Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-TPC-PT8420A-B 2MP Outdoor Hybrid
- Product category: Security Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Security Cameras
|
User manual for the Dahua Technology DH-TPC-PT8420A-B 2MP Outdoor Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DH-TPC-PT8420A-B 2MP Outdoor Hybrid Network Pan & Tilt Camera from Dahua Technology uses a 1/1.9" progressive scan CMOS sensor to capture traditional 2MP resolution video. In addition, it is equipped with an uncooled VOx microbolometer sensor to capture 400 x 300 resolution thermal video. Nine IR LEDs provide up to 492' of illumination in low-light conditions. The focus-free 100mm fixed thermal lens delivers a 3.9° horizontal field of view. The 6-180mm varifocal optical lens delivers a 59 to 2.4° horizontal field of view and 30x optical zoom. The camera features endless panning and a -90 to 40° tilt range. Two-way audio communication is possible thanks to an audio input and output. A built-in memory card slot accepts microSD cards up to 256GB (available separately).
This camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. The camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. It is equipped with a built-in heater. - Suitable for forest fire prevention
- Built-in fire detection functionality capable of detecting fires from long distances
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects
- Uncooled VOx thermal sensor
- Starlight technology for low-light applications
- <40 mK thermal sensitivity
- H.264 and MJPEG video compression
- Unicast and multicast streaming methods
- Fourteen thermal color palettes
- Image settings include brightness, sharpness, ROI, AGC, FFC, and 3D-DNR
- ROI (region of interest) for 4 zones
- Motion detection for 4 zones (rectangular)
- Privacy masking for 4 areas (rectangular)
- Seven alarm inputs and two alarm outputs
- Compatible with Internet Explorer 11, Chrome 45, Firefox 52, iOS, Android, SmartPSS, and DSS
- Local PC for instant recording, microSD card up to 256GB, and NAS edge storage
- ±15% input voltage tolerance and 6kV lightning protection
- Pan & Tilt Functionality
-
- Endless panning
- 0.1 to 160°/s manual pan speed
- 0.1 to 160°/s preset pan speed
- -90 to 40° tilt range
- 0.1 to 60°/s manual tilt speed
- 0.1 to 60°/s preset tilt speed
- 300 presets
- PTZ modes include five auto scans, eight tours, five patterns, and auto pan
- Human-oriented focal length and speed adaptation
- Auto restore to previous PTZ and lens status after power failure
- Activate preset, scan, tour, or pattern if there is no command in the specified period
- DH-SD, Pelco P/D (auto recognition)
- DRI Range (Human, 5.9 x 1.64')
-
- 9843' (detection)
- 2461' (recognition)
- 1247' (identification)
- DRI Range (Vehicle, 7.5 x 7.5')
-
- 28,871' (detection)
- 7546' (recognition)
- 3937' (identification)
In the Box Dahua Technology DH-TPC-PT8420A-B 2MP Outdoor Hybrid Network PTZ Camera with Heater & 100mm Thermal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-TPC-PT8420A-B 2MP Outdoor Hybrid Network PTZ Camera with Heater & 100mm Thermal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-TPC-PT8420A Specs | | | Camera Type | Thermal | | Image Sensor | Uncooled VOx Microbolometer | | Effective Pixels (H x V) | 400 x 300 | | Pixel Size | 17 µm | | Thermal Sensitivity (NETD) | <40 mk at f> | | Spectral Range | 7 to 14 µm | | Image Settings | Brightness, Sharpness, ROI, AGC, FFC, 3D-DNR | | Color Palette | 14 Color Palettes including Whitehot, Blackhot, Ironrow, Icefire, Fusion, Rainbow, Globow, Iconbow1, Iconbow2 | | | | Type | Fixed Thermal Lens | | Focus Control | Athermalized, Focus-Free | | Focal Length | 100mm | | Field of View | Horizontal: 3.9°
Vertical: 2.9° | | | | Type | Visible | | Image Sensor | 1/1.9" Sony CMOS | | Effective Pixels (H x V) | 1944 x 1092 | | Electronic Shutter Speed | 1/30,000 to 1 Seconds | | Minimum Illumination | Color: 0.001 Lux at f/1.5
B&W: 0.0001 Lux at f/1.5 | | S/N Ratio | >55 dB | | IR Range | 492' / 150 m | | IR Control | On/Off (Auto, Manual) | | Number of IR LEDs | 9 | | | | Type | Optical | | Focal Length | 6-180mm | | Maximum Aperture | f/1.5-4.3 | | Field of View | Horizontal: 59 to 2.4° | | Optical Zoom | 30x | | Focus Control | Auto, Manual | | Close Focus Distance | 0.33 to 3.28' / 100 to 1000 mm | | | | Range | Pan: 0 to 360° Endless
Tilt: -90 to 40° | | Manual Control Speed | Pan: 0.1 to 160°/s
Tilt: 0.1 to 60°/s | | Preset Speeds | Pan: 0.1 to 160°/s
Tilt: 0.1 to 60°/s | | Presets | 300 | | PTZ Mode | 5 Auto Scans, 8 Tours, 5 Patterns, Auto Pan | | Speed Setup | Human-Oriented Focal Length, Speed Adaptation | | Power Up Action | Auto Restore to Previous PTZ and Lens Status After Power Failure | | Idle Motion | Activate Preset, Scan, Tour, or Pattern if There's No Command in the Specified Period | | Protocols | DH-SD, Pelco P/D (Auto Recognition) | | | | Compression | H.264, MJPEG | | Frame Rate | Main Stream
Thermal: 1280 x 1024 (Default), 1280 x 720 at 30/25 fps
Visible: 1920 x 1080 (Default), 1280 x 720 at 30/25 fps
Sub Stream
Thermal: 640 x 512 (Default), 320 x 256 at 30/25 fps
Visible Light: CIF (Default), D1 at 30/25 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 640 to 8192 kb/s | | Day/Night | IR Cut Filter, Color, B&W | | BLC | BLC, HLC, WDR | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, On (4 Zones, Rectangular) | | Region of Interest | Off, On (4 Zones) | | Defog | Off, On | | Digital Zoom | 19x | | Flip | 180° | | Mirror | Off, On | | Privacy Masking | Off, On (4 Areas, Rectangular) | | | | Compression | G.711A, G.711Mu, AAC | | | | Intelligent Video Analytics | Intelligent Video System (IVS)
Tripwire
Intrusion
Abandoned/Missing Object
Fire Detection and Alarm | | | | Ethernet | 100M RJ45 | | Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | | Interoperability | ONVIF Profiles S & G, PSIA, CGI | | Streaming Method | Unicast, Multicast | | Maximum User Access | 10/20 Users | | Edge Storage | microSD Card Slot, Maximum 256 GB
NAS
Local PC for Instant Recording
Memory Status Display: Normal, Error, Active, Formatting, Lock | | Web Viewer | Internet Explorer 11, Chrome 45, Firefox 52 | | Management Software | SmartPSS, DSS | | Mobile OS Support | Android, iOS | | | | Video Interface | 1.0 V p-p, 75 Ohms, NTSC/PAL (HD-CVI Optional) | | Audio Interface | 1 x Audio Input
1 x Audio Output | | RS-485 | 1 x RS-485 Port | | Alarm | 7 x Alarm Inputs
2 x Alarm Outputs | | | | Power Supply | 24 VAC, 5 A ±15% | | Power Consumption | Maximum 30 W, 70 W (with Heater and IR LEDs On) | | Operating Conditions | -40 to 158°F / -40 to 70°C
<95% RH
Initiate Startup Above -40°F / -40°C | | Storage Conditions | -40 to 158°F / -40 to 70°C
<95% RH | | IP Rating | IP67 | | Casing | Metal | | Certifications | CE (EN 60950:2000), FCC (FCC Part 15 Subpart B) | | Dimensions | 13.6 x 10 x 18.5" / 345 x 252 x 470 mm | | Weight | 28.66 lb / 13 kg |
