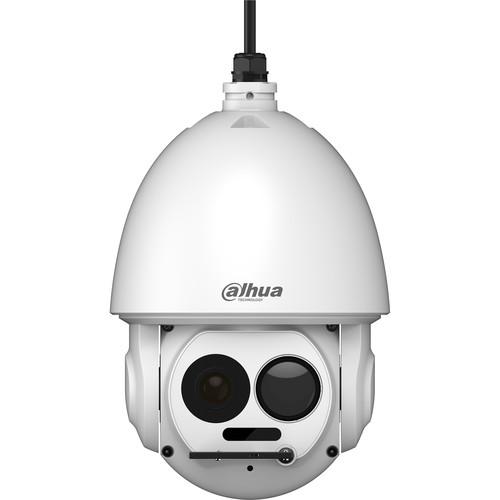

User Manual for Dahua Technology DH-TPC-SD8420N-B 2MP Outdoor Hybrid Network PTZ Camera with Night Vision, Heater & 50mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology DH-TPC-SD8420N-B 2MP Outdoor Hybrid
- Product category: Security Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Security Cameras
|
User manual for the Dahua Technology DH-TPC-SD8420N-B 2MP Outdoor Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DH-TPC-SD8420N-B 2MP Outdoor Hybrid Network PTZ Camera from Dahua Technology uses a 1/1.9" progressive scan CMOS sensor to capture 2MP resolution video. In addition, it is equipped with an uncooled VOx microbolometer sensor to capture 400 x 300 resolution video. Four IR LEDs provide up to 492' of night vision. The focus-free thermal 50mm fixed lens delivers a 7.7° horizontal field of view, while the 6-180mm varifocal lens delivers a 59 to 2.4° horizontal field of view. The camera features endless panning, a -10 to 90° tilt range, and 30x optical zoom. Two-way audio communication is possible thanks to an audio input and output. A built-in memory card slot accepts microSD cards up to 256GB (available separately).
This PTZ camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. The camera is housed in an IP66-rated metal enclosure that is suitable for outdoor use. It is equipped with a built-in heater. - Suitable for forest fire prevention
- Built-in fire detection functionality capable of detecting a rapid temperature rise in a short period of time & issuing alarms for potential fire events from long distances
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects
- Uncooled VOx thermal sensor
- Starlight+ technology for low-light applications
- <40 mK thermal sensitivity
- H.264 and MJPEG video compression
- Unicast and multicast streaming methods
- Fourteen thermal color palettes
- Image settings include brightness, sharpness, ROI, AGC, FFC, and 3D-DNR
- ROI (region of interest) for 4 zones
- Motion detection for 4 zones (rectangular)
- Privacy masking for 4 areas (rectangular)
- Seven alarm inputs and two alarm outputs
- Compatible with Internet Explorer 11, Chrome, Firefox, iOS, Android, SmartPSS, and DSS
- Local PC for instant recording, microSD card up to 256GB, and NAS edge storage
- ±15% input voltage tolerance and 6kV lightning protection
- PTZ Functionality
-
- Endless panning
- 0.1 to 200°/s manual pan speed
- 0.1 to 240°/s preset pan speed
- -10 to 90° tilt range
- 0.1 to 120°/s manual tilt speed
- 0.1 to 200°/s preset tilt speed
- 300 presets
- PTZ modes include five patterns, eight tours, auto pan, and auto scan
- Human-oriented focal length and speed adaptation
- Auto restore to previous PTZ and lens status after power failure
- Activate preset, scan, tour, or pattern if there is no command in the specified period
- DH-SD, Pelco P/D (auto recognition)
- DRI Range (Human, 5.9 x 1.64')
-
- 5577' (detection)
- 1411' (recognition)
- 722' (identification)
- DRI Range (Vehicle, 7.5 x 7.5')
-
- 16,404' (detection)
- 4593' (recognition)
- 2297' (identification)
In the Box Dahua Technology DH-TPC-SD8420N-B 2MP Outdoor Hybrid Network PTZ Camera with Night Vision, Heater & 50mm Lens Power Adapter Installation Accessory Bag Liomited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DH-TPC-SD8420N-B 2MP Outdoor Hybrid Network PTZ Camera with Night Vision, Heater & 50mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-TPC-SD8420 Specs | | | Camera Type | Thermal | | Image Sensor | Uncooled VOx Microbolometer | | Effective Pixels (H x V) | 400 x 300 | | Pixel Size | 17 µm | | Thermal Sensitivity (NETD) | <40 mk at f> | | Spectral Range | 7 to 14 µm | | Image Settings | Brightness, Sharpness, ROI, AGC, FFC, 3D-DNR | | Color Palette | 14 Color Palettes including Whitehot, Blackhot, Ironrow, Icefire, Fusion, Rainbow, Globow, Iconbow1, Iconbow2 | | | | Type | Fixed Thermal Lens | | Focus Control | Athermalized, Focus-Free | | Focal Length | 50mm | | Field of View | Horizontal: 7.7°
Vertical: 5.8° | | | | Type | Visible Light | | Effective Pixels (H x V) | 1944 x 1092 | | Electronic Shutter Speed | 1/30,000 to 1 Second | | Minimum Illumination | Color: 0.001 Lux at f/1.5
B&W: 0.0001 Lux at f/1.5
B&W: 0 Lux with IR | | S/N Ratio | >55 dB | | IR Range | 492.17' / 150 m | | IR Control | On/Off (Auto, Manual) | | Number of IR LEDs | 4 | | | | Type | Visible Light | | Focal Length | 6-180 mm | | Maximum Aperture | f/1.5-4.3 | | Field of View | Horizontal: 59 to 2.4° | | Optical Zoom | 30x | | Focus Control | Auto, Manual | | Close Focus Distance | 0.33 to 3.28' / 100 to 1000 mm | | | | Range | Pan: 0 to 360° Endless
Tilt: -10 to 90° | | Manual Control Speed | Pan: 0.1 to 200°/s
Tilt: 0.1 to 120°/s | | Preset Speeds | Pan: 0.1 to 240°/s
Tilt: 0.1 to 200°/s | | Presets | 300 | | PTZ Mode | 5 Patterns, 8 Tours, Auto Pan, Auto Scan | | Speed Setup | Human-Oriented Focal Length, Speed Adaptation | | Power Up Action | Auto Restore to Previous PTZ and Lens Status After Power Failure | | Idle Motion | Activate Preset, Scan, Tour, or Pattern if There's No Command in the Specified Period | | Protocols | DH-DS, Pelco P/D (Auto Recognition) | | | | Compression | H.264, MJPEG | | Frame Rate | Main Stream
Thermal: 1280 x 1024 (Default) or 1280 x 720 at 30 fps
Visible Light: 1920 x 1080 (Default) or 1280 x 720 at 30 fps
Sub Stream
Thermal: 640 x 512 (Default) or 320 x 256 at 30 fps
Visible Light: CIF (Default) or D1 at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 640 to 8192 kb/s | | Day/Night | IR Cut Filter, Color, B&W | | BLC | BLC, HLC, WDR | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, On (4 Zones, Rectangular) | | Region of Interest | Off, On (4 Zones) | | Defog | On, Off | | Digital Zoom | 19x | | Flip | 180° | | Mirror | Off, On | | Privacy Masking | Off, On (4 Areas, Rectangular) | | | | Compression | G.711a, G.711Mu, AAC | | | | Intelligent Video Analytics | Intelligent Video System (IVS)
Tampering
Memory Card Error
Network Error
Unauthorized Access
Tripwire
Intrusion
Abandoned/Missing Object
Fire Detection and Alarm | | | | Ethernet | 100M RJ45 | | Network Protocols | IPv4/IPv6, HTTP. HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | | Interoperability | ONVIF Profiles S & G, PSIA, CGI | | Streaming Method | Unicast, Multicast | | Maximum User Access | 10/20 Users | | Edge Storage | NAS
Local PC for Instant Recording
microSD Card Slot, Maximum 256 GB
Memory Status Display: Normal, Error, Active, Formatting, Lock | | Web Viewer | Internet Explorer 11, Chrome, Firefox | | Management Software | SmartPSS, DSS | | Mobile OS Support | Android, iOS | | | | Video Output | 1.0 V p-p, 75 Ohms (For Camera Installation) | | Audio | 1 x RCA Audio Input
1 x RCA Audio Output | | RS-485 | 1 x RS-485 Port | | Alarm | 7 x Alarm Inputs
2 x Alarm Outputs | | | | Power Supply | 24 VAC, 3 A (±15%) | | Power Consumption | Maximum 17 W, 38 W (with Heater and IR On) | | Operating Conditions | -40 to 158°F / -40 to 70°C
<95% RH
Initiate Startup Above -40°F / -40°C | | Storage Conditions | -40 to 158°F / -40 to 70°C
<95% RH | | IP Rating | IP66 | | Casing | Metal | | Certifications | Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B | | Dimensions | Ø9.44 x 15.04" / Ø239.7 x 382 mm | | Weight | 15 lb / 6.8 kg |
