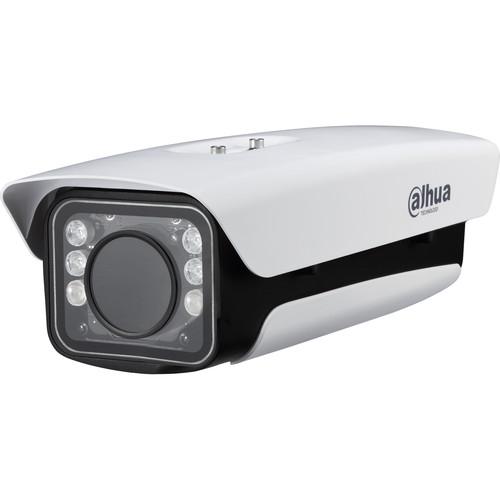

User Manual for Dahua Technology DHI-ITC237-PU1B-IR 2MP Outdoor Network License Plate Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology DHI-ITC237-PU1B-IR 2MP Outdoor Network
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology DHI-ITC237-PU1B-IR 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The DHI-ITC237-PU1B-IR 2MP Outdoor Network License Plate Bullet Camera from Dahua Technology is a 1/2.8" 2MP Starvis R CMOS sensor camera that can record 1920 x 1080 resolution video at 25/30 fps. This camera has a 5-50mm lens for 10x optical zoom. It features H.265, H.264M, H.264H, and H.264B video compression, adjustable white balance, gain control, an auto day and night ICR, noise reduction (3D), and a 140 dB dynamic range. The microSD slot supports up to 64GB of storage. This camera has six IR LEDs with a maximum range of 131', as well as two audio inputs and one audio output. The camera can be powered via PoE+, simplifying installation and minimizing cable runs. - Embedded License Plate Recognition Algorithm
- Built-in intelligent video analytics allow the camera to detect and recognize a moving vehicle's plate number at speeds under 50 mph. This ANPR camera will take a snapshot of approaching or departing vehicles for plate cutout and vehicle overview pictures
- Embedded White List
- The camera can support a white list of 10,000 license plate records.
- Wide Dynamic Range
- 140 dB True WDR (Wide Dynamic Range) supplies vivid plate pictures in intense contrast lighting conditions. It optimizes both the bright and dark areas of a scene at the same time to provide usable video in conditions that change quickly.
- Environmental
- The camera has an IP66 rating, which makes it suitable for outdoor applications.
UPC: 816116028247 In the Box Dahua Technology DHI-ITC237-PU1B-IR 2MP Outdoor Network License Plate Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DHI-ITC237-PU1B-IR 2MP Outdoor Network License Plate Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-ITC237-PU1B-IR Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | CS | | Focal Length | 5 to 50mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 10x | | Lens Field of View | Horizontal: 5.6 to 50°
Vertical: 4.2 to 37.5° | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/10000 to 1/50 Seconds | | | | Streaming Resolution | 1920 x 1080 at 25/30 fps | | Supported Video Compression | H.264, H.265 | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Supported Protocols | DHCP, DNS, HTTP, IPv4/v6, NTP, TCP, UDP | | | | Application Programming Interface (API) | CGI, ONVIF | | Analytics | License Plate Recognition | | Event Trigger | No | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 2 | | I/O Connections | 1 x BNC
1 x RJ45 | | IR Illuminators | 6 x 850 nm | | IR Range | 131.23' / 40 m | | Video Management Software | DSS, PMS, EMS | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | PoE 802.3at (30 W) | | Power Consumption | PoE+: 17 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | Dimensions | H: 17.6 x W: 9.4 x L: 9.2" / H: 447.0 x W: 240.0 x L: 233.0 mm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 18.0 x 10.0 x 9.0" |
