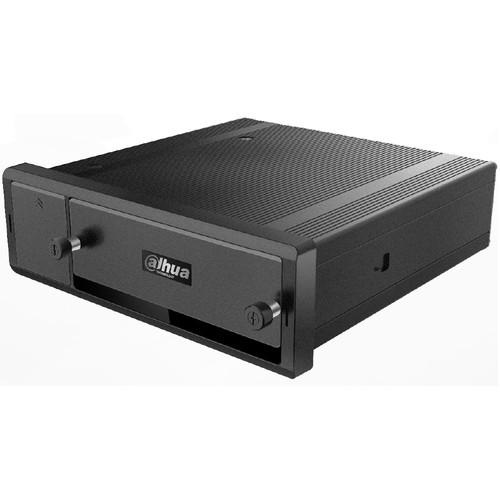

User Manual for Dahua Technology DHI-MCVR6208-G 8-Channel 1080p Mobile HD-CVI DVR with No HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology DHI-MCVR6208-G 8-Channel 1080p Mobile
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
|
User manual for the Dahua Technology DHI-MCVR6208-G 8-Channel 1080p Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record and monitor the video feeds from up to eight HD-CVI or SD analog cameras with the DHI-MCVR6208-G Mobile DVR from Dahua Technology at resolutions up to 1080p. Designed for use by transit agencies, this mobile DVR operates across various transportation networks and uses M12 aviation connectors to ensure sturdy and reliable camera connections. It provides simultaneous VGA and TV video outputs, as well as seven alarm inputs, two relay outputs, and two-channel audio in/out connections.
The DHI-MCVR6208-G supports real-time vehicle location tracking and monitoring, and can upload GPS information with recorded video to the network. Versatile and adaptable, it supports connection to various separately available accessories including card readers, fuel sensors, and emergency buttons. The recorder is certified EN 50155 and conforms to ISO16750 for mobile use. It suited for use on city buses, school buses, taxis, police cars, trains, and trucks. - Supports HD-CVI and SD analog video input
- Eight-channel 1080p real-time recording
- VGA and TV simultaneous video output channels
- 2 x USB 3.0 and 1 x USB 2.0 ports
- M12 aviation connectors for increased signal stability
- Built-in high-accuracy GPS module
- Multiple network monitoring applications including Web Views, CMS, and DSS
- Can be programmed to record if motion is detected
- Can be programmed to record on a schedule
- Anti-Vibration
- Built from shock-absorbing material, the hard disk enclosure is designed to withstand vibration, allowing for normal operation in extreme mobile applications.
- Wide-Range Power Supply
- Supporting voltages from 6 to 36 VDC, the DHI-MCVR6208-G is designed to handle the voltage output of vehicle batteries. Its wide-range voltage support protects the recorder from fluctuating power output from the vehicle battery during operation.
- GPS
- Built into the DHI-MCVR6208-G is a GPS module that receives location information and uploads the vehicle's position to a VMS. The VMS can plot the position on a map so the position and the path of vehicle can be monitored.
- Multiple Ports
- The DHI-MCVR6208-G provides CAN, RS-232, RS-485, and I/O ports for connection to separately available accessories such as card readers, fuel sensors, and emergency buttons. Information collected via these interfaces can be uploaded to VMS along with video, audio, alarm, and location information.
UPC: 819290024838 In the Box Dahua Technology DHI-MCVR6208-G 8-Channel 1080p Mobile HD-CVI DVR with No HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology DHI-MCVR6208-G 8-Channel 1080p Mobile HD-CVI DVR with No HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-MCVR6208-G Specs | | | Main Processor | Embedded Microprocessor | | Operating System | Embedded Linux | | | | Video Inputs | 8 x M12, A-Coded
Audio In Is Disabled if an Analog Camera Is Connected | | Audio | 2-Channel Input
2-Channel Output | | | | Interface | 1 x VGA
2 x TV | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600 | | Multi-Screen Display | 1/4/8/9 | | Privacy Masking | 4 Rectangular Zones per Camera | | On-Screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, and Recording | | | | Video Compression | H.264 | | Audio Compression | G.711 | | Resolution | 8 Channels at 1080p, Real Time | | Bit Rate | 48 to 8192 kb/s per Channel | | Recording Modes | Manual, Schedule (Regular, Continuous), Motion Detection, and Stop | | Recording Intervals | 1 to 120 Minutes (Default 60 Minutes)
Pre-Record: 1 to 30 Seconds
Post-Record: 10 to 300 Seconds | | | | Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips | | Video Detection | Motion Detection, Video Loss, and Camera Blank
MD Zones: 396 (22 x 18) | | Alarm Input | 7 Channels (2 Channels Impulse Input) | | Relay Output | 1 x Digital Output
1 x 12 V Control Output | | | | Playback | 1/4 | | Search Modes | Time/Date, Alarm, Motion Detection, and Exact Search (Accurate to 1 Second) | | Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom | | Backup Modes | USB Device and Network | | | | Internal HDD | 2 x SATA Ports
HDD Available Separately | | Memory Slots | 1 x microSD Card Slot, Supports up to 128 GB
microSD Card Available Separately | | | | Interface | 1 x RJ45 10/100/1000 Mb/s | | GPS | Built-In High Accuracy GPS Module | | Network Function | TCP/IP, UDP, DDNS, FTP, Email, Alarm Server | | Max. User Access | 128 Users | | Mobile Operating Systems | iOS and Android | | | | USB | 2 x USB 3.0 Ports, Front
1 x USB 2.0 Ports, Rear | | Serial | 2 x RS-232 Ports
2 x RS-485 Ports | | CAN | Supported | | Heater | Available Separately | | | | Power Supply | 6-36 V | | Power Consumption | <12 W, without HDD | | | | Operating Conditions | Without Heater: 14 to 149°F / -10 to 65°C
With Optional Heater: -22 to 149°F / -30 to 65°C | | Storage Conditions | -220 to 158°F / -30 to 70°C
0 to 90% RH | | | | Safety | UL | | Mobile Applications | EN 50155, ISO16750 | | | | Dimensions | 7.1 x 7.5 x 2.0" / 18 x 19 x 5 cm | | Weight | 4.8 lb / 2.2 kg, without HDD |
