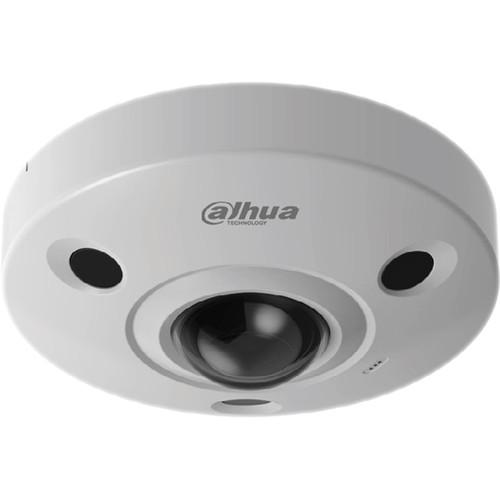

User Manual for Dahua Technology Fisheye Series A83AR6 4K UHD Outdoor HD-CVI Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Fisheye Series A83AR6 4K
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Fisheye Series A83AR6 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the Fisheye Series A83AR6 4K UHD Outdoor HD-CVI Dome Camera with Night Vision from Dahua Technology. The camera features an 8MP 1/2" progressive scan CMOS sensor to transmit 3840 x 2160 resolution video at up to 15 fps, and 2560 x 1440 resolution video at up to 30 fps using HD-CVI technology. 3 IR LEDs deliver up to 49' of night vision. The 2.5mm fixed lens features a wide 180° horizontal field of view. Audio is available thanks to a built-in microphone. Wide dynamic range (WDR), backlight compensation (BLC), highlight compensation (HLC), and 2D/3D noise reduction further aid in producing accurate images in varying lighting conditions. This camera is housed in an IP67- and IK10-rated aluminum enclosure, making it suitable for outdoor use in areas at risk of vandalism - HD-CVI technology simultaneously transmits video, audio, and data signals over one coax cable
- Dewarping modes and LDC (lens distortion control) deliver distortion-free fisheye images
- Long distance transmission without loss of video quality via RG-59 or RG-6 cabling
- 120 dB wide dynamic range
- Two alarm inputs and one alarm output
- IP67- and IK10-rated aluminum enclosure suitable for outdoor use in areas at risk of vandalism
UPC: 816116029794 In the Box Dahua Technology Fisheye Series A83AR6 4K UHD Outdoor HD-CVI Dome Camera with Night Vision 3 x Expansion Bolts 3 x ST3 Self-Tapping Screws Multi-Purpose Tool Ceiling Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Fisheye Series A83AR6 4K UHD Outdoor HD-CVI Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A83AR6 Specs | | | Image Sensor | 1/2" CMOS | | Effective Pixels | 3840 x 2160 (8 MP) | | Scanning System | Progressive | | Electronic Shutter Speed | 1/3 to 1/100,000 seconds | | Minimum Illumination | Color: 0.01 lux at f/2.0 (30 IRE)
B&W: 0 lux (IR on)
| | S/N Ratio | More than 65 dB | | IR Range | 49.2' (15 m) | | IR Control | Auto, manual | | Number of IR LEDs | 3 | | | | Lens Type | Fixed lens, fixed iris | | Mount Type | Board-in | | Focal Length | 2.5mm | | Maximum Aperture | f/2.0 | | Field of View | No LDC (Lens Distortion Correction):
Horizontal: 180°
Vertical: 100°
LDC Vertical Mode:
Horizontal: 176°
Vertical: 73°
LDC Vertical/Horizontal Mode:
Horizontal: 170°
Vertical: 88° | | Close Focus Distance | 23.6" (600 mm) | | DORI Distance | Detect (8 ppf): 174' (53 m)
Observe (19 ppf): 69' (21 m)
Recognize (38 ppf): 36' (11 m)
Identify (76 ppf): 16' (5 m)
| | | | Resolution | 8 MP (3840 x 2160), 4 MP (2560 x 1440) | | Frame Rate | 3840 x 2160 at 15 fps
2560 x 1440 at 30 fps
| | Video Output | 1 x BNC HD-CVI 4K channel
1 x BNC CVBS channel
| | Transmission Distance | RG-59/U Coax:
1080p: 1640.4' (500 m)
4 MP: 1640.4' (500 m)
4K: 1640.4' (500 m)
RG-6/U Coax
1080p: 2625' (800 m)
4 MP: 2297' (700 m)
4K: 2297' (700 m)
Cat 5e UTP (Balun Required, available separately):
1080p: 984.3' (300 m)
4 MP: 984.3' (300 m)
4K: 984.3' (300 m)
| | Day/Night | Auto IR cut filter, manual | | OSD Menu | Multi-language | | BLC | BLC, HLC, WDR | | Wide Dynamic Range | True WDR (120 dB) | | Gain Control | AGC | | Noise Reduction | 2D/3D | | White Balance | Auto, manual | | Smart IR | Auto, manual | | | | Audio Input | Built-in microphone | | Alarm | Input: 2 channels
Output: 1 channel
| | | | Safety | UL60950-1+CAN/CSA C22.2
No.60950-1
| | Electromagnetic Compatibility | EN55032, EN55024, EN50130-4
CFR 47 FCC Part 15 Subpart B
ANSI C63.4-2014 | | | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, and IPv6 | | Micro SD Card Slot | Yes | | Power Supply | 12 VDC
