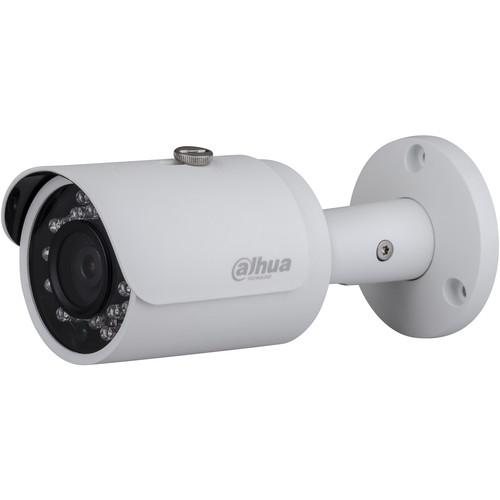

User Manual for Dahua Technology Lite Series 1.3MP Outdoor Network Bullet Camera with 3.6mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 1.3MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Lite Series 1.3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 1.3MP Outdoor Network Bullet Camera with 3.6mm Lens and Night Vision from Dahua Technology has a 1/3" progressive scan CMOS sensor and a 3.6mm fixed lens to capture 1280 x 960 resolution video at up to 30 fps. IR LEDs allow the camera to produce clear images in complete darkness of objects up to 98' away. Its 3.6mm has a 71° field of view to monitor both indoor and outdoor areas. The camera is housed in an IP67-rated enclosure for protection against dust and water, making it suitable for outdoor use. - 1/3" progressive scan CMOS sensor captures 1.3MP video at up to 30 fps
- Mechanical IR cut filter and IR LEDs help the camera produce clear images at night to a maximum range of 98'
- Smart IR illumination prevents the IR LEDs from whiting out nearby objects
- Digital Wide Dynamic Range (DWDR) allows the camera to compensate for overly bright or dark environments to produce accurate images
- 3.6mm lens has a 71° field of view
- IP67-rated for outdoor use
UPC: 856920006178 In the Box Dahua Technology Lite Series 1.3MP Outdoor Network Bullet Camera with 3.6mm Lens and Night Vision Limited 3-Year Warranty Brochure PDF 265.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 1.3MP Outdoor Network Bullet Camera with 3.6mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HFW11A0SN 3.6MM Specs | | | Image Sensor | 1.3 MP 1/3" progressive scan CMOS sensor | | Effective Pixels (H x V) | 1280 x 960 | | Built-In Memory | 8 MB ROM, 128 MB RAM | | Electronic Shutter | 1/3 to 1/100,000 sec | | Minimum Illumination | Color: 0.1 lux at f/2.0
B&W: 0.01 lux at f/2.0
0 lux IR on | | S/N Ratio | > 50 dB | | Number of IR LEDs and Range | 24 x IR LEDs, up to 98' (30 m) | | IR LED Control | Auto, manual | | Day/Night | Auto ICR, color, B&W | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 3.6mm | | Maximum Aperture | f/2.0 | | Field of View | Horizontal: 71° | | Focus Control | Fixed | | Camera Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | | | Compression | H.264 and MJPEG | | Streaming Capability | 2 streams | | Resolution | 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 576, 704 x 480), CIF (352 x 288, 352 x 240) | | Frame Rate | Main Stream: 1.3 MP (1-25/30 fps)
Sub Stream 1: D1/CIF (1-25/30 fps) | | Bit Rate Control | CBR / VBR | | Bit Rate | H.264: 4 to 8192 kbps | | Backlight Compensation | BLC, HLC, DWDR | | White Balance | Auto, sunny, night, outdoor, customized | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, on (4 zone, rectangle) | | Region of Interest | Off, on (4 zone) | | Smart IR | Supported | | Digital Zoom | 16x | | Flip / Mirror | Flip: 0, 90, 180, 270°
Mirror: Off, on | | Privacy Masking | Off, on (4 areas, rectangle) | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, CGI | | Streaming Method | Unicast, multicast | | Maximum Number of Users | 20 | | Web Viewer | Internet Explorer 10 | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS and Android | | | | Certifications | FCC (SEFD1509217-E), UL (E234884-A113-UL) | | Power Supply | 12 VDC ±25%, PoE (IEEE 802.3af Class 0) | | Maximum Power Consumption | 5 W (12 VDC, IR on)
5 W (PoE, IR on) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP67 | | Casing Material | Metal | | Dimensions | 2.8 x 6.5" (70 x 165 mm) | | Weight | 1 lb (0.44 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.1 x 4.2 x 3.8" |
