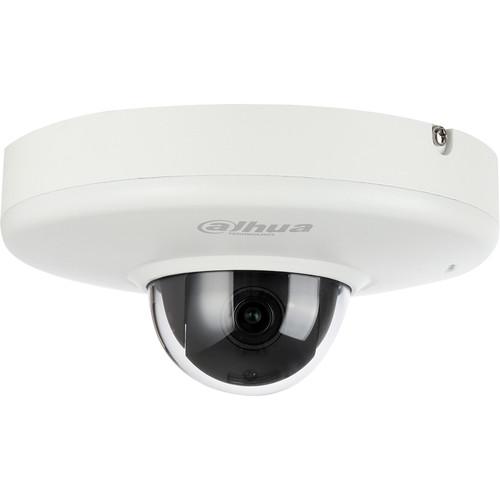

User Manual for Dahua Technology Lite Series 12203TNI 2MP Outdoor PTZ Mini-Dome Camera with 2.7-8.1mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 12203TNI 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
 |
User manual for the Dahua Technology Lite Series 12203TNI 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|

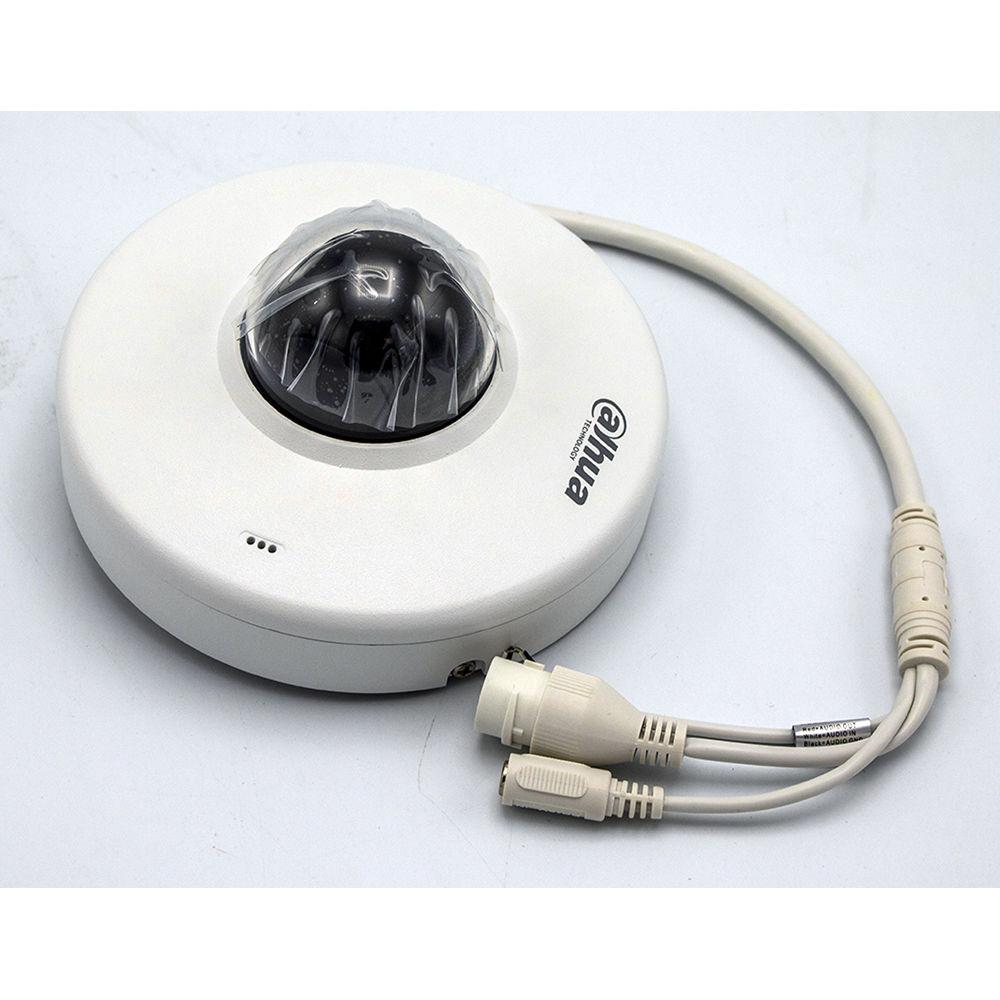

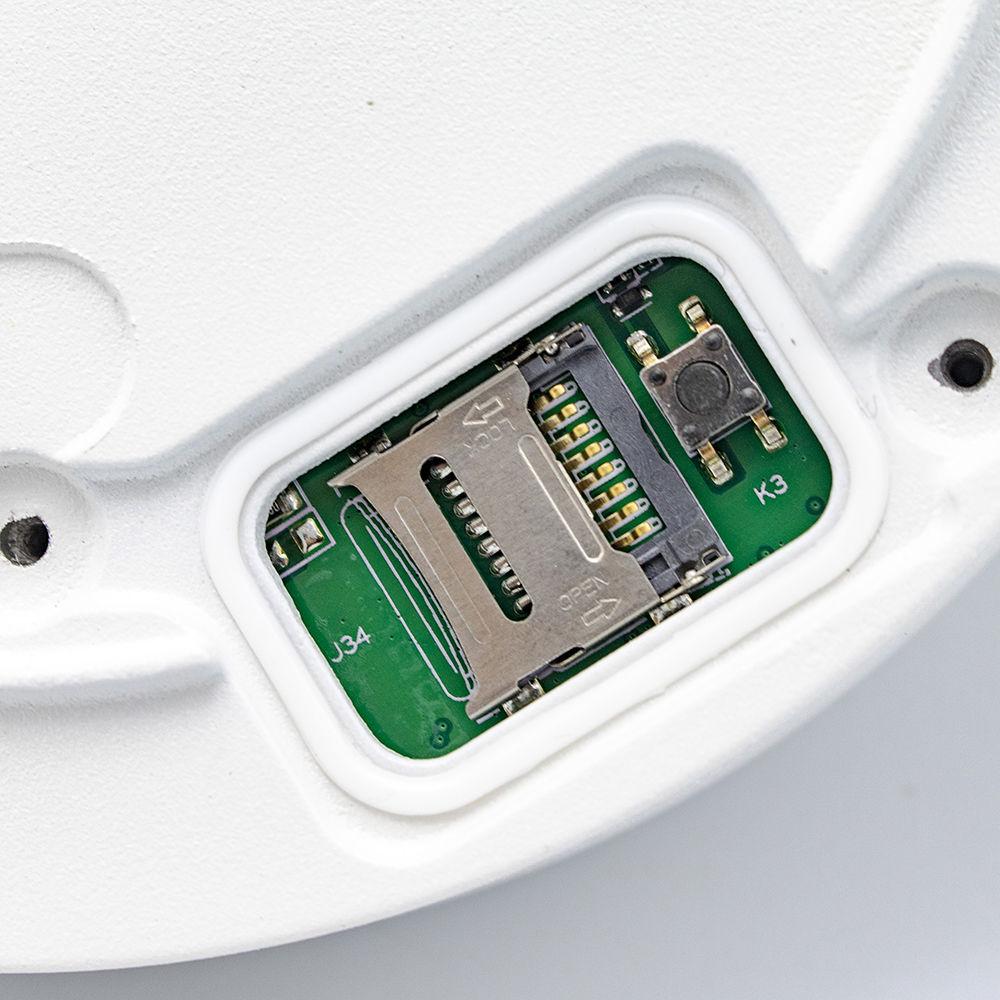

Product description The Lite Series 12203TNI 2MP Outdoor PTZ Mini-Dome Camera from Dahua Technology uses a 1/2.8" STARVIS progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The 2.7-8.1mm varifocal lens delivers a 105.6-35.2° horizontal field of view. PTZ functionality offers 0 to 355° panning, a 5 to 90° tilting range, and 3x optical zoom. Two-way audio communication is possible thanks to a built-in microphone and an audio I/O port. An onboard memory card slot supports microSD cards up to 256GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This mini-dome camera is housed in an IP66-rated metal enclosure that is suitable for outdoor use. It's also IK08-rated for impact protection. - Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection
- Starlight technology for low-light applications
- IR cut filter for day and night functionality
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- Auto and manual focus control
- 3.94 to 39.37" close focus distance
- 3x optical and 16x digital zoom
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- White balance modes include auto, ATW, indoor, outdoor, and manual
- Auto and manual gain control
- Privacy masking for up to 24 areas

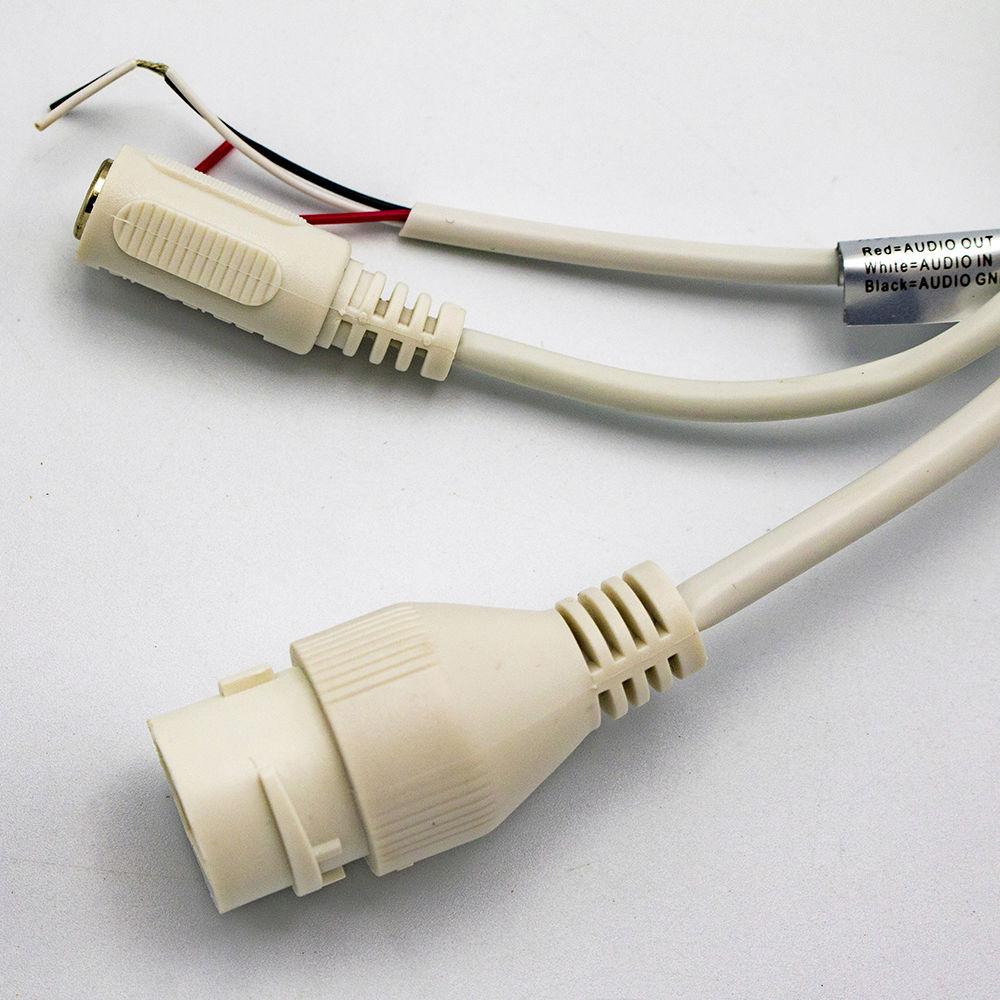

- Built-in microphone and audio I/O port
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Records to local PC and NAS edge storage
- IP66- and IK08-rated metal enclosure for outdoor use and impact protection
- PTZ Functionality
-
- 0 to 355° pan range
- 5 to 90° tilt range
- 0.1 to 70°/s manual control pan speed
- 0.1 to 30°/s manual control tilt speed
- 80°/s pan preset speed
- 40°/s tilt preset speed
- 300 presets
- 8 tours
- Human-oriented focal length/speed adaptation
- Auto restore to previous PTZ and lens status after power failure
- Activate preset/tour if there is no command in the specified period
- DH-SD protocol
- DORI Distance
-
- 329.4' / 100.4m (detect)
- 131.9' / 40.2m (observe)
- 65.9' / 20.1m (recognize)
- 32.8' / 10m (identify)

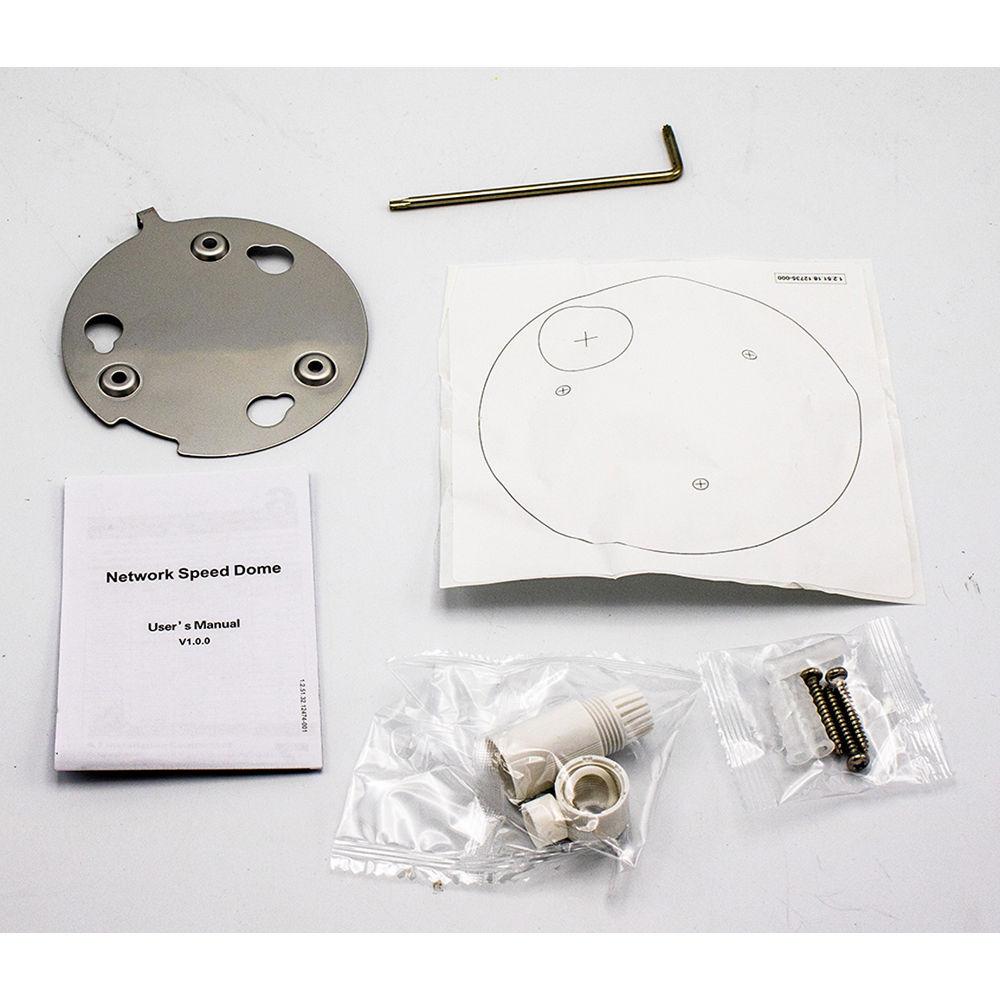

UPC: 819290025217 In the Box Dahua Technology Lite Series 12203TNI 2MP Outdoor PTZ Mini-Dome Camera with 2.7-8.1mm Lens Installation Accessories Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 12203TNI 2MP Outdoor PTZ Mini-Dome Camera with 2.7-8.1mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology 12203TNI Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 2.7 to 8.1mm | | Maximum Aperture | f/1.8 | | Zoom | Optical: 3x
Digital: 16x | | Lens Field of View | Horizontal: 105.6 to 35.2° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0.0005 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps (8.19 Mb/s H.264) | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 355° at 80°/s
Remote Tilt: 85° at 40°/s | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | SmartPSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 6 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK08 | | Dimensions |
