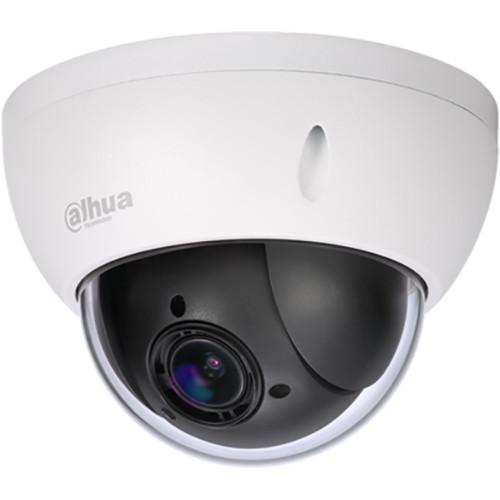

User Manual for Dahua Technology Lite Series 2MP 1080p HDCVI Outdoor PTZ Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 2MP 1080p
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Lite Series 2MP 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 2MP 1080p HDCVI Outdoor PTZ Mini Dome Camera from Dahua Technology is equipped with a 1/2.8" progressive scan CMOS image sensor and a 2.7 to 11mm lens with 4x optical zoom. It captures clear images in resolutions up to 1080p. The camera offers day/night functionality with ICR. The camera features 2D- & 3D-DNR (Digital Noise Reduction) and BLC (Backlight Compensation) that enhance image quality to provide clear and crisp images in extreme backlit and dark environments. It is IP66- and IK10-rated for ingress protection and vandal resistance, making it suitable for outdoor applications. -
- 4x optical zoom
- High definition video, audio, and data transmitted over coax cable
- Maximum 30 fps @ 1080p, 60 fps @ 720p resolution
- DWDR, Day/Night (ICR), DNR (2D & 3D), Auto iris, Auto focus, AWB, AGC, BLC
- Maximum 100°/sec pan speed
- HD and SD switchable
- Up to 300 presets, 5 auto scans, 8 tours, 5 patterns
- IP66-rated weather resistance and IK10-rated vandal resistance
UPC: 816116021354 In the Box Dahua Technology Lite Series 2MP 1080p HDCVI Outdoor PTZ Mini Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 2MP 1080p HDCVI Outdoor PTZ Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-SD22A204IN-GC Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels (H x V) | 1944 x 1092 (2 MP) | | Horizontal Resolution | ≥ 1000 TVL | | Scanning System | Progressive | | Electronic Shutter Speed | 1/1 to 1/30,000 sec | | Minimum Illumination | Color: 0.05 lux / f/1.6
B&W: 0.005 lux / f/1.6
0 lux with IR emitter (not included) | | S/N Ratio | > 55 dB | | Resolution | 30 fps @ 1080p
30 / 60 fps @ 720p | | Video Output | 1-channel BNC HDCVI high-definition video output / CVBS standard definition video output (switchable) | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto / Manual | | Noise Reduction | Ultra DNR (2D / 3D) | | Privacy Masking | Up to 24 areas | | Digital Zoom | 16x | | | | Focal Length | 2.7 to 11mm (4x optical zoom) | | Maximum Aperture | f/1.6 to f/3.0 | | Focus Control | Auto / Manual | | Horizontal Angle of View | 112.5 to 39° | | Close Focus Distance | 100 to 1000 mm | | | | Pan / Tilt | Pan: 0 to 355° endless
Tilt: 0 to 90°
Auto flip 180° | | Manual Control Speed | Pan: 0.1 to 100°/sec
Tilt: 0.1 to 60°/sec | | Preset Speeds | Pan: 100°/sec
Tilt: 60°/sec | | Preset | 300 | | PTZ Mode | 5 Patterns, 8 Tours, 5 Auto Scan, and Auto Pan | | Setup | Speed Setup: Human-oriented focal length / speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset / Scan / Tour / Pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (Auto recognition) | | | | Power Supply | 12 VDC | | Power Consumption | 10 W maximum | | Working Temperature | -22 to 140°F (-22 to 60°C) | | Humidity | < 90% RH | | Ingress Protection | IP66 | | Vandal Resistance | IK10 | | Dimensions | 4.8 x 3.5" (122 x 89 mm) | | Weight | 3.13 lb (1.42 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.3 x 6.2 x 5.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
