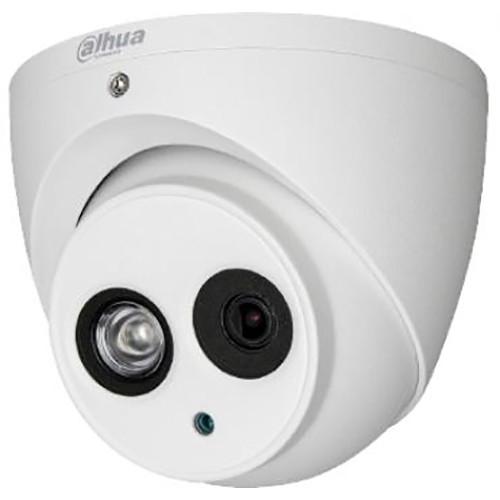

Product description With the Lite Series 2MP HD-CVI Eyeball Camera from Dahua Technology, you can experience the clarity of full HD video while leveraging your existing coaxial infrastructure. It features smart IR technology to deliver clear images in near total darkness and offers a multi-language onscreen display. It also offers HD and SD dual output. The camera is suitable for small businesses. - Multi-format Support
- The camera supports multiple video formats including, HD-CVI, CVBS, and two additional HD analog formats. The camera can switch between these four formats via the OSD menu or via a UTC controller (PFM820), making the camera compatible with not only HCVRs but also most existing HD and SD DVRs.
- Multi-Language OSD
- The OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask, and motion detection and offers Chinese, English, French, German, Spanish, Italian, Japanese, Korean, Russian, Polish, and Portuguese language display options.
- Four Signals over a Single Coaxial Cable
- HD-CVI technology simultaneously transmits four signals (audio, video, power, and data) over a single coaxial cable. Dual-way data transmission allows the HD-CVI camera to communicate with an HCVR to send control signals or to trigger alarms. Moreover, HD-CVI technology supports PoC for construction flexibility.
- Long-Distance Transmission
- HD-CVI technology ensures real-time transmission over long distances, without loss of video quality. HD-CVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or Cat 6 UTP cabling.
- Smart IR
- With IR illumination, clear images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of a camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whiting out images as targets come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments to 164'.
- Simplicity
- HD-CVI technology seamlessly integrates traditional analog surveillance systems with upgraded HD video. The plug-and-play approach enables full HD video surveillance without the hassles of configuring a network.
- Protection
- The camera is protected against water and dust with an IP67 rating, making it suitable for indoor or outdoor environments. With a working temperature range of -40 to 140°F, the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4kV lightning rating provides protection against the effects of lightning.
UPC: 816116024430 In the Box Dahua Technology Lite Series 2MP HD-CVI Eyeball Camera with 3.6mm Lens and Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 2MP HD-CVI Eyeball Camera with 3.6mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Lite Series Specs | | | Image Sensor | 1/2.9" CMOS | | Effective Pixels | H x V: 1920 x 1080, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100000 to 1/30 sec | | Minimum Illumination | Color: 0.02 lux at f/2
0 lux (IR on) | | S/N Ratio | More than 65 dB | | IR Range | 164' / 50 m | | IR Control | On/Off: Auto, Manual | | IR LEDs | 1 | | | | Type | Fixed lens/fixed iris | | Mount | Board-in | | Focal Length | 3.6mm | | Aperture | f/2.0 | | Angle of View | Horizontal: 82.8° | | Close Focus Distance | 31.5" / 800 m | | | | Range | Pan: 0 to 360° endless
Tilt: 0 to 78°
Rotation: 0 to 360° | | | | Resolution | 1080p (1920 x 1080) | | Frame Rate | 30 fps at 1080p
30/60 fps at 720p | | Video Output | 1 x BNC HD-CVI HD channel
1 x BNC CVBS channel, switchable | | Maximum Video Transmission Range | RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
Cat 6 UTP (Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m | | Day/Night | Auto (ICR), Manual | | OSD Menu | Multi-language | | BLC | BLC, HLC, DWDR | | Wide Dynamic Range | Digital WDR | | Gain Control | AGC | | Noise Reduction | 2D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Safety | EN55032, EN55024, EN50130-4
UL60950-1+CAN/CSA C22.2 No.60950-1 | | Electromagnetic Compatibility | FCC CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014 | | | | Power Supply | 12 VDC ±25% | | Power Consumption | Maximum 2.9 W (12 VDC with IR on) | | | | Operating Conditions | Temperature: -40 to 140°F / -40 to 60°C
Humidity: Less than 95% RH
Initiate Startup above -40°F / -40°C | | Storage Conditions | Temperature: -40 to 140°F / -40 to 60°C
Humidity: Less than 95% RH | | Ingress Protection | IP67 | | | | Casing | Aluminum | | Dimensions | 4.17 x 3.69" / 10.6 x 9.4 cm | | Weight | 0.97 lb / 0.44 kg | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 6.3 x 6.3 x 5.4" |
