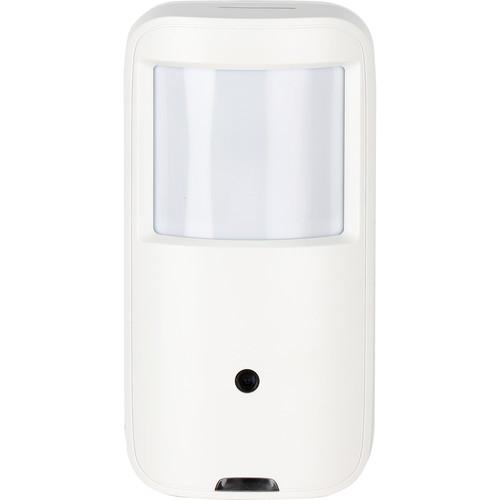

User Manual for Dahua Technology Lite Series 2MP HD-CVI MotionEye PIR Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 2MP HD-CVI
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Lite Series 2MP HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 2MP HD-CVI MotionEye PIR Camera from Dahua Technology uses a 1/2.9" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. The camera's 2.8mm fixed Fresnel lens delivers a 100.5° horizontal field of view. The PIR sensor has a 39 x 39' detection range. Dual-sensor technology keeps false alarms at a minimum by filtering out false positives from pets and other non-human moving objects. The camera supports HD-CVI and CVBS formats. A built-in tamper switch triggers an alarm and sends a signal to a DVR (available separately) when the device is tampered with. - Suitable for covert surveillance
- Video transmission distance up to 2625'
- Switch between HD-CVI and CVBS formats with the PFM820 UTC controller (available separately)
- Compatible with Dahua HCVRs/DVRs
- Dual-sensor technology filters false alarms from pets and other non-human moving objects
- Camera pivots from 0 to 180° horizontally and vertically
- Auto and manual white balance
- Backlight compensation, highlight compensation, and digital wide dynamic range
- 4kV lightning protection and ±25% input voltage tolerance
UPC: 819290020557 In the Box Dahua Technology Lite Series 2MP HD-CVI MotionEye PIR Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 2MP HD-CVI MotionEye PIR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HUM1220A-PIR Specs | | | Image Sensor | 1/2.9" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 1920 x 1080, 2 MP | | Electronic Shutter Speed | 1/100,000 to 1/30 Seconds | | Minimum Illumination | Color: 0.02 Lux at f/2.0
B&W: 0.002 Lux at f/2.0 | | S/N Ratio | >65 dB | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/2.0 | | Field of View | 100.5° | | Close Focus Distance | 19.7" / 500 mm | | | | Angle Adjustment | Horizontal: 0 to 180°
Vertical: 0 to 180°
Rotation: 0 to 360° | | | | Resolution | 1920 x 1080 | | Frame Rate | 1080p at 30 fps
720p at 60 fps
720 at 30 fps | | Video Output | 1 x BNC
HD Video Output or CVBS (Switchable) | | Video Transmission Distance | RG-59/U:
720p: 1640.42' / 500 m
1080p: 1312.34' / 400 m
RG-6/U:
720p: 2624.67' / 800 m
1080p: 1968.5' / 600 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1246.72' / 380 m
1080p: 1246.72' / 380 m | | Day/Night | Auto (Electronic) / Manual | | OSD Menu | Multi-Language | | Backlight Compensation | BLC, HLC, Digital WDR | | Automatic Gain Control | Supported | | Noise Reduction | 2D-DNR | | White Balance | Auto, Manual | | | | Detection | Passive Infrared | | Detection Range | 39.37 x 39.37' / 12 x 12 m | | Alarm Prompt | Red LED, On/Off | | Sensitivity | Two-Level (Jumper) | | Immunity | Pet Immunity: ≤39.68 lb / ≤18 kg | | Light | Resistance Light: 6500 Lux | | Installation Height | Default Bracket, Wall Mount: 7.22 to 8.2' / 2.2 to 2.5 m | | | | Power Supply | 12 VDC ±25% | | Power Consumption | Maximum 0.7 W (12 VDC, IR On) | | Operating Conditions | 14 to 122°F / -10 to 50°C
Less than 90% RH
Initiate Startup Above 14°F / -10°C | | Storage Conditions | 14 to 122°F / -10 to 50°C
Less than 90% RH | | Casing | Plastic | | Certifications | Safety: EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014 | | Dimensions (H x W x D) | 4.71 x 2.43 x 2.29" / 119.7 x 61.7 x 58.1 mm | | Weight | 0.29 lb / 0.13 kg | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.75 x 2.75 x 2.75" |
