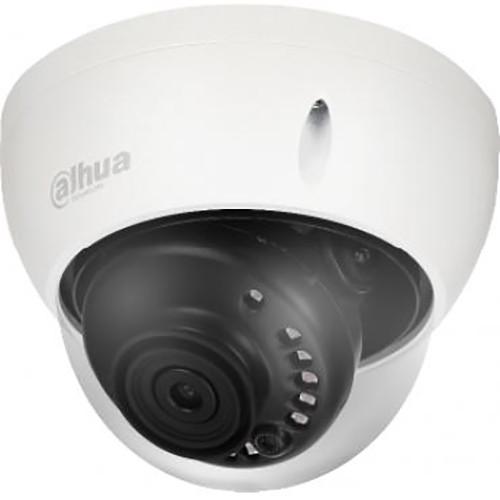

User Manual for Dahua Technology Lite Series 2MP Outdoor HD-CVI Dome Camera with 2.8mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 2MP Outdoor
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Lite Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Keep an eye on a medium-sized outdoor area with the Lite Series 2MP Outdoor Analog HD Dome Camera from Dahua Technology. Its 2.8mm lens has a 106° horizontal field of view and features a 2MP 1/2.9" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The IR cut filter and built-in IR LEDs allow it to produce clear images of objects in complete darkness from up to 98' away. Wide dynamic range and automatic gain control help the camera produce accurate images in varying lighting conditions. The camera is housed in an IP67- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk environments. - 2MP 1/2.9" CMOS sensor captures 1080p video at up to 30 fps
- Night vision up to 98' in complete darkness
- 2.8mm lens has a 106° field of view to monitor a medium-sized outdoor area
- WDR and AGC for clear images
- IP67- and IK10-rated enclosure for dust, water, and impact protection
UPC: 816116025086 In the Box Dahua Technology Lite Series 2MP Outdoor HD-CVI Dome Camera with 2.8mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 2MP Outdoor HD-CVI Dome Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Lite Series Specs | | | Image Sensor | 2 MP 1/2.9" CMOS sensor | | Effective Pixels (H x V) | 1920 x 1280 | | Electronic Shutter | 1/30 to 1/100,000 sec | | Synchronization | Internal | | Minimum Illumination | Color: 0.02 lux at f/2.0
IR LEDs On: 0 lux | | Number of IR LEDs and Range | 12 x smart IR LEDs, up to 98' / 30 m | | IR Control | Auto, manual | | Day/Night | Auto (ICR), color, B&W | | | | Type | Fixed lens, fixed iris | | Lens Mount Type | Board-in | | Lens | 2.8mm | | Aperture | f/2.0 | | Field of View | Horizontal: 106° | | Close Focus Distance | 19.7" / 50 cm | | Adjustments | Pan: 0 to 355°
Tilt: 0 to 65°
Rotation: 0 to 355° | | | | Resolution | 1080p (1920 x 1080) | | Frame Rate | 30 fps at 1080p, 30/60 fps at 720p | | Video Output | 1 x BNC HD-CVI output
1 x BNC CVBS, AHD, or HD-TVI output (switchable) | | Maximum Video Transmission Range | RG-59/U Coax:
720p: 2625' / 800 m
1080p: 1640' / 500 m
RG-6/U Coax:
720p: 3937' / 1200 m
1080p: 2625' / 800 m
Cat 6 UTP (Balun Required and Available Separately):
720p: 1476' / 450 m
1080p: 984' / 300 m | | OSD Menu | Multi-language | | Backlight Compensation | BLC, HLC, DWDR | | Wide Dynamic Range | Digital wide dynamic range | | Gain Control | AGC | | Digital Noise Reduction | 2D-DNR | | White Balance | Auto, manual | | Smart IR | Auto, manual | | | | Certifications | EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1, FCC CFR 47, FCC Part 15 Subpart B, ANSI C63.4-2014 | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 2.6 W (12 VDC with IR LEDs on) | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <95% RH | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | <95% RH | | IP Rating | IP67 | | IK Rating | IK10 | | Material | Aluminum | | Dimensions | 4.3 x 3.2" / 110 x 81 mm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 4.5" |
