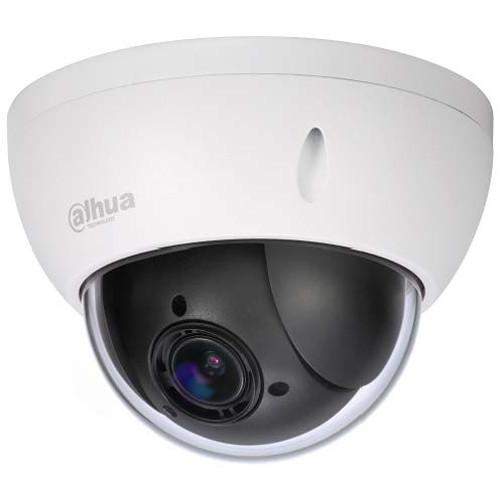

User Manual for Dahua Technology Lite Series 2MP Outdoor Wi-Fi PTZ Dome Network Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 2MP Outdoor
- Product category: Wireless Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wireless Cameras
|
User manual for the Dahua Technology Lite Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 2MP Outdoor Wi-Fi PTZ Dome Network Camera from Dahua Technology has a 1/2.7" Exmor progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Its 2.7-11mm motorized varifocal lens has a 112.5-39° field of view to monitor both indoor and outdoor areas and can be easily adjusted thanks to the camera's PTZ functionality. Pan from 0 to 355°, tilt from 0 to 90°, and zoom up to 4x to monitor a specific area or subject. Video data is transmitted over Wi-Fi for a simplified setup.
Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for outdoor use and in high-risk environments. - 1/2.7" progressive scan Exmor CMOS sensor captures 2MP video at up to 30 fps
- Mechanical IR cut filter help the camera produce clear images in low-light scenes
- Wide Dynamic Range up to 120 dB allows the camera to compensate for overly bright or dark environments to produce accurate images
- Wi-Fi connectivity simplifies setup and maintenance
- 2.7-11mm lens has a 112.5-39° field of view
- Pan, tilt, and motorized zoom for remote adjustments
- Built-in IVS for advanced analytics and detection
- IP66- and IK10-rated for outdoor use
UPC: 816116023006 In the Box Dahua Technology Lite Series 2MP Outdoor Wi-Fi PTZ Dome Network Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 2MP Outdoor Wi-Fi PTZ Dome Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-SD22A204TN-GNI-W Specs | | | Image Sensor | 2 MP 1/2.7" Exmor progressive scan CMOS sensor | | Effective Pixels (H x V) | 1944 x 1092 | | Electronic Shutter | 1 to 1/30,000 sec | | Minimum Illumination | Color: 0.05 lux at f/1.6
B&W: 0.005 lux at f/1.6
0 lux IR on (available separately) | | S/N Ratio | >50 dB | | | | Lens Type | Motorized, auto iris | | Mount Type | Board-in | | Focal Length | 2.7-11mm | | Maximum Aperture | f/1.6-2.8 | | Field of View | Horizontal: 112.5-39° | | Focus Control | Auto, manual | | Close Focus Distance | 3.9-39" (100-1000 mm) | | | | Pan / Tilt | Pan: 0 to 355°
Tilt: 0 to 90°
Auto-Flip: 180° | | Manual Control Speed | Pan: 0.1 to 100° per sec
Tilt: 0.1 to 60° per sec | | Preset Speeds | Pan: 100° per sec
Tilt: 60° per sec | | Presets | 300 (DH-SD) | | PTZ Mode | 8 tour, auto scan | | Setup | Speed: User-oriented focal length/speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate preset, scan, tour, pattern if there is no command in the specified period | | Time Task | Auto activation of preset, scan, tour, pattern by preset-time | | Protocol | DH-SD, Pelco P and D (auto recognition) | | | | Compression | H.264 and MJPEG | | Streaming Capability | 3 streams | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576, 704 x 480), CIF (352 x 288, 352 x 240) | | Frame Rate | Main Stream: 1080p/D1 (1-30 fps) or 720p (1-60 fps)
Sub Stream 1: D1/CIF (1-30 fps)
Sub Stream 2: 720p/D1/CIF (1-30 fps) | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 448 to 8192 kbps
MJPEG: 5120 to 10,240 kbps | | Day/Night | Auto (ICR), color, B&W | | Backlight Compensation | BLC, HLC, WDR (120 dB) | | White Balance | Auto, ATW, indoor, outdoor, manual | | Gain Control | Auto, manual | | Noise Reduction | Ultra DNR (2D, 3D) | | Motion Detection | Off, on (4 zone, rectangle) | | Region of Interest | Off, on (4 zone) | | Digital Zoom | 16x | | Image Flip | Flip: 0, 180° | | Privacy Masking | Up to 24 areas | | | | Ethernet | RJ45 (10/100Base-T) | | Wi-Fi | IEEE 802.11b/g/n
Up to 164' (50 m) | | Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Users | 20 | | Edge Storage | microSD card up to 128 GB
NAS, local computer | | Status Display | Memory Card: Normal, error, active, formatting, lock | | Web Viewer | IE10 | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS and Android | | | | Detection | Tripwire, intrusion, abandoned object, missing object, and face detection | | | | Certifications | FCC (SEFD1505003-A)
UL (E234884-A67-UL) | | Power Supply | 12 VDC, PoE | | Maximum Power Consumption | 10 W | | Operating Temperature | -22 to 140°F (-30 to 60°C)
Start-up: -31°F (-35°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP66 | | IK Rating | IK10 | | Casing Material | Metal and plastic | | Dimensions | 4.8 x 3.5" (122 X 89 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.69 lb | | Box Dimensions (LxWxH) | 6.2 x 6.15 x 5.4" |
