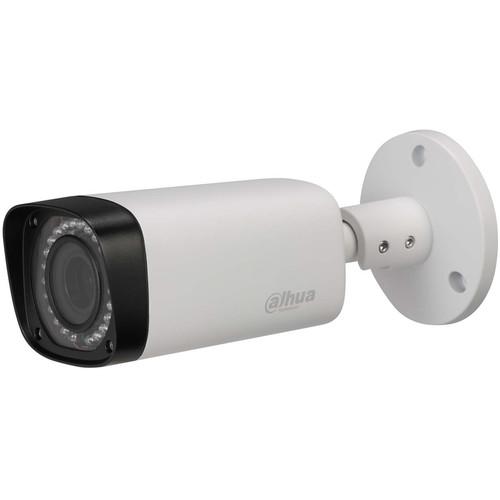

User Manual for Dahua Technology Lite Series 3MP Outdoor Network Bullet Camera with 2.7-12mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 3MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Lite Series 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 3MP Outdoor Network Bullet Camera from Dahua Technology utilizes a 1/3" progressive scan CMOS sensor and a 2.7-12mm varifocal lens to capture images at a resolution up to 2304 x 1536 at 20 fps. With built-in IR emitters, this camera can capture images of objects up to 98' away in complete darkness. It features an ingress rating of IP67, and is powered by a 12 VDC adapter. -
- Features a 1/3" 3 MP CMOS
- H.264 & MJPEG dual-stream encoding
- Max 20 fps at 3 MP (2304 x 1296, 2048 x1536) & 30 fps at 1080p (1920 x 1080)
- Day & Night ICR, AWB, AGC, BLC, 3D-DNR
- Multiple Network Monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 2.7-12mm varifocal lens
- Features 98' maximum IR LED range
- IP67 ingress rating
- Powered by a 12 VDC adapter
- microSD card slot, up to 128GB (available separately)
UPC: 856920006048 In the Box Dahua Technology Lite Series 3MP Outdoor Network Bullet Camera with 2.7-12mm Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 3MP Outdoor Network Bullet Camera with 2.7-12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HFW23A0RN-ZS Specs | | | Image Sensor | 1/3" 3 MP CMOS | | Effective Pixels (H x V) | 2304 x 1536 | | Electronic Shutter | Auto/Manual, 1/3(4) to 1/100,000 sec | | Synchronization | Internal | | Minimum Illumination | Color: 0.1 lux at f/1.4
B&W: 0.01 lux at f/1.4
0 lux with IR on | | S/N Ratio | <50 dB | | IR LED Range | 98' (30 m) | | Day/Night | Auto ICR / Color / B&W | | Backlight Compensation | BLC / HLC / DWDR | | Noise Reduction | 3D-DNR | | Motion Detection | 4 rectangular zones | | Privacy Masking | Up to 4 areas | | Pan / Tilt / Rotate | Pan: 0 to 360°
Tilt: 0 to 90°
Rotate: 0 to 360° | | | | Lens Type | Motorized / Fixed Iris | | Focal Length | 2.7-12mm | | Maximum Aperture | f/1.4 | | Angle of View | Horizontal: 92 to 28° | | Mount Type | Board-in | | Focal Length | 4.3 to 75.5' (130 to 2300 cm) | | | | Compression | H.264 / MJPEG | | Resolution | 3 MP (2304 x 1296, 2048 x 1536) / 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) /CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream: 3 MP (1 to 20 fps) / 1080p (1 to 30 fps)
Sub Stream: D1 / CIF (1 to 30 fps) | | Bit Rate | H.264H: 4 to 8192 kbps | | | | Ethernet | RJ45 (10/100BaseT) | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour | | Compatibility | ONVIF, PSIA, CGI | | Max. User Access | 20 | | Mobile OS Support | iOS, Android | | Storage | NAS, local PC, microSD (128 GB maximum) | | Power Supply | 12 VDC / PoE (802.3af) | | Power Consumption | 7.5 W maximum | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity (Non-Condensing) | <90% | | Ingress protection | IP67 | | Dimensions | 2.8 x 3.1 x 8.4" (72 x 80 x 212.8 mm) | | Weight | 1.43 lb (0.65 kg) | | | | Box Dimensions (LxWxH) | 11.1 x 5.39 x 4.37" |
