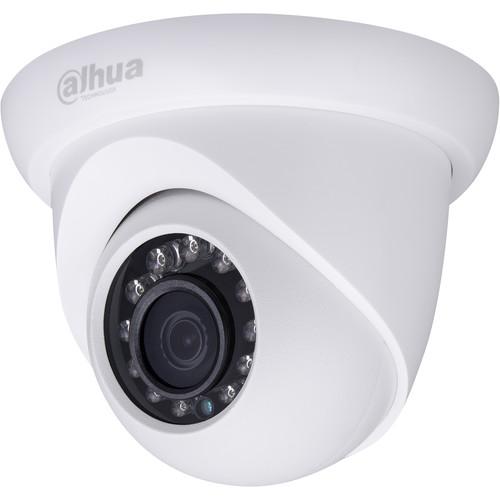

User Manual for Dahua Technology Lite Series 3MP Outdoor Network Eyeball Camera with 3.6mm Fixed Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 3MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Lite Series 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 3MP Outdoor Network Eyeball Camera from Dahua Technology utilizes a 1/3" CMOS image sensor and 3.6mm fixed lens to capture images of 2048 x 1536 resolution at 20 fps. The camera offers day/night functionality with ICR and features IR LEDs that are effective up to 98'. It also features DWDR (Digital Wide Dynamic Range), AWB (Automatic White Balance), AGC (Automatic Gain Control), BLC (Backlight Compensation), and 3DNR (3D Noise Reduction) that enhance image quality, and provide clear and crisp images in extreme backlight and dark environments. The camera supports H.264 and MJPEG dual-stream encoding. It comes with an IP67-rated weather-proof weatherproof housing. - 1/3" 3MP progressive scan CMOS image sensor
- H.264/MJPEG dual-stream encoding
- Maximum 20 fps @ 3MP (2048 x 1536) & 30 fps @ 1080p (1920 x 1080)
- Day/Night functionality with ICR
- IR LEDs illuminate up to 98'
- DWDR (Digital Wide Dynamic Range)
- 3DNR (Digital Noise Reduction)
- BLC (Backlight Compensation)
- Multiple Network Monitoring-Web viewer, CMS (DSS/PSS), and DMSS
- Powered via PoE (802.3af) or 12 VDC
UPC: 856920006147 In the Box Dahua Technology Lite Series 3MP Outdoor Network Eyeball Camera with 3.6mm Fixed Lens & Night Vision Limited 3-Year Warranty Brochure PDF 400.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 3MP Outdoor Network Eyeball Camera with 3.6mm Fixed Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDW13A0SN 3.6MM Specs | | | Image Sensor | 1/3" 3 MP progressive scan CMOS | | Effective Pixels (H x V) | 2048 x 1536 | | Electronic Shutter Speed | 1/1 to 1/100,000 sec | | Minimum Illumination | Color: 0.1 lux @ f/2.0
B&W: .01 lux @ f/2.0 IR On: 0 lux | | IR Distance | 98' (30 m) | | S/N Ratio | More than 50 dB | | | | Type | Fixed lens | | Focal Length | 3.6 mm | | Maximum Aperture | f/2.0 | | Focus Control | Manual | | Horizontal Angle of View | Variable 81° | | Mount Type | Board-in | | | | Day/Night Mode | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto / Sunny / Night / Outdoor / Customized | | Gain Control | Auto / Manual | | Digital Noise Reduction | 3D-DNR | | Privacy Masking | Up to 4 areas | | | | Compression | H.264 / MJPEG | | Resolution | 3 MP (2048 x 1536 / 2304 x 1296) / 1080p (1920 x 1080) / 720p (1280 x 720)/ D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream: 3 MP (1 to 20 fps) / 1080p (1 to 30 fps)
Sub Stream: D1/CIF (1 to 30 fps) | | Bit Rate | H.264: 4 to 8,192 bps | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, SSL, SNMP | | Compatibility | ONVIF, CGI | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users | | Mobile OS Support | iOS and Android | | | | Pan / Tilt / Rotate | Pan: 0 to 360
Tilt: 0 to 90
Rotation: 0 to 360 | | Power Supply | 12 VDC, POE (802.3af) | | Power Consumption | 4 W (IR on) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | Less than 90% RH | | Ingress Protection Rating | IP67 | | Dimensions (Ø x H) | 4.3 x 3.4" (10.8 x 8.5 cm) | | Weight | 0.51 lb (0.23 kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 4.5" |
