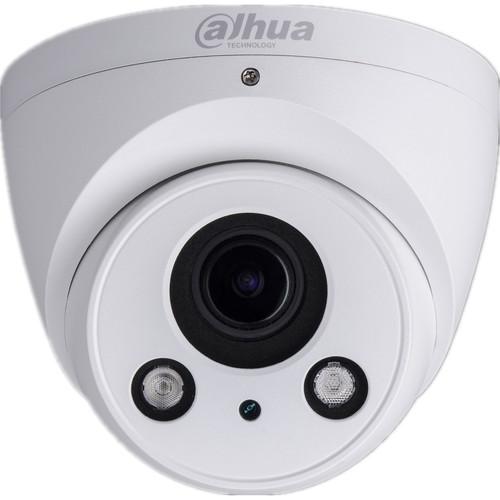

User Manual for Dahua Technology Lite Series 3MP Outdoor Network Turret Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 3MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Lite Series 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the Lite Series 3MP Outdoor Network Turret Camera with Night Vision from Dahua Technology. This camera features a 3MP 1/3" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at up to 20 fps. The IR cut filter and the built-in IR LEDs next to the lens of the camera allow it to produce images of objects in complete darkness from up to 195' away. Its motorized 2.7-12mm varifocal lens has a 92-28° field of view to monitor medium- to small-sized spaces. H.264 compression ensures high-quality recording and playback while minimizing network bandwidth use. PoE technology helps to eliminate cable clutter by providing a network connection and power in a single Ethernet cable. The camera is housed in an IP67-rated enclosure for protection against dust and water. - 3MP 1/3" progressive scan CMOS sensor captures 2048 x 1536 resolution video at up to 20 fps
- Night vision up to 195' in complete darkness
- Motorized 2.7-12mm varifocal lens has a 92-28° field of view
- Digital wide dynamic range and 3D digital noise reduction help produce clear images in varying lighting conditions
- Auto white balance, auto gain control, and backlight compensation correct images for better accuracy
UPC: 856920006109 In the Box Dahua Technology Lite Series 3MP Outdoor Network Turret Camera with Night Vision Limited 3-Year Warranty Brochure PDF 372.6kbevbrvwxyywxwtxyd Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 3MP Outdoor Network Turret Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDW23A0RN-ZS Specs | | | Image Sensor | 3 MP 1/3" progressive scan CMOS sensor | | Effective Pixels | 2048 x 1536 | | Electronic Shutter Speed | 1/3 (1/4) to 1/100,000 s | | Minimum Illumination | Color: 0.1 at lux f/1.4
B&W: 0.01 lux at f/1.4
0 lux at f/1.4 (IR LEDs on) | | S/N Ratio | >50 dB | | Number of IR LEDs and Range | 2 x IR LEDs, up to 195' (60 m) | | IR LED Control | Auto, manual | | | | Lens Type | Motorized focus | | Mount Type | Board-in | | Focal Length | 2.7-12mm | | Aperture | f/1.4 | | Field of View | 92-28° | | Close Focus Distance | 4.27 to 75.5' (1.3 to 23 m) | | Adjustments | Pan: 0 to 360°
Tilt: 0 to 80°
Rotation: 0 to 360° | | | | Compression | H.264 and MJPEG | | Streams | 2 streams | | Resolution | 3 MP (2048 x 1536, 2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576, 704 x 480), CIF (352 x 288, 352 x 240) | | Frame Rate | Main Stream: Up to 20 fps at 3 MP, 30 fps at 1080p
Sub Stream: 1-30 fps at D1/CIF | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 40-8192 kbps | | Day/Night | Auto (ICR), color, B&W | | Backlight Compensation | BLC, HLC, DWDR | | White Balance | Auto, sunny, night, outdoor, customized | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, on (4 zones, rectangle) | | ROI | Off, on (4 zones) | | Smart IR | Supported | | Digital Zoom | 16x | | Flip / Mirror | Flip: 0, 90, 180, 270°
Mirror: Off, on | | Privacy Masking | Off, on (4 areas, rectangle) | | | | Ethernet | RJ45 10/100Base-T | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Simultaneous User Access | 20 | | Storage Type | NAS (Network Attached Storage)
Local computer for instant recording
Up to 128 GB memory card (available separately) | | Web Browser Support | Internet Explorer 10 and later | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS and Android | | | | Power Supply | 12 VDC ±25%
PoE 802.3af Class 0 | | Power Consumption | 5.3 W maximum with 12 VDC power and IR LEDs on | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <90% RH, non-condensing | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH, non-condensing | | Casing Material | Metal | | IP Rating | IP67 | | Certifications | FCC (SEFD1507206-B), UL (E234884-A65-UL) | | Dimensions | 4.8 x 4" (122 x 102 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.2 x 6.2 x 5.6" |
