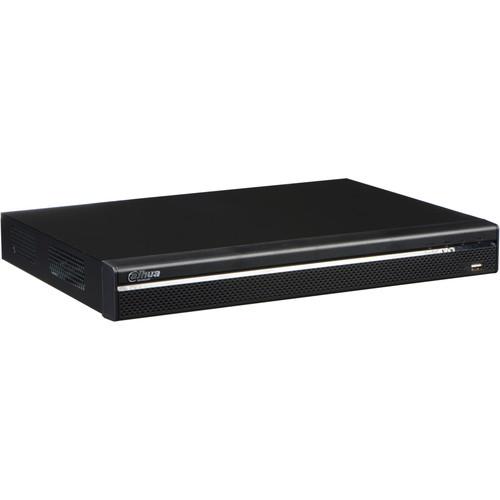

User Manual for Dahua Technology Lite Series 4-Channel 8MP NVR with 1TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series 4-Channel 8MP
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
 |
User manual for the Dahua Technology Lite Series 4-Channel 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series 4-Channel 8MP NVR with 1TB HDD from Dahua Technology features four PoE camera inputs and records up to 3840 x 2160 resolution at 30 fps per camera. It has simultaneous HDMI and VGA video outputs and can handle incoming 4K UHD video at 30 fps when monitoring two 4K cameras or 1080 at 30 fps for four cameras. It includes 1TB of pre-installed HDD storage and is upgradeable to a total of 16TB.
The NVR offers your choice of H.265, H.264, and MJPEG video compressions, supports Dahua and numerous third-party IP cameras, and is compatible with iOS and Android for access via your mobile device. - Key Features
-
- Four PoE camera inputs
- Records up to 3840 x 2160 resolution at 30 fps per camera
- Simultaneous HDMI and VGA video outputs
- Up to 3840 x 2160 recording resolution with two cameras, up to 1080p with four
- H.265, H.264, and MJPEG video compression
- ONVIF 2.4 compliant
- Intelligent Analytics (IVS)
-
- Standard
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
- Facial detection
- People counting
- Heat map
UPC: 816116027608 In the Box Dahua Technology Lite Series 4-Channel 8MP NVR with 1TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series 4-Channel 8MP NVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Lite Series Specs | Processor | Quad-core | | Operating System | Linux | | IP Camera Inputs | 4 channels | | Audio | 1 x RCA 1-channel input
1 x RCA 1-channel output | | Interface | 1 x HDMI
1 x VGA | | Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Maximum Decoding | 2 channels of 4K UHD / 6 MP at 30 fps
3 channels of 5 MP at 30 fps
4 channels of 4/3 MP at 30 fps
4 channels of 1080p at 30 fps | | Display Split | 1/4 | | Compression | H.265, H.264, MJPEG | | Supported IP Camera Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1.3 MP, 1080p, 720p, D1, CIF | | Recording Resolution | 4 channels of 4K at 30 fps | | Maximum Bandwidth | 200 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s per channel | | Record Mode | Manual, schedule (regular, continuous), motion detection (video detection, motion detection, tampering, video loss), stop | | Recording Intervals | 1-120 minutes (default: 60 minutes)
Pre-Record: 1-30 seconds
Post-Record: 10-300 seconds | | Trigger Events | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer and screen tips | | Video Detection | 396 motion detection zones (22 x 18), video loss and tampering | | Alarm Input | 4 channels (low level effective, green terminal interface) | | Relay Output | 2 channels (NO/NC programmable, green terminal interface) | | Sync Playback | 1/4 | | Search Modes | Time/date, alarm, motion detection, exact search, smart search | | Backup Modes | USB device, network | | Third-Party Support | IP cameras from Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and other manufacturers | | Ethernet | 1 x RJ45 port (10/100/1000 Mb/s) | | PoE | 4 x RJ45 ports (IEEE 802.3at/af) | | Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search (support for Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Compatible Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4, CGI conformant | | HDD Support | 2 x SATA III ports, up to 8 TB HDD per port 1 TB | | Installed HDD | 1 TB | | HDD Mode | Single | | USB | 1 x USB 3.0
1 x USB 2.0 | | Power Supply | 48 VDC, 2 A | | Power Consumption | NVR: <9 w (without hdd)
PoE: 50 W (max) | | Total PoE Budget | 25.5 W per port | | Certifications | CE: EN55032, EN55024, EN60950-1; Safety: UL 60950-1 CAN/CSA C22.2 No. 60960-1; Electromagnetic Compatibility (EMC): FCC CFR 47 part 15, subpart B, ANSI C63.4-2014 | | Operating Environment | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0-90% RH | | Rack Mount | 1 RU | | Dimensions | 14.8 x 11.1 x 2.2" / 38 x 28.2 x 5.6 cm | | Weight | 3.5 lb / 1.6 kg, without HDD | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 17.0 x 14.0 x 5.5" |
