User manual
Dahua Technology Lite Series 40212TNI 2MP

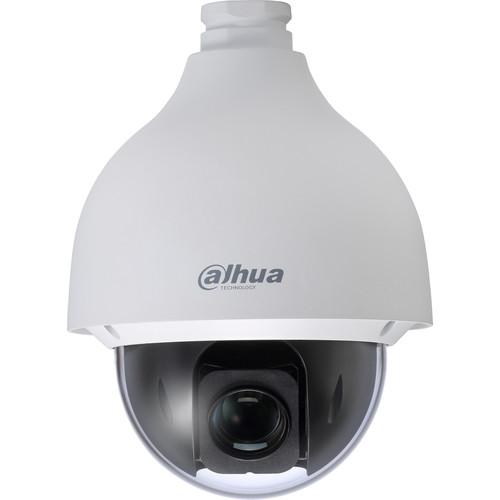

User Manual for Dahua Technology Lite Series 40212TNI 2MP Starlight Outdoor PTZ Network Dome Camera

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

• 1/2.8" 2MP STARVIS CMOS sensor

• 12x optical zoom

• Triple-stream encoding

• H.265 and H.264 dual codecs

• Up to 1920 x 1080 resolution at 30 fps

• PoE+ support

• 1024MB RAM and 128MB ROM memory

Starlight Technology
• Designed for challenging low-light applications, Starlight ultra-low-light technology offers high light sensitivity for capturing details in low light down to 0.005 lux. The 40212TNI uses a set of optical features to balance light throughout the scene, resulting in clear images even in dark environments.

Intelligent Video System
• IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. The 40212TNI quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture images of faces and upload them to a server. The camera also offers tamper detection by recognizing sudden scene changes, and generates a warning message to inspect the camera.

True Wide Dynamic Range
• The camera achieves vivid images even scenes with contrasting lighting conditions using wide dynamic range (WDR) technology. For applications with simultaneous bright and low lighting conditions that change quickly, 120 dB True WDR optimizes both the bright and dark areas of the scene at the same time to provide usable video.

Environmental
• With a built-in heater and a temperature range of -40 to 140°F, the Lite series 40212TNI camera is designed to handle environments with extreme temperatures. The camera is rated IK10 for vandal resistance, meaning it can withstand the equivalent of 11 lb of force dropped from a height 15.75" and is IP66 rated for outdoor use.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology 40212TNI Specs

Memory	1024 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 128 GB)
Pan/Tilt	Manual Pan: 360° at 300°/s Remote Pan: 360° at 300°/s Manual Tilt: 92° (-2 to 90°) at 120°/s Remote Tilt: 92° (-2 to 90°) at 200°/s
Alarm I/O	2 / 1
I/O Connections	1 x RJ45
IR Illuminators	None
Video Management Software	IVS
Certifications	CSA, EN 55024, FCC (Part 15 Class B), IEC60950-1, UL, as per Manufacturer
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	AC, PoE 802.3at (30 W)
Power Consumption	12 W (With Heater)
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-40 to 140°F / -40 to 60°C
IP Rating	IP66
IK Rating	IK10
