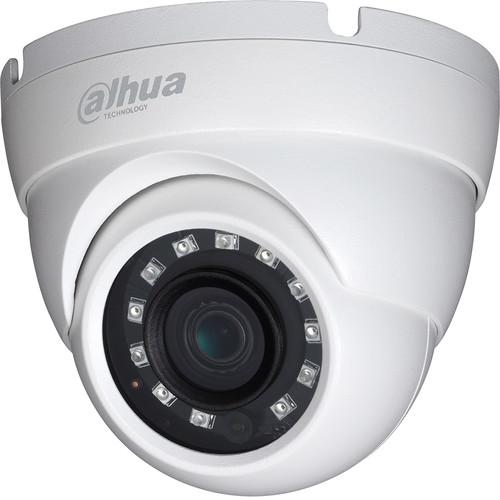

User Manual for Dahua Technology Lite Series A211K02 2MP Outdoor HD-CVI Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series A211K02 2MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Lite Series A211K02 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Move up to full HD without squandering your investment in coax cabling with the Lite Series A211K02 2MP Outdoor HD-CVI Dome Camera with Night Vision from Dahua Technology. Equipped with a 2MP CMOS eyeball sensor and a 2.8mm fixed lens, this camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 103° field of view. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 98'. Image enhancement features including digital wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions. Designed for outdoor use, the camera is housed in an IP67-rated weather-resistant enclosure. - 1/2.7" 2MP progressive-scan CMOS Sensor
- Up to 1920 x 1080 resolution at 30 fps
- Microcrystalline IR LEDs for low-light performance up to 98'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- HD-CVI, CVBS, AHD, and HD-CVI multiformat support
- Format selectable via OSD menu or output cable switch
- Built-in heater for use in cold environments
- Broad operating temperature range, -40 to 140°F
- IP67 rated for outdoor use
UPC: 819290025910 In the Box Dahua Technology Lite Series A211K02 2MP Outdoor HD-CVI Dome Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series A211K02 2MP Outdoor HD-CVI Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A211K02 Specs | | | Sensor | 1/2.7" CMOS, Eyeball | | Effective Pixels | 1920 x 1280, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/30 Second | | Minimum Illumination | Color: 0.02 Lux at f/1.85 (30 IRE)
0 Lux with IR On | | S/N Ratio | >65 dB | | IR Range | 98.04' / 30 m | | IR Control | Auto, Manual | | IR LEDs | 12 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.85 | | Horizontal Angle of View | 103° | | Close Focus Distance | 35.43" / 900 mm | | | | Detect | 121' / 37 m at 8 ppf | | Observe | 49' / 15 m at 19 ppf | | Recognize | 26' / 8 m at 38 ppf | | Identify | 13' / 4 m at 76 ppf | | | | Horizontal | 0 to 360° | | Vertical | 0 to 78° | | Rotation | 0 to 360° | | | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps at 1920 x 1080
30/60 fps at 1280 x 720 | | Output | 1 x BNC HD-CVI Channel
Switchable to CVBS, AHD, or HD-TVI | | Transmission | Over RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
Over RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
Over Cat 6 UTP (Separately Available Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m | | Day/Night | Auto (IR Cut Filter), Manual | | OSD Menu | Multi-Language | | BLC Modes | BLC, HLC, DWDR | | WDR | Digital | | Gain Control | Automatic (AGC) | | Noise Reduction | 2D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Safety | EN55032, EN55024, EN50130-4
UL60950-1+CAN/CSA C22.2 No.60950-1 | | Electromagnetic Compatibility | FCC CFR 47 FCC Part 15 Subpart B
ANSI C63.4-2014 | | | | Power Supply | 12 VDC ±30% | | Maximum Power Consumption | 3.3 W | | | | Operating/Storage Temperature | -40 to 140°F / -40 to 60° C
Startup: Above -40°F / -40°C | | Operating/Storage Humidity | 90% RH Maximum | | Ingress Protection | IP67 | | | | Casing | Aluminum | | Dimensions (Ø x H) | 3.68 x 3.13" / 93.4 x 79.4 mm | | Weight | 0.6 lb / 0.27 kg |
