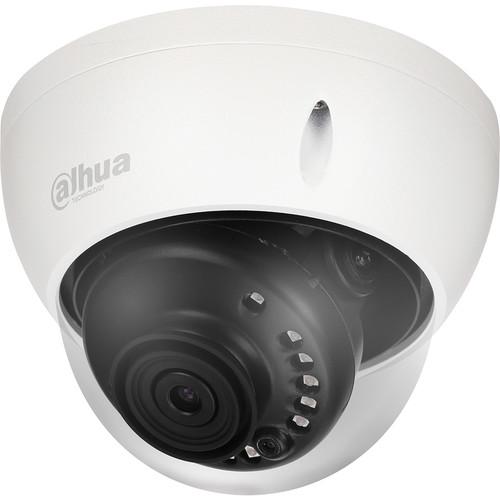

Product description Move up to full HD video over coax cabling with the Lite Series A21CL02 2MP Outdoor HD-CVI Dome Camera with Night Vision from Dahua Technology. Featuring a 2MP CMOS sensor and a 2.8mm fixed lens, this camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 106° field of view. The camera uses Starlight technology to deliver color video in low-light conditions down to 0.005 lux. Moreover, it has an IR cut filter and IR LEDs for night vision with an effective range of up to 98'. Designed for use in vandal-prone outdoor locations, the camera is housed in an IP67- and IK10-rated enclosure. - 1/2.8" 2MP progressive-scan CMOS Sensor
- Up to 1920 x 1080 resolution at 30 fps
- Starlight technology and IR LEDs for low-light performance up to 98'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- HD-CVI, CVBS, AHD, and HD-CVI multiformat support
- Format selectable via OSD menu or output cable switch
- Built-in heater for use in cold environments
- Broad operating temperature range, -40 to 140°F
- ±30% input voltage tolerance
- IP67 rated for outdoor use
- IK10-rated vandal resistance
UPC: 819290026320 In the Box Dahua Technology Lite Series A21CL02 2MP Outdoor HD-CVI Dome Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series A21CL02 2MP Outdoor HD-CVI Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A21CL02 Specs | | | Sensor | 1/2.8" CMOS | | Effective Pixels | 1920 x 1280, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/30 Second | | Minimum Illumination | Color: 0.005 Lux at f/1.6 (30 IRE)
0 Lux with IR On | | S/N Ratio | >65 dB | | IR Range | 98.43' / 30 m | | IR Control | Auto, Manual | | IR LEDs | 12 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.6 | | Horizontal Angle of View | 106° | | Close Focus Distance | 23.6" / 600 mm | | | | Detect | 127' / 39 m at 8 ppf | | Observe | 51' / 15 m at 19 ppf | | Recognize | 25' / 8 m at 38 ppf | | Identify | 13' / 4 m at 76 ppf | | | | Horizontal | 0 to 355° | | Vertical | 0 to 65° | | Rotation | 0 to 355° | | | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps at 1920 x 1080
30/60 fps at 1280 x 720 | | Output | 1 x BNC HD-CVI Channel
Switchable to CVBS, AHD, or HD-TVI | | Transmission | Over RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
Over RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
Over Cat 6 UTP (Separately Available Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m | | Day/Night | Auto (IR Cut Filter), Manual | | OSD Menu | Multi-Language: Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, and Spanish | | BLC Modes | BLC, HLC, DWDR | | WDR | Digital | | Gain Control | Automatic (AGC) | | Noise Reduction | 2D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Safety | UL60950-1+CAN/CSA C22.2 No.60950-1 | | Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B
ANSI C63.4-2014
EN55032, EN55024, EN50130-4 | | | | Power Supply | 12 VDC ±30% | | Maximum Power Consumption | 3.1 W | | | | Operating/Storage Temperature | -40 to 140°F / -40 to 60° C | | Operating/Storage Humidity | 90% RH Maximum | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | | | Casing | Aluminum | | Dimensions (Ø x H) | 4.33 x 3.19 " / 109.9 x 81.0 mm | | Weight | 0.68 lb / 0.31 kg |
