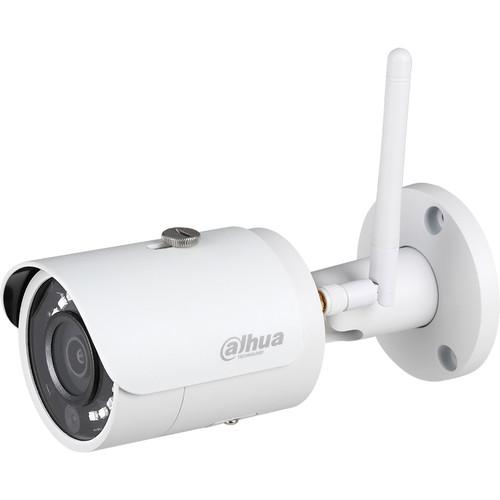

User Manual for Dahua Technology Lite Series N41BD12-W 4MP Outdoor Wi-Fi Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series N41BD12-W 4MP
- Product category: Wireless Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wireless Cameras
|
User manual for the Dahua Technology Lite Series N41BD12-W 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series N41BD12-W 4MP Outdoor Wi-Fi Network Bullet Camera with Night Vision from Dahua Technology uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 20 fps. Eighteen IR LEDs provide up to 98' of night vision. The 2.8mm fixed lens delivers a 106° horizontal field of view. This Wi-Fi camera is equipped with a 10/100M Ethernet port. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately.
This device is housed in an IP67-rated metal and plastic enclosure that is suitable for outdoor use. - IEEE 802.11a/b/g/n/ac wireless standard
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression
- Unicast and multicast streaming methods
- IR cut filter for true day and night functionality
- Auto and manual IR on/off control
- Backlight compensation, highlight compensation, and digital wide dynamic range
- Camera pivots horizontally from 0 to 360° & vertically from 0 to 90°
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for 4 zones (rectangular)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 areas (rectangular)
- Flip for 0, 90, 180, and 270°
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- NAS, local PC for instant recording, and microSD card (up to 128GB) edge storage
- IP67-rated metal and plastic enclosure that is suitable for outdoor use
- 2kV lightning protection and ±10% input voltage tolerance
- DORI Distance
-
- 207' / 63m (detect / 8 ppf)
- 82' / 25m (observe / 19 ppf)
- 43' / 13m (recognize / 38 ppf)
- 20' / 6m (identify / 76 ppf)
UPC: 819290024982 In the Box Dahua Technology Lite Series N41BD12-W 4MP Outdoor Wi-Fi Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series N41BD12-W 4MP Outdoor Wi-Fi Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N41BD12-W Specs | | | Image Sensor | 1/3" 4 MP progressive scan CMOS | | Effective Pixels (H x V) | 2688 x 1520 | | RAM | 512 MB | | ROM | 32 MB | | Electronic Shutter Speed | 1/100,000 to 1 sec (auto, manual) | | Minimum Illumination | Color: 0.53 lux at f/2.0 (1 sec, 30 IRE)
B&W: 0 lux at f/2.0 with IR on | | S/N Ratio | More than 50 dB | | IR Range | Up to 98.04' / 30 m | | IR Control | Auto and manual IR on/off control | | Number of IR LEDs | 18 | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 2.8mm | | Maximum Aperture | f/2.0 | | Field of View | Horizontal: 106°
Vertical: 56°
Diagonal: 127° | | Focus Control | Fixed | | | | Range | Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360° | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Streaming Capability | Two streams | | Resolutions | 4 MP (2560 x 1440), 3 MP (2304 x 1296), 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), VGA (640 x 480), QVGA (320 x 240) | | Frame Rates | Main Stream:
4 MP at 20 fps
3 MP, 1080p, 1.3 MP, and 720p at 30 fps
Sub Stream:
VGA or QVGA at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.265: 9 to 8448 kb/s | | Day/Night | Auto IR cut filter, color, B&W | | Backlight Compensation | Digital WDR, BLC, HLC | | White Balance | Auto, natural, street lamp, outdoor, manual | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Motion Detection | 4 zones, rectangular (off, on) | | Region of Interest | 4 zones (off, on) | | Smart IR | Supported | | Digital Zoom | 16x | | Flip | 0, 90, 180, and 270° | | Mirror | Off, on | | Privacy Masking | 4 areas, rectangular (off, on) | | | | Ethernet | RJ45, 10/100M | | Wi-Fi Connectivity | 2.4 GHz, IEEE 802.11a/b/g/n/ac | | Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast and multicast | | Maximum User Access | 10 / 20 users | | Edge Storage | NAS, local PC for instant recording, and microSD card slot (maximum 128 GB, available separately) | | Web Viewer | Internet Explorer, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS, Android | | | | Power Supply | 12 VDC, 1 A | | Power Consumption | <6.5 W | | Operating Conditions | 14 to 122°F / -10 to 50°C
Less than 95% RH | | Storage Conditions | 14 to 122°F / -10 to 50°C
Less than 95% RH | | IP Rating | IP67 | | Casing Material | Metal and plastic | | Certifications | Safety: UL 60950
Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B, 2AATL-8112MET | | Dimensions | 2.76 x 6.49" / 70 x 164.9 mm | | Weight | 0.84 lb / 0.38 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.25 x 4.3 x 3.9" |
