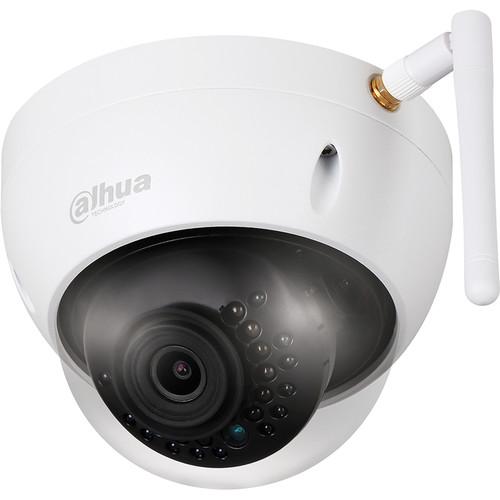

User Manual for Dahua Technology Lite Series N41BL12-W 4MP Outdoor Wi-Fi Network Mini Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series N41BL12-W 4MP
- Product category: Wireless Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wireless Cameras
|
User manual for the Dahua Technology Lite Series N41BL12-W 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Capture 4MP security video with the Lite Series N41BL12-W 4MP Outdoor Wi-Fi Network Mini Dome Camera with Night Vision from Dahua Technology. Featuring a 1/3" CMOS sensor and a 2.8mm fixed lens, this camera can record video at resolutions up to 2560 x 1440 at 20 fps in a 106 x 56° field of view. The camera has an IR cut filter and IR LEDs for night vision to a maximum effective range of 98'. Image enhancement features include digital wide dynamic range, automatic white balance, and backlight/highlight compensation to enable you to capture clear images in varying lighting conditions.
Wi-Fi connectivity provides wireless data transmission, making this camera easy to set up and relocate. Moreover, the camera is equipped with a microSD card slot for onboard storage of footage. Designed for use in vandal-prone outdoor locations, the camera is housed in an IP67- and IK10-rated enclosure. - 1/3" 4MP progressive scan CMOS sensor
- Up to 4MP (2560 x 1440) resolution at 20 fps
- H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient bandwidth and storage use
- Image flip in 90° increments
- Digital wide dynamic range
- Automatic IR cut filter for day/night functionality
- IR LEDs for night vision up to 98'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- 3D-DNR digital noise reduction
- Broad operating temperature range of 14 to 122°F
- ±10% input voltage tolerance
- IP67 rated for outdoor use
- IK10-rated vandal resistance
In the Box Dahua Technology Lite Series N41BL12-W 4MP Outdoor Wi-Fi Network Mini Dome Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series N41BL12-W 4MP Outdoor Wi-Fi Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N41BL12-W Specs | | | Sensor | 1/1.3" 4 MP CMOS | | Effective Pixels | 2688 x 1520 | | RAM/ROM | 512/32 MB | | Scanning System | Progressive | | Electronic Shutter Speed | Auto, Manual, 1/100,000 to 1 Second | | Minimum Illumination | Color: 0.53 Lux at f/2.0 (1 Second, 30 IRE)
0 Lux at f/2.0 with IR On | | S/N Ratio | >50 dB | | IR Range | 98.04' / 30 m | | IR Control | Auto, Manual | | IR LEDs | 24 | | | | Lens Type | Fixed | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/2.0 | | Angle of View | Horizontal: 106°
Vertical: 56°
Diagonal: 127° | | Focus Control | Fixed | | | | Detect | 207' / 63 m at 8 ppf | | Observe | 82' / 25 m at 19 ppf | | Recognize | 43' / 13 m at 38 ppf | | Identify | 20' / 6 m at 76 ppf | | | | Horizontal | 0 to 355° | | Vertical | 0 to 65° | | Rotation | 0 to 355° | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Streaming Capability | 2 Streams | | Resolution | 4 MP (2560 x 1440), 3 MP (2304 x 1296), 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), VGA (640 x 480), QVGA (320 x 240) | | Frame Rate | Main Stream:
20 fps at 4 MP
30 fps at 3 MP, 1080p, 1.3 MP, or 720p
Sub Stream:
30 fps at VGA or QVGA | | Bit Rate Control | CBR, VBR | | Maximum Bit Rate | H.265: 8448 kb/s | | Day/Night | Auto (IR Cut Filter), Color, B&W | | BLC Modes | BLC, HLC, Digital WDR | | White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | | Gain Control | Auto, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, On (4 Rectangular Zones) | | Region of Interest | Off, On (4 Zones) | | Smart IR | Yes | | Digital Zoom | 16x | | Flip | 0°, 90°, 180°, 270° | | Mirror | Off, On | | Privacy Masking | Off, On (4 Rectangular Areas) | | | | Ethernet | RJ45 (10/100BaseT) | | Wi-Fi | 2.4 GHz Wi-Fi (IEEE 802.11a/b/g/n/ac) | | Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP | | Interoperability | PSIA, CGI | | Streaming Method | Unicast, Multicast | | Maximum User Access | Unicast: 10 Users
Multicast: 20 Users | | Edge Storage | Network Attached Storage (NAS)
Local PC for Instant Recording
microSD card Slot Supports up to 128 GB (microSD Cards Available Separately) | | Web Viewer | Internet Explorer, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile Operating Systems | iOS, Android | | | | Safety | UL 60950 | | Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B
2AATL-8112MET | | | | Power Supply | 12 VDC, 1 A | | Maximum Power Consumption | 6.5 W | | | | Operating/Storage Temperature | 14 to 122°F / -10 to 50° C | | Operating/Storage Humidity | 95% RH Maximum | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | | | Casing | Metal and Plastic | | Dimensions (Ø x H) | 4.3 x 3.4" / 110 x 88 mm | | Weight | 0.75 lb / 0.34 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.25 x 6.2 x 5.55" |
