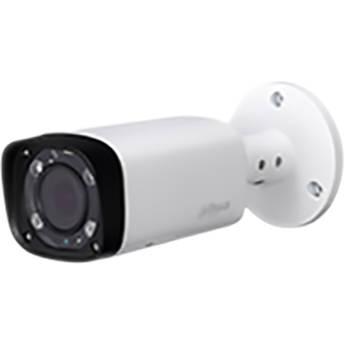

User Manual for Dahua Technology Lite Series N42AC3Z 4MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series N42AC3Z 4MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Lite Series N42AC3Z 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series N42AC3Z 4MP Outdoor Network Bullet Camera with Night Vision from Dahua Technology uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 20 fps. Four IR LEDs provide up to 197' of night vision. The 2.7-12mm motorized varifocal lens delivers a 100 to 35° horizontal field of view. An onboard memory card slot supports microSD cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - IR cut filter for true day and night functionality
- Auto and manual IR on/off control
- Smart H.264+ and H.264 video compression
- Unicast and multicast streaming methods
- 0.98' close focus distance
- 4.4x optical and 16x digital zoom
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for 4 zones (rectangular)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 areas (rectangular)
- Flip perspective for 0, 90, 180, and 270°
- Compatible with Internet Explorer, Firefox, Safari, iOS, and Android
- Smart PSS, DSS, and DMSS management software
- Records to local PC, microSD card, and NAS edge storage
- ±10% input voltage tolerance and 6kV lightning protection
UPC: 816116026632 In the Box Dahua Technology Lite Series N42AC3Z 4MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series N42AC3Z 4MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N42AC3Z Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.7 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.4x
Digital: 16x | | Lens Field of View | Horizontal: 100 to 35°
Vertical: 54 to 20° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | | | Streaming Resolution | 2688 x 1520 at 20 fps (8.19 Mb/s H.264)
2304 x 1296 at 30 fps | | Supported Video Compression | H.264, H.264+ | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 256 MB RAM / 16 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 196.85' / 60 m | | Video Management Software | SmartPSS, DSS, DMSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12.95 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 3.6 x W: 3.6 x L: 8.4" / H: 90.4 x W: 90.4 x L: 213.0 mm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.0 x 5.3 x 4.4" |
