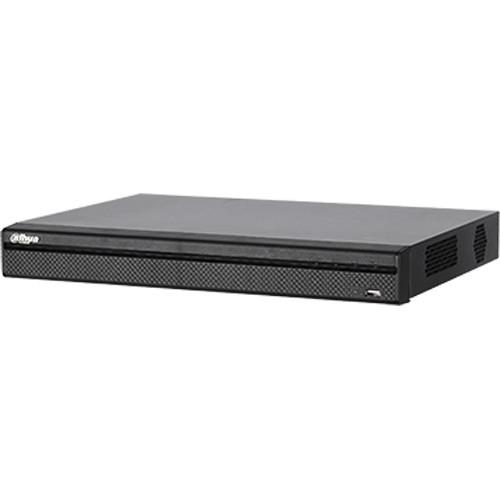

User Manual for Dahua Technology Lite Series N42B3P 16-Channel 4K UHD NVR with 1TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series N42B3P 16-Channel
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Lite Series N42B3P 16-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record from and manage up to 16 cameras with the Lite Series N42B3P 16-Channel 4K UHD NVR with 1TB HDD from Dahua Technology. This NVR supports IP cameras up to 8 MP. It has two SATA III ports that each support up to 8TB HDDs, for a maximum of 16TB (1TB HDD preinstalled). H.265, H.264, and MJPEG video compressions ensure high-quality recording and playback.
This NVR supports up to 128 users. An RCA audio I/O makes two-way talk possible. An HDMI and VGA port enables simultaneous video output to an external monitor (available separately). ONVIF compliance with version 2.4 offers interoperability with ONVIF IP cameras. - Embedded quad-core processor and Linux OS
- Automatic Network Replenishment (ANR) technology
- Simultaneous HDMI and VGA video outputs
- 200 MB/s maximum incoming bandwidth
- 4 alarm inputs and 2 relay outputs
- 1 x USB 2.0 and 1 x USB 3.0
- Smart Add functionality enables the NVR to automatically detect and list IP cameras connected to the same router as the NVR
- Compatible with iOS and Android
- Backup via USB device or network
- Intelligent Video System (IVS) Analytics
-
- Tampering with the camera
- Camera loses or changes focus drastically
- Memory card error
- Network error
- Unauthorized access
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
- Facial detection
- People counting
- Heat mapping
UPC: 816116027721 In the Box Dahua Technology Lite Series N42B3P 16-Channel 4K UHD NVR with 1TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series N42B3P 16-Channel 4K UHD NVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Lite Series Specs | | | Main Processor | Embedded Quad-Core Processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 16 | | Two-Way Talk | 1 x RCA Input
1 x RCA Output | | | | Interface | 1 x HDMI
1 x VGA | | Output Native Resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Maximum Decoding | Two Channels of 4K UHD / 6 MP at 30 fps
Three Channels of 5 MP at 30 fps
Four Channels of 4 MP/ 3 MP at 30 fps
Four Channels of 1080p at 30 fps
Eight Channels of 1080p at 60 fps
Sixteen Channels of 720p at 30 fps | | Multi-Screen Display | 1/4/8/9/16 | | On-Screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | | | | Compression | H.265, H.264, MJPEG | | Supported IP Camera Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, CIF | | Maximum Incoming Bandwidth | 200 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s per Channel | | Record Mode | Manual, Schedule (Regular, Continuous), Motion Detection (Video Detection, Motion Detection, Tampering, Video Loss), Stop | | Recording Intervals | 1 to 120 Minutes (Default: 60 Minutes)
Pre-Record: 1 to 30 Seconds
Post-Record: 10 to 300 Seconds | | | | Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips | | Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Tampering | | Alarm Inputs | 4
Low-Level Effective, Green Terminal Interface | | Relay Outputs | 2
NO/NC Programmable, Green Terminal Interface | | | | Sync Playback | 1/4/8/16 | | Search Modes | Time/Date, Alarm, MD and Exact Search (Accurate to One Second), Smart Search | | Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | | Backup Modes | USB Device, Network | | | | Brand Compatibility | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and Others | | | | Ethernet | 1 x RJ45 (10/100/1000M) | | PoE | 16 Ports (IEEE 802.3af/at) | | Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports Dahua IP Cameras, DVRs, and NVSes) | | Maximum User Access | 128 Users | | Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4.1, CGI Conformant | | | | HDD Support | 2 x SATA III Ports, 8 TB Capacity for Each Disk | | Installed HDD | 1 TB Preinstalled | | HDD Mode | Single | | | | USB | 1 x USB 3.0
1 x USB 2.0 | | RS-232 | 1 Port | | | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Consumption | <13.2 W without HDDs | | PoE Power | 25.5 W Single Port, 130 W Total | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | CE: EN55032, EN55024, EN60950-1
Safety: UL 60950-1, CAN/CSA C22.2 No.60960-1
Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B, ANSI C63.4-2014 | | Rack Units | 1 RU | | Dimensions | 14.8 x 11.1 x 2.2" / 375 x 281.5 x 56 mm | | Weight | 5.95 lb / 2.7 kg without HDDs |
