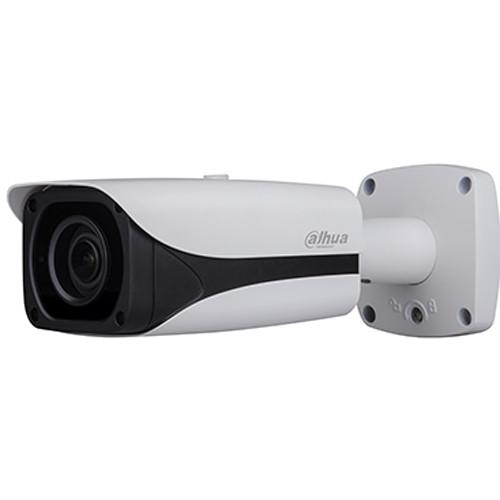

User Manual for Dahua Technology Lite Series N45BB5Z 4MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Lite Series N45BB5Z 4MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Lite Series N45BB5Z 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Lite Series N45BB5Z 4MP Outdoor Network Bullet Camera with Night Vision from Dahua Technology has a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Four IR LEDs provide up to 164' of night vision. The 2.7-12mm motorized varifocal lens delivers a 100-35° horizontal field of view and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- Camera pivots 0 to 360° horizontally & 0 to 90° vertically
- 4x optical and 16x digital zoom
- 0.98' close focus distance
- Backlight compensation, highlight compensation, and 120 dB true wide dynamic range
- Auto and manual gain control
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Motion detection for 4 zones (rectangle)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 zones (rectangle)
- Flip for 0, 90, 180, and 270°
- Two alarm inputs and one alarm output
- Compatible with Internet Explorer, Firefox, Safari, iOS, and Android
- Local PC for instant recording and NAS edge storage
- IP67-rated metal enclosure that is suitable for outdoor use
UPC: 816116026212 In the Box Dahua Technology Lite Series N45BB5Z 4MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Lite Series N45BB5Z 4MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N45BB5Z Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.7 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4x
Digital: 16x | | Lens Field of View | Horizontal: 100 to 35°
Vertical: 54 to 20° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.03 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90° | | | | Streaming Resolution | 2688 x 1520 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 32 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 164.04' / 50 m | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 11.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 3.8 x W: 3.7 x L: 10.8" / H: 96.4 x W: 95.0 x L: 273.2 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.295 lb | | Box Dimensions (LxWxH) | 14.6 x 6.9 x 6.8" |
