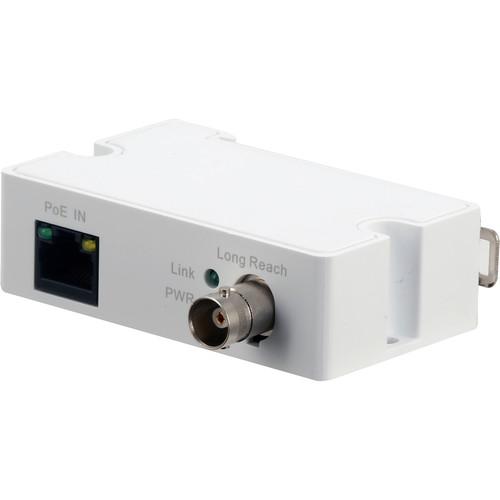

User Manual for Dahua Technology LR1002-1EC Single-Port EoC Extender Click to enlarge the picture
Contents of the user manual for the Dahua Technology LR1002-1EC Single-Port EoC Extender
- Product category: Ethernet Extenders Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Ethernet Extenders
|
User manual for the Dahua Technology LR1002-1EC Single-Port EoC Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Convert power signals between Ethernet and coax cables with the LR1002-1EC Single-Port EoC Extender (Receiver) from Dahua Technology. Enhanced Power over Ethernet (ePoE) technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables. The transmission range for this device is up to 3280'. Additionally, it extends EoC transmission ranges over long distances to devices (edge or head-end) without ePoE. Repeaters are not required thanks to ePoE technology. - Ethernet over Coaxial (EoC) technology
- Converts between Cat 5e/Cat 6 and coax cable transmission
- Enhanced Power over Ethernet (ePoE) technology enables long distance power and data transmission via Ethernet or coaxial cables up to 3280'
- Extends EoC long distance transmission to devices (edge or head-end) without ePoE
- ePoE technology converts existing coax-based analog systems into IP systems, reducing cable & peripheral device requirements, saving you time & money
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network standards
- Supports MDI/MDX self-adaptation
- Lightning protection in common mode (4kV) and differential mode (2kV)
UPC: 819290021653 In the Box Dahua Technology LR1002-1EC Single-Port EoC Extender (Receiver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology LR1002-1EC Single-Port EoC Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology LR1002-1EC Specs | Ports | Functional Ports
1 x 100M RJ45
1 x BNC | | Transmission Distance | 100 Mb/s: 1312' / 400 m
10 Mb/s: 3280' / 1000 m | | Bandwidth | Transmission Bandwidth via RG-59 Coax Cable
1312' / 400 m at 100 Mb/s
3280' / 1000 m at 10 Mb/s | | Power Consumption | <2 W | | PoE Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) | | Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 5 to 95% | | Lightning Protection | Common Mode: 4 kV
Differential Mode: 2 kV | | Dimensions (W x D x H) | 3.11 x 2.05 x 0.91" / 79 x 52 x 23 mm | | Weight | 1.34 lb / 0.61 kg | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.0" |
