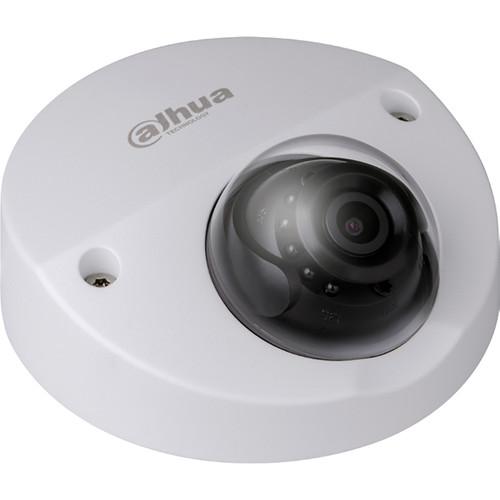

User Manual for Dahua Technology Mobile Series DH-HAC-HDBW2241FN-M 2MP Outdoor HD-CVI Wedge Dome Camera with 2.8mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Mobile Series DH-HAC-HDBW2241FN-M 2MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Mobile Series DH-HAC-HDBW2241FN-M 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Capture 2MP security video with the Mobile Series DH-HAC-HDBW2241FN-M 2MP Outdoor HD-CVI Wedge Camera with Night Vision with M12 connector from Dahua Technology. Featuring a 1/2.8" CMOS sensor and a 2.8mm fixed lens, this compact camera can record video at resolutions up to 1920 x 1080 at 30 fps in a 110° field of view. The camera has IR LEDs for night vision with an effective range of up to 66'. A built-in microSD card slot allows for onboard storage of footage, while a built-in microphone enables capture of audio, which is transmitted over coax along with the video. Designed for use in vandal-prone indoor or outdoor environments, the camera is housed in an IP67- and IK10-rated enclosure. - 1/2.8" 2MP progressive scan CMOS sensor
- Up to 1920 x 1080 resolution at 30 fps
- Starlight technology for enhanced performance in low-light conditions
- IR LEDs for night vision up to 66'
- Designed to minimize vibration and shock from normal driving
- 120 dB wide dynamic range
- Audio input plus built-in microphone
- Certified EN50155 to avoid image distortions and connection failures
- M12 aviation connector for stable MCVR connection
- Long-distance, real-time transmission via RG-59, RG-6, or Cat 6 UTP coax cabling (Cat 6 requires separately available balun)
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- Multi-language onscreen display
- Broad operating temperature range, -40 to 140°F
- ±30% input voltage tolerance
- Supports Power over Coax with PoC transceiver and transceiver power supply (available separately)
- IP67 and IP6K9K rated for weather resistance
- IK10-rated vandal resistance
UPC: 819290026641 In the Box Dahua Technology Mobile Series DH-HAC-HDBW2241FN-M 2MP Outdoor HD-CVI Wedge Dome Camera with 2.8mm Lens & Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Mobile Series DH-HAC-HDBW2241FN-M 2MP Outdoor HD-CVI Wedge Dome Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HDBW2241FN-M 2.8MM Specs | | | Sensor | 1/2.8" CMOS | | Effective Pixels | 1920 x 1080 (2 MP) | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/3 Second | | Minimum Illumination | 0.004 Lux at f/1.6, 30 IRE
0 Lux with IR On | | S/N Ratio | >65 dB | | IR Range | 65.62' / 20 m | | IR Control | Auto, Manual | | IR LEDs | 8 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.6 | | Horizontal Angle of View | 110° | | Close Focus Distance | 19.68" / 500 mm | | | | Detect | 128' / 39 m at 8 ppf | | Observe | 49' / 15 m at 19 ppf | | Recognize | 26' / 8 m at 38 ppf | | Identify | 13' / 4 m at 76 ppf | | | | Horizontal | 0 to 60° | | Vertical | 0 to 90° | | Rotation | 0 to 360° | | | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps at 1920 x 1080
30/60 fps at 1280 x 720 | | Output | 1 x HD-CVI Channel
M12 A-Coded Aviation Connector | | Transmission | Over RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
Over RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
Over Cat 6 UTP (Separately Available Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m | | Day/Night | Auto (IR Cut Filter), Manual | | OSD Menu | Multi-Language | | BLC Modes | BLC, HLC, WDR | | WDR | 120 dB | | Gain Control | Automatic (AGC) | | Noise Reduction | 2D/3D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Safety | UL60950-1+CAN/CSA C22.2 No.60950-1 | | Rolling Stock | EN 50155 (EN 50121-3-2, IEC61373) | | Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B
ANSI C63.4-2014
EN 55032, EN 55024, EN 50130-4 | | | | Audio | 1 Input Channel
Built-In Microphone | | Aviation Connector | 1: Power
2: Video Ground
3: Power Ground
4: Video | | | | Power Supply | 12 VDC ±30% | | Maximum Power Consumption | 3.6 W | | | | Operating/Storage Temperature | -40 to 140°F / -40 to 60° C
Startup: Above -22°F / -30°C | | Operating/Storage Humidity | 90% RH Maximum | | Ingress Protection | IP67, IP6K9K | | Vandal Resistance | IK10 | | | | Casing | Aluminum | | Dimensions (Ø x H) | 4.17 x 1.98" / 106.0 x 50.3 mm | | Weight | 0.68 lb / 0.31 kg |
