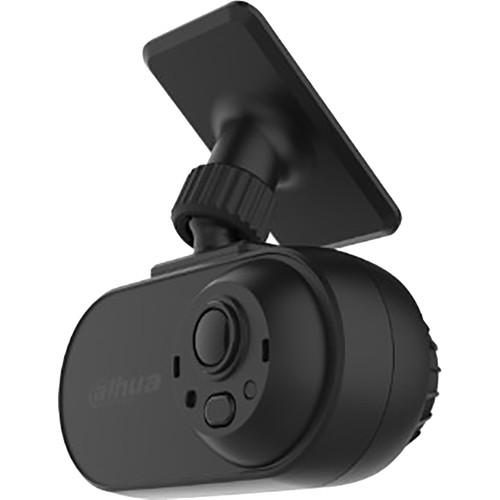

Product description Capture the scenes in front and behind a vehicle with the Mobile Series DH-HAC-HMW3200LN-FR 2MP HD-CVI Dual-Sensor Vehicle Camera with Night Vision from Dahua Technology. Featuring dual 2MP CMOS sensors, a 2.8mm front-facing lens, and a 2.1mm rear-facing lens, this camera captures two channels of video at resolutions up to 1920 x 1080 at 30 fps per channel. The front and rear lenses deliver fields of view of 116° and 139° respectively.
An integrated IR LED provides up to 9' of night vision. Additionally, the camera is equipped with a built-in microphone for capturing audio, which is transmitted over coax along with the video. - Rear- and front-facing dual 1/2.7" 2MP progressive scan CMOS sensors
- Two separate HD-CVI high-definition video outputs, switchable to SD
- Up to 1920 x 1080 resolution at 30 fps per channel
- Designed to minimize vibration and shock from normal driving
- Quick and easy installation with 3M double-sided tape (available separately), eliminating the need to damage assets with traditional installation methods
- Audio output on each HD-CVI video output channel
- Certified EN50155 to avoid image distortions and connection failures
- M12 aviation connector for stable MCVR connection
- Long-distance, real-time transmission via RG-59, RG-6, or CAT 6 UTP coax cabling (Cat 6 requires separately available balun)
- IR LED for night vision up to 9'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- Multi-language onscreen display
- Broad operating temperature range, -40 to 140°F
- Supports Power over Coax with one PoC transceiver and one transceiver power supply per channel (available separately)
- ±25% input voltage tolerance
- Compact shock-resistant casing
UPC: 819290023022 In the Box Dahua Technology Mobile Series DH-HAC-HMW3200LN-FR 2MP HD-CVI Dual-Sensor Vehicle Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Mobile Series DH-HAC-HMW3200LN-FR 2MP HD-CVI Dual-Sensor Vehicle Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HMW3200LN-FR 2.1MM Specs | | | Sensors | 2 x 1/2.7" CMOS | | Effective Pixels | 2 x 1920 x 1080 (2 MP) | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/30 Second | | Minimum Illumination | Color: 0.02 Lux at f/2.0
0 Lux with IR On | | S/N Ratio | >65 dB | | IR Range | 9.84' / 3 m | | IR Control | Auto, Color, B&W | | IR LEDs | 1 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | Front Lens: 2.8mm
Rear Lens: 2.1mm | | Maximum Aperture | f/2.0 | | Horizontal Angle of View | Front Lens: 116°
Rear Camera: 139° | | Focus Control | Front Camera: 15.75" / 400 mm
Rear Camera: 11.81" / 300 mm | | | | Detect | Front: 122.4' / 37.3 m at 8 ppf
Rear: 116.5' / 35.5 m at 8 ppf | | Observe | Front: 48.9' / 14.9 m at 19 ppf
Rear: 46.6' / 14.2 m at 19 ppf | | Recognize | Front: 24.6' / 7.5 m at 38 ppf
Rear: 23.3' / 7.1 m at 38 ppf | | Identify | Front: 12.1' / 3.7 m at 76 ppf
Rear: 11.5' / 3.5 m at 76 ppf | | | | Horizontal | 0 to 30° | | Vertical | 0 to 30° | | Rotation | 0 to 360° | | | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps at 1920 x 1080
30/60 fps at 1280 x 720 | | Output | 2 x BNC HD-CVI Channels
M12 A-Coded Aviation Connector | | Transmission | Over RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
Over RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
Over Cat 6 UTP (Separately Available Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m | | Day/Night | Front: Color
Rear: Electronic | | OSD Menu | Multi-Language | | BLC Modes | BLC, HLC, DWDR | | WDR | Digital | | Gain Control | Automatic (AGC) | | Noise Reduction | 2D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Safety | EN55032, EN55024, EN50130-4
UL60950-1+CAN/CSA C22.2 No.60950-1 | | Electromagnetic Compatibility | FCC CFR 47 FCC Part 15 Subpart B
ANSI C63.4-2014 | | Railway Applications | EN50155 (EN50121-3-2, IEC 61373) | | | | Audio | Built-In Microphone
Audio Output on Each HD-CVI Video Output Channel | | Aviation Connector | 1 Red: Power
2 White: Video Ground
3 Black: Power Ground
4 Yellow: Video | | | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 2.4 W | | | | Operating/Storage Temperature | -40 to 140°F / -40 to 60° C | | Operating/Storage Humidity | 90% RH Maximum | | | | Casing | Plastic | | Dimensions | 4.56 x 3.92 x 1.98" / 115.8 x 99.5 x 50.2 mm | | Weight | 0.29 lb / 0.13 kg |
