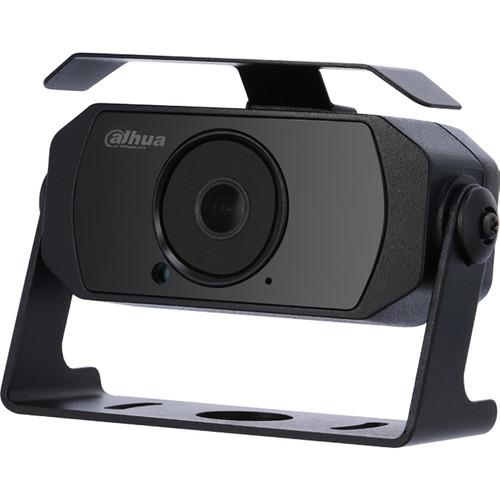

User Manual for Dahua Technology Mobile Series DH-HAC-HMW3200N 2MP Outdoor HD-CVI Vehicle Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Mobile Series DH-HAC-HMW3200N 2MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Mobile Series DH-HAC-HMW3200N 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Capture steady 2MP video in a moving vehicle with the Mobile Series DH-HAC-HMW3200N 2MP Outdoor HD-CVI Vehicle Camera with Night Vision from Dahua Technology. Featuring a 2MP CMOS sensor and a 2.8mm fixed lens, this camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 106° field of view. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 66'.
The camera is equipped with a built-in microphone for capturing audio, which is transmitted over coax along with the video. Suitable for interior and exterior applications, the camera is housed in an IP67-rated weather-resistant enclosure. - Designed to minimize vibration and shock from normal driving
- Horizontal mirror corrects scene orientation in preview and recorded video
- Certified EN50155 to avoid image distortions and connection failures
- 1/2.9" 2MP progressive scan CMOS Sensor
- M12 aviation connector for stable MVR connection
- Long-distance, real-time transmission via RG-59, RG-6, or CAT 6 UTP coax cabling (Cat 6 requires separately available balun)
- Up to 1920 x 1080 resolution at 30 fps
- IR LED for low-light performance up to 66'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- Multi-language onscreen display with image adjustment and function settings including backlight mode, day/night, white balance, privacy mask, and motion detection
- Broad operating temperature range, -40 to 158°F
- ±25% input voltage tolerance
- Shock-resistant aluminum casing
- IP67 rated for outdoor use
UPC: 819290020090 In the Box Dahua Technology Mobile Series DH-HAC-HMW3200N 2MP Outdoor HD-CVI Vehicle Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Mobile Series DH-HAC-HMW3200N 2MP Outdoor HD-CVI Vehicle Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HMW3200N 2.8MM Specs | | | Sensor | 1/2.9" CMOS | | Effective Pixels | 1920 x 1080, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/30 Second | | Minimum Illumination | Color: 0.02 Lux at f/2.0
0 Lux with IR On | | S/N Ratio | >65 dB | | IR Range | 65.62' / 20 m | | IR Control | Auto, Manual | | IR LEDs | 1 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/2.0 | | Horizontal Angle of View | 106° | | Close Focus Distance | 19.69" / 500 mm | | | | Horizontal | 0 to 360° | | Vertical | 0 to 180° | | | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps at 1920 x 1080
30/60 fps at 1280 x 720 | | Output | 1 x BNC HD-CVI Channel
M12 A-Coded Aviation Connector | | Transmission | Over RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
Over RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
Over Cat 6 UTP (Separately Available Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m | | Day/Night | Auto (IR Cut Filter), Manual | | OSD Menu | Multi-Language: Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, and Spanish | | BLC Modes | BLC, HLC, DWDR | | WDR | Digital | | Gain Control | Automatic (AGC) | | Noise Reduction | 2D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | Mirror | Default: Horizontal | | | | Safety | EN50155 (EN50121-3-2, IEC 61373)
EN55032, EN55024, EN50130-4
UL60950-1+CAN/CSA C22.2 No.60950-1 | | Electromagnetic Compatibility | FCC CFR 47 FCC Part 15 Subpart B
ANSI C63.4-2014 | | | | Interface | Built-In Microphone | | | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 2.9 W | | | | Operating/Storage Temperature | -40 to 158°F / -40 to 70° C | | Operating/Storage Humidity | 90% RH Maximum | | Ingress Protection | IP67 | | | | Casing | Aluminum | | Dimensions | 4.22 x 1.67 x 2.15" / 107.3 x 42.5 x 54.5 mm | | Weight | 0.68 lb / 0.31 kg |
