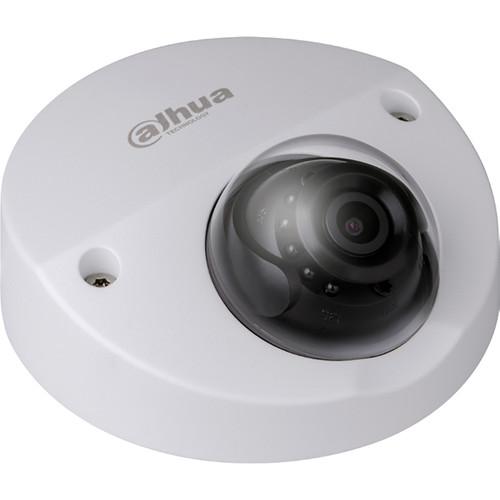

User Manual for Dahua Technology Mobile Series DH-IPC-HDBW4431FN-M 4MP Outdoor Network Wedge Camera with 2.8mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Mobile Series DH-IPC-HDBW4431FN-M 4MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Mobile Series DH-IPC-HDBW4431FN-M 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Capture 4MP security video with the Mobile Series DH-IPC-HDBW4431FN-M 4MP Outdoor Network Wedge Camera with Night Vision with RJ45 connector from Dahua Technology. Featuring a 1/3" CMOS sensor and a 2.8mm fixed lens, this compact camera can record video at resolutions up to 2688 x 1520 at 30 fps in a 104 x 57° field of view. The camera has IR LEDs for night vision with an effective range of up to 65'. Image enhancement features including a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, this camera incorporates PoE technology so you can run just one cable for both data and power. A built-in microSD card slot allows for edge storage, while a built-in microphone enables audio capture. The camera is rated IP67 and IK10 for weather and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - 1/3" 4MP progressive scan CMOS sensor
- Up to 2688 x 1520 resolution at 30 fps
- H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient bandwidth and storage use
- 0°, 90°, 180°, and 270° flip
- IR LEDs for night vision up to 65'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- 120 dB wide dynamic range
- Built-in IVS video analytics including Tripwire violation detection, intrusion detection, abandoned object detection, missing object detection, face detection, tamper detection, sudden scene change detection
- 3D-DNR digital noise reduction technology
- 512MB RAM and 32MB ROM memory
- Certified EN 50155 and E-mark (ECE regulation no. 10) for mobile applications
- Broad operating temperature range of -22 to 140°F
- ±30% input voltage tolerance
- IP67 rated for outdoor use
- IK10-rated vandal resistance
UPC: 819290024777 In the Box Dahua Technology Mobile Series DH-IPC-HDBW4431FN-M 4MP Outdoor Network Wedge Camera with 2.8mm Lens & Night Vision (RJ45) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Mobile Series DH-IPC-HDBW4431FN-M 4MP Outdoor Network Wedge Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDBW4431FN-M 2.8MM Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 104°
Vertical: 57° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.08 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 60°
Vertical: 0 to 80° | | | | Streaming Resolution | 2688 x 1520 at 30 fps (10.2 Mb/s H.264)
2688 x 1520 at 30 fps (9.98 Mb/s H.265) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Motion Detection, Tripwire Violation Detection, Intrusion Detection, Abandoned Object Detection, Missing Object Detection, Tamper Detection, Scene Change Detection, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | IR Range | 65.62' / 20 m | | Video Management Software | IVS, Smart PSS, DSS | | Certifications | FCC (Part 15 Class B), UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
