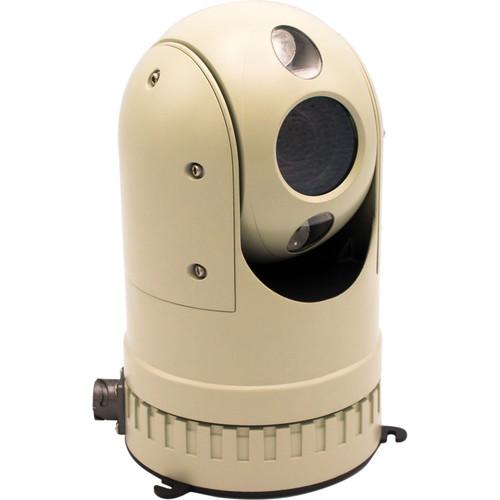

User Manual for Dahua Technology Mobile Series DHI-MPTZ1100-2030RA-NT 2MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Mobile Series DHI-MPTZ1100-2030RA-NT 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Mobile Series DHI-MPTZ1100-2030RA-NT 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Capture 2MP security video with the Mobile Series DHI-MPTZ1100-2030RA-NT 2MP Outdoor PTZ Network Dome Camera with Night Vision from Dahua Technology. Featuring a 1/2.8" CMOS sensor and a 4.5-135mm 30x zoom lens, this portable camera can record video at resolutions up to 1920 x 1080 at 30 fps in a 2.77 to 67.8° field of view. The camera has IR LEDs for night vision with an effective range of up to 262'. Image enhancement features including a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
This camera has PTZ functionality, with 360° endless pan, 110° tilt, and 30x optical zoom. It has a microSD card slot for edge storage, and is housed in an IP66-rated weather-resistant enclosure. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - 1/2.8" 2MP progressive scan CMOS sensor
- Up to 1920 x 1080 resolution at 30 fps
- H.264 video compression for efficient bandwidth and storage use
- 360° endless pan and 110° tilt
- Proportional pan/tilt speed to zoom ratio
- IR LEDs for night vision up to 262'
- 256 preset positions and 8 tours
- Up to 20 simultaneous users
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- 120 dB wide dynamic range
- Built-in IVS video analytics including Tripwire violation detection, intrusion detection, abandoned object detection, missing object detection, face detection, tamper detection, sudden scene change detection
- Street light compensation for natural colors when shooting under sodium-vapor lamps, which typically add a yellowish tint to scenes
- 3D-DNR digital noise reduction technology
- Certified EN 50155 and E-mark (ECE regulation no. 10) for mobile applications
- Broad operating temperature range of -31 to 140°F
- IP66-rated for outdoor use
UPC: 819290022964 In the Box Dahua Technology Mobile Series DHI-MPTZ1100-2030RA-NT 2MP Outdoor PTZ Network Dome Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Mobile Series DHI-MPTZ1100-2030RA-NT 2MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-MPTZ1100-2030RA-NT Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.5 to 135mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Optical: 30x
Digital: 16x | | Lens Field of View | Horizontal: 2.77 to 67.8° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Audio Formats | AAC, G.711, G.722, G.726, G.729, PCM | | Built-In Mic | No | | Built-In Speaker | No | | | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Motion Detection, Tripwire Violation Detection, Intrusion Detection, Abandoned Object Detection, Missing Object Detection, Tamper Detection, Scene Change Detection, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Manual Pan: 360° at 90°/s
Manual Tilt: 110° (-20 to 90°) at 60°/s | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | IR Range | 262.47' / 80 m | | Video Management Software | IVS, Smart PSS, DSS | | Certifications | FCC (Part 15 Class B), UL, as per Manufacturer | | Internal Storage | None | | Power Source | DC | | Power Consumption | 24 W | | Material of Construction | Aluminum | | Operating Temperature | -31 to 140°F / -35 to 60°C | | Storage Temperature | -31 to 140°F / -35 to 60°C | | Operating Humidity | 90% | | IP Rating | IP66 | | Dimensions |
