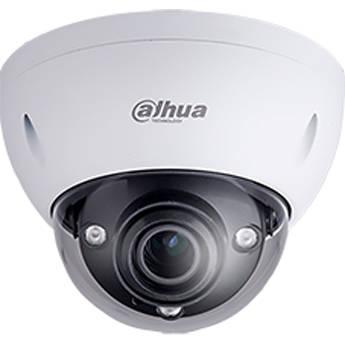

User Manual for Dahua Technology N25BL5Z Pro Series 2MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology N25BL5Z Pro Series 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology N25BL5Z Pro Series 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The N25BL5Z Pro Series 2MP Outdoor Network Dome Camera from Dahua Technology features H.265 video compression, reducing bandwidth and storage requirements without sacrificing video quality. It also features True Wide Dynamic Range and Smart IRs. The camera is housed in an IK10- and IP67-rated enclosure, making it suitable for outdoor installation. Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. The camera has four times the pixel density of 1080p devices. With an 8MP sensor, it delivers video capable of showing better details compared to standard HD devices. It delivers clear images even when shooting under sodium-vapor lamps that typically add a yellowish tint to the scene, hampering identification. This camera provides a built-in white balance mode that compensates for the tint to restore the scene to its original color. The H.265 video compression standard in this eyeball camera offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers improved compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering. With IR illumination, detailed images can be captured in varied lighting conditions. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. With a temperature range of -22 to 140°F, the camera is designed for extreme temperature environments. The camera is housed in an IP67-rated rugged enclosure thereby making it suitable for outdoor installation. -
- 1/2.8” 2MP progressive scan Exmor CMOS
- Smart H.265+ and H.264 triple-stream encoding
- 60 fps at 1080p (1920 x 1080)
- True WDR (Wide Dynamic Range) (120 dB) and day/night IR cut filter
- 2.7-12mm motorized lens
- Alarm and audio inputs/outputs
- Max. IR LED range of 164’
- microSD memory card slot for on-board storage
- PoE capable
- Built-in IVS for advanced analytics and detection
- IP67-rated
UPC: 816116026168 In the Box Dahua Technology N25BL5Z Pro Series 2MP Outdoor Network Dome Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology N25BL5Z Pro Series 2MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N25BL5Z Specs | | | Image Sensor | 1/2.8" 2 MP progressive scan CMOS | | Effective Pixels | 1920 x 1080 | | RAM | 256 MB | | ROM | 32 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.06 lux at f/1.4
B&W: 0 lux at f/1.4 (IR on) | | S/N Ratio | More than 50 dB | | IR Range | 164' (50 m) | | IR Control | Auto/manual | | IR LEDs | 3 | | | | Lens Type | Motorized / auto iris (DC) | | Mount Type | Board-in | | Focal Length | 2.7-12mm | | Maximum Aperture | f/1.4 | | Angle of View | Horizontal: 97 to 34°
Vertical: 52 to 20° | | Optical Zoom | 4x | | Focus Control | Motorized | | Close Focus Distance | 0.98' (0.30 m) | | | | Range | Pan: 0 to 355°
Tilt: 0 to 65°
Rotation: 0 to 355° | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264 | | Streaming Capability | 3 streams | | Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | | Frame Rate | Main Stream:
1080p (1 to 60 fps)
Sub Stream 1:
D1 (1 to 60 fps)
Sub Stream 2:
1080p (1 to 30 fps) | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 24 to 9472 kb/s
H.265: 14 to 5632 kb/s | | Day/Night | Auto (ICR), color, B&W | | BLC | BLC / HLC / WDR (120 dB) | | White Balance | Auto, natural, street lamp, outdoor, manual | | Gain Control | Auto / manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off / On (4 zone, rectangle) | | Region of Interest | Off / On (4 zones) | | Smart IR | Supported | | Digital Zoom | 16x | | Image Flip | 0° / 90° / 180° / 270° | | Mirror | Off / on | | Privacy Masking | Off / on (4 area, rectangle) | | | | Detection | Tripwire, intrusion, abandoned object, missing object, face detection | | | | Compression | G.711a / G.711Mu / AAC / G.726 | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast / multicast | | Maximum User Access | 10 users / 20 users | | Edge Storage | NAS, local PC for instant recording, microSD card (maximum 128 GB, available separately) | | Web Viewer | IE, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS and Android | | | | Safety | UL60950-1 | | Electromagnetic Compatibility | FCC Part 15 Subpart B | | | | Audio Interface | In: 1 channel
Out: 1 channel | | Alarm | In: 1 channel
Out: 1 channel | | | | Power Supply | 12 VDC, PoE (802.3af, class 0) | | Power Consumption | <12.5 W | | | | Operating Conditions | -22 to 140°F (-30 to 60°C), less than 95% RH | | Storage Conditions | -22 to 140°F (-30 to 60°C), less than 95% RH | | Ingress protection | IP67 | | Vandal Resistance | IK10 | | | | Casing | Metal | | Dimensions | 6.26 x 4.64" (159.1 x 117.9 mm) | | Weight | 1.96 lb (0.89 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 8.1 x 7.7 x 7.7" |
