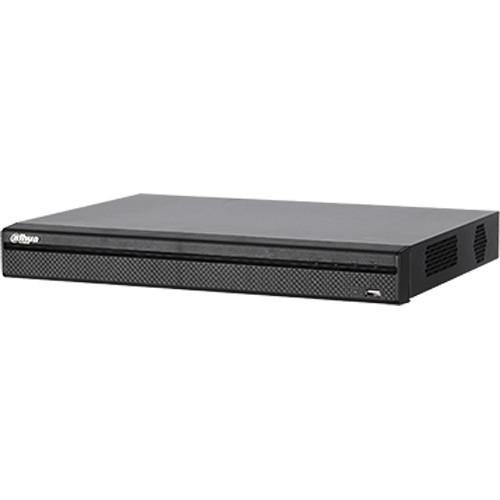

User Manual for Dahua Technology N42B2P Lite Series 8-Channel 8MP NVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology N42B2P Lite Series 8-Channel
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology N42B2P Lite Series 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record from and manage up to 8 cameras with the N42B2P Lite Series 8-Channel 8MP NVR with 6TB HDD from Dahua Technology at resolutions up to 3840 x 2160. Preinstalled with 6TB of HDD storage, the recorder can be expanded to host two HDDs up to 4TB each for a maximum internal capacity of 8TB. H.265, H.264, and MJPEG compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio is possible thanks to an audio input and output.
This NVR supports simultaneous HDMI and VGA outputs, as well as up to 128 users. ONVIF-compliance for version 2.4 enables interoperability when combined with 4K cameras. - Embedded quad-core processor and Linux OS
- HDMI and VGA simultaneous video output
- 10/100/1000M Ethernet port
- Supports Automatic Network Replenishment (ANR) technology
- Supports network cameras from Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, DynaColor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others
- Smart Add functionality enables the NVR to automatically detect and list IP cameras, simplifying the process of adding cameras to the NVR
- IVS (intelligent video system) recording for standard intelligence at-the-edge features, premium features to detect motion, tripwire and intrusion violations, and abandoned or missing objects, and advanced features for facial detection, people counting, and heat mapping
- Heat Map advanced IVS feature highlights areas with the highest concentration of people, and the data can be exported into a customized report to aid in business or forensic analysis
- Alarm inputs for 4 channels
- Trigger events include recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips
- Video detection includes motion detection, video loss, and tampering
- OSD for camera title, time, video loss, camera lock, motion detection, and recording
- 16 kb/s to 20 Mb/s bit rate per channel
- Dewarping mode corrects distortion in circular panoramic views from fisheye lenses
- 1 x USB 3.0 port & 1 x USB 2.0 port
- Backup via USB device and network
- Supports iOS and Android mobile devices
- Optional PFH101 rackmount tray available separately
UPC: 816116027707 In the Box Dahua Technology N42B2P Lite Series 8-Channel 8MP NVR with 6TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology N42B2P Lite Series 8-Channel 8MP NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Lite Series Specs | | | Main Processor | Embedded quad-core processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 8 channels | | Audio | 1 x RCA, 1-channel input
1 x RCA, 1-channel output | | | | Interface | 1 x HDMI
1 x VGA | | Resolutions | 3840 x 2160
1920 x 1080
1280 x 1024
1280 x 720
1024 x 768 | | Decoding | Maximum Decoding:
2 channels of 4K / 6 MP at 30 fps
3 channels of 5 MP at 30 fps
4 channels of 4/3 MP at 30 fps
4 channels of 1080p at 30 fps
8 channels of 1080p at 60 fps | | Display Split | 1/4/8/9 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | | | Compression | H.265, H.264, MJPEG | | Supported IP Camera Resolution | 8 MP
6 MP
5 MP
4 MP
3 MP
1080p
1.3 MP
720p
D1
CIF | | Maximum Bandwidth | 200 Mb/s incoming | | Bit Rate | 16 kb/s to 20 Mb/s per channel | | Recording Mode | Manual
Schedule (regular, continuous)
Motion detection (video detection, motion detection, tampering, video loss)
Stop | | Recording Intervals | 1 to 120 minutes, default 60 minutes
Pre-Recording: 1 to 30 seconds
Post-Recording: 10 to 300 seconds | | | | Triggers | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18)
Video loss & tampering | | Alarm Input | 4 channels
Low level effective, green terminal interface | | Relay Output | 2 channels
NO/NC programmable, green terminal interface | | | | Playback | 1/4/8 | | Search Modes | Time/date, alarm, motion detection & exact search (accurate to one second), smart search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device, network | | | | Standard Features | IVS Triggers:
Tampering with the camera
Camera loses or changes focus drastically
Error writing to an onboard microSD card
Error sending or receiving data over the network
Unauthorized access to the camera | | Premium Features | IVS Triggers:
Motion: An object moves through any part of the scene
Tripwire: A target crosses a user-defined line
Intrusion: A target enters or exits a defined perimeter
Scene Change: A person or object moves the camera to change the scene or covers the camera to obscure the scene
Abandoned/Missing Object: A target leaves an object in designated area, or a target removes an object from the same designated area | | Advanced Features | Recording Triggers:
Facial Detection: Detects and captures a snapshot of a human face in a defined area within a scene
People Counting: Measure the number of customers, visitors, or passengers in a surveillance scene
Heat Map: Generates a visual representation of data | | | | Third-Party Support | Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Ethernet | 1 x RJ45 port, 10/100/1000M | | PoE | 8 x ports, IEEE 802.3af/at | | Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search
Support for Dahua IP cameras, DVRs, NVS | | Maximum User Access | 128 users | | Mobile OS Support | iOS & Android | | Interoperability | ONVIF 2.4, CGI conformant | | | | Internal HDD | 2 SATA ports, total capacity up to 8 TB
6 TB preinstalled | | HDD Mode | Single | | | | USB | 1 x USB 3.0
1 x USB 2.0 | | | | Power Supply | 100-240 VAC, 60/50 Hz | | Power Consumption | NVR: <9.6 W, without HDD | | Total PoE Budget | 25.5 W single port, 130 W total | | Certifications | CE: EN55032, EN55024, EN60950-1 Safety: UL 60950-1, CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B, ANSI C63.4-2014 | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0-90% RH | | Rack Mount | 1 RU | | Dimensions | 14.8 x 12.9 x 2.1" / 375 x 327.5 x 53 mm | | Weight | Without HDD: 5.7 lb / 2.6 kg |
