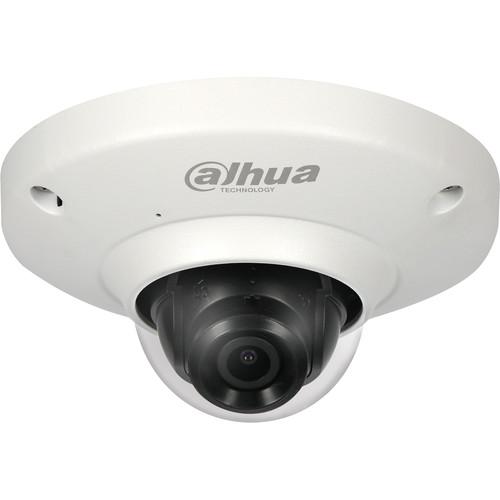

User Manual for Dahua Technology N55BS5 5MP Outdoor Network Panoramic Fisheye Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology N55BS5 5MP Outdoor Network
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology N55BS5 5MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The N55BS5 5MP Outdoor Network Panoramic Fisheye Camera from Dahua Technology is equipped with a 5MP 1/2.5" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 25 fps. Its 1.4mm varifocal lens has a 360° panoramic, horizontal field of view. Adjustable dewarping modes ensure that distortion in panoramic view in minimized. Audio recording is possible thanks to a built-in microphone. An integrated microSD slot supports cards up to 128GB. microSD cards are available separately. PoE technology simplifies connectivity by transmitting power and data via one cable. The camera is housed in an IP67-and IK08-rated metal enclosure that is suitable for outdoor use. - Dewarping modes to minimize distortion in panoramic view
- Dual stream encoding with Smart H. 265+ and H.264 dual codecs
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects
- Electronic day and night modes
- Backlight compensation, highlight compensation, and 120 dB true wide dynamic range
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Motion detection for up to 4 zones
- Auto and manual gain control
- Camera pivots 355° horizontally, and 75° vertically
- Detection range of 92'
Observation range of 36'
Recognition range of 20'
Identification range of 10' - Compatible with iOS, Android, Internet Explorer, Firefox, and Safari
- ROI (region of interest) for up to 4 zones
- Unicast and multicast streaming
- Signal-to-noise ratio >50 dB
- CBR and VBR bit rate control
- IP67- and IK08-rated metal enclosure that is suitable for outdoor use
UPC: 819290021813 In the Box Dahua Technology N55BS5 5MP Outdoor Network Panoramic Fisheye Camera Mounting Template 3 x Expansion Bolts 3 x Self-Tapping Screws Torx Wrench Waterproof Ethernet Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology N55BS5 5MP Outdoor Network Panoramic Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N55BS5 Specs | | | Sensor | 5 MP 1/2.5" CMOS | | Focal Length | 1.4mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 360°
Vertical: 180° | | Day/Night | Yes | | Minimum Illumination | Color: 0.02 Lux
B&W: 0.05 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 2560 x 1920 at 25 fps
2048 x 1536 at 30 fps
1600 x 1200 at 30 fps
1280 x 960 at 30 fps
704 x 480 at 30 fps
352 x 240 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | , 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Intelligent Video System | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 0 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 3.4 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK08 | | Dimensions |
