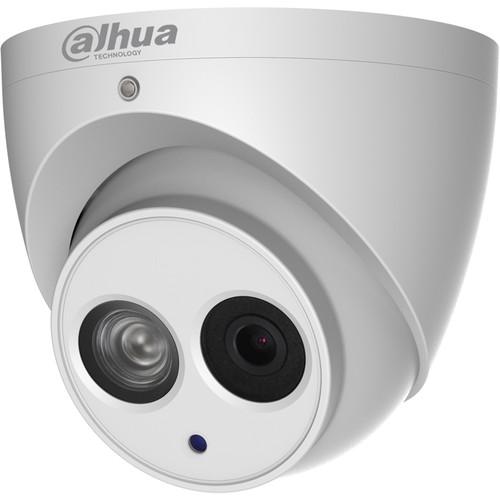

User Manual for Dahua Technology N64CG53 Pro Series 6MP Outdoor ePoE Network Mini Eyeball Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology N64CG53 Pro Series 6MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology N64CG53 Pro Series 6MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The N64CG53 Pro Series 6MP Outdoor ePoE Network Mini Eyeball Camera features a 1/2.9" progressive scan STARVIS CMOS sensor and 3.6mm fixed lens for capturing videos at a maximum resolution of 3072 x 2048. For environments with both bright and low-light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Built-in IVS (Intelligent Video System) features trigger an alarm and take a defined action for events such as tampering with the camera, errors sending or receiving data over the network, or unauthorized access to the camera. The camera also offers tamper detection by recognizing dramatic scene changes and generating a warning message to inspect the camera. The ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet. Enclosed in an IP67-rated housing, the camera can be used for both indoor and outdoor applications. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and a built-in IR LED with a range of up to 164&'. Smart H.265+ is the optimized implementation of the H.265 codec and the camera uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.264 video compression. With a temperature range of -22 to 140°F, the camera is designed for use in harsh temperature environments. With a ±30% input voltage tolerance, the camera can be used for outdoor applications with voltage fluctuations. The 6 kV lightning rating indicates the camera and its structure are protected from the effects of lightning. - 1/2.9" 6MP progressive scan STARVIS CMOS sensor
- Smart H.265+ and H.264 triple-stream encoding
- Maximum resolution of 6MP at 20 fps or 4MP at 30 fps
- Enhanced power and data transmission distances with ePoE
- True Wide Dynamic Range (120 dB) and day/night IR cut filter
- Maximum IR range of 164' with Smart IR
- IP67-rated weather-resistant
- IVS
- Detects tampering with the camera or unauthorized access to the camera
- Video Features
- Frame Rates: Main Stream: 6 MP at 20 fps or 4 MP at 30 fps / Sub Stream 1: D1 at 30 fps / Sub Stream 2: 720p at 30 fps
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 24 to 10,240 kb/s, H.265: 14 to 9984 kb/s
Day/Night: Auto (ICR), Color, B&W
BLC Mode: BLC, HLC, WDR (120 dB)
White Balance: Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control: Auto, Manual
Noise Reduction: 3D-DNR
Motion Detection: Off, On (4 Zones, Rectangle)
Region of Interest: Off, On (4 Zones)
Smart IR
Digital Zoom: 16x
Flip: 0°, 90°, 180°, 270°
Mirror: Off, On
Privacy Masking: Off, On (4 Areas, Rectangle) - Certifications
- Safety: UL60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B - Close Focus Distance
- 5.57' (1.70 m)
- DORI Distance
- 292' / 89 m (detect / 8 ppf)
118' / 36 m (observe / 19 ppf)
59' / 18 m (recognize / 38 ppf)
30' / 9 m (identify / 76 ppf) UPC: 819290021264 In the Box Dahua Technology N64CG53 Pro Series 6MP Outdoor ePoE Network Mini Eyeball Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology N64CG53 Pro Series 6MP Outdoor ePoE Network Mini Eyeball Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N64CG53 Specs | | | Sensor | 6 MP 1/2.9" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 69°
Vertical: 48° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.04 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 3072 x 2048 at 20 fps (10.24 Mb/s AVI via H.264)
2560 x 1440 at 30 fps (10.24 Mb/s AVI via H.264) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | , 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA | | Analytics | Tampering, Data Transmission Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | None | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 32 MB Flash | | Recording Media | None | | Pan/Tilt | Manual Pan: 360°
Manual Tilt: 78° (0 to 78°) | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45 | | IR Range | 164' / 49.99 m | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 7.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP67 | | Dimensions |
