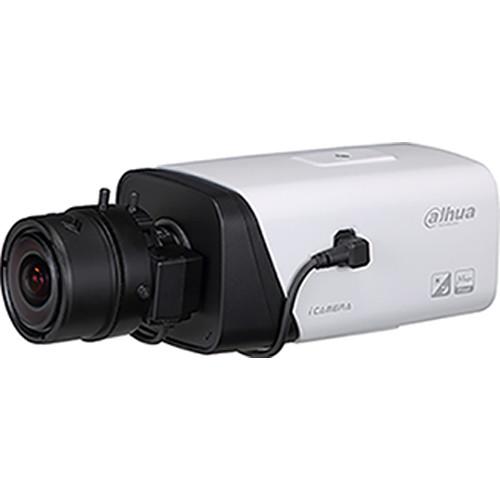

User Manual for Dahua Technology NK8BA4 Ultra Series 12MP DWDR Network Box Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology NK8BA4 Ultra Series 12MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology NK8BA4 Ultra Series 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The NK8BA4 Ultra Series 12MP DWDR Network Box Camera from Dahua Technology features a 1/1.7" progressive scan CMOS Sony STARVIS sensor. It uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving video quality. The camera features built-in business intelligence algorithms, auto back focus, PoE, and a microSD card slot. It supports H.265 and H.264 dual codec compression formats with triple-stream encoding. - Electronic Pan/Tilt/Zoom (ePTZ)
- It scans a portion of the scene and zooms in for a detailed view. Coupled with an ultra high resolution, ePTZ lets an operator monitor a large area from a single camera.
- Intelligent Video System (IVS)
- The camera uses an IVS analytic algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects. This algorithm lets the camera respond to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.
- Intelligent Business Analysis
- The built-in IVS features people counting and heat map functionality. Intelligent Analysis tracks and stores daily, weekly, monthly, and yearly people flow through a defined scene and produces a configurable report. The system uses this data to produce a heat map, a two-dimensional representation of data that provides an immediate visual summary of information. People counting and heat maps can identify the most active areas of a retail space, providing valuable data analysis for commercial applications.
UPC: 816116026403 In the Box Dahua Technology NK8BA4 Ultra Series 12MP DWDR Network Box Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology NK8BA4 Ultra Series 12MP DWDR Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Ultra Series Specs | | | Image Sensor | 1/1.7" 12 MP STARVIS CMOS | | Effective Pixels | H x V: 4000 x 3000 | | RAM | 1024 MB | | ROM | 128 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.01 lux at f/1.2
B&W: 0.001 lux at f/1.2 | | S/N Ratio | More than 50 dB | | Lens Mount | C, CS | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Streaming Capability | 3 | | Resolution | 12 MP (4000 x 3000), 4K (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), and CIF (342 x 240) | | Frame Rate | Main Stream: 12 MP at 20 fps or 4K at 30 fps
Sub Stream: D1 at 30 fps
Third Stream: 1080p at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 24 to 16,384 kbps
H.265: 14 to 9984 kbps | | Day/Night | Auto (ICR), Color, B&W | | Backlight Compensation | BLC, HLC, DWDR, SSA | | White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | | Gain Control | Auto, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off / On (4 Zone, Rectangle) | | Region of Interest | Off / On (4 Zone) | | Image Stabilization | Electronic | | Defog | Yes | | Digital Zoom | 16x | | Flip / Mirror | Flip: 0°, 90°, 180°, 270°
Mirror: Off, On | | Privacy Masking | Off, On (4 Area, Rectangle) | | | | Compression | G.711a, G.711Mu, AAC, G.726 | | | | Video | 1 x BNC | | Audio | In: 1-channel
Out: 1-channel
1 x built-in microphone | | RS-485 | 1 x RS-485 port | | Alarm | In: 2-channel
Out: 1-channel | | | | Ethernet | RJ45 (100/1000Base-T) | | Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast / Multicast | | Maximum User Access | 10 / 20 users | | Edge Storage | NAS (Network Attached Storage)
Local PC for instant recording
microSD card (maximum 128 GB) | | Web Viewer | IE, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Operating System | iOS, Android | | | | Safety | UL60950-1 | | Electromagnetic Compatibility | FCC Part 15 Subpart B | | | | Power Supply | 12 VDC, 24 VAC, PoE (802.3af, Class 0) | | Power Consumption | <8 W | | | | Operating Conditions | Temperature: -22 to 140°F (-30 to 60°C)
Humidity: Less than 95% RH | | Storage Conditions | Temperature: -22 to 140° F (-30 to 60°C)
Humidity: Less than 95% RH | | | | Casing | Metal | | Dimensions | 5.3 x 2.9 x 2.6" (135.4 x 74.4 x 65.5 mm) | | Weight | 1.46 lb (0.66 kg) | | | | Box Dimensions (LxWxH) | 9.84 x 5.31 x 4.33" |
