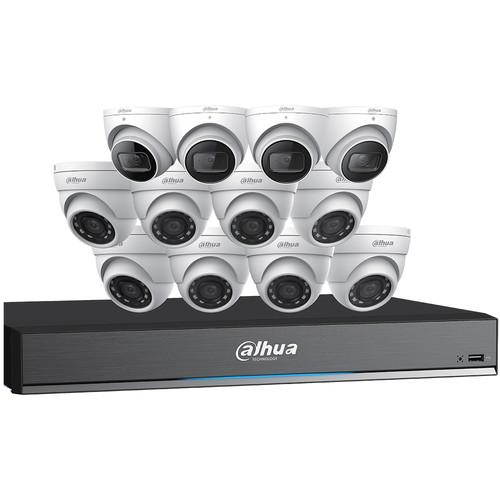

User Manual for Dahua Technology Pentabrid 16-Channel 8MP HD-CVI DVR with 4TB HDD, 4 8MP Turret Cameras & 8 5MP Turret Cameras Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pentabrid 16-Channel 8MP HD-CVI
- Product category: Surveillance Systems Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Surveillance Systems
|
User manual for the Dahua Technology Pentabrid 16-Channel 8MP HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor your home or business with the Pentabrid 16-Channel 8MP HD-CVI DVR with 4TB HDD, 4 8MP Turret Cameras & 8 5MP Turret Cameras from Dahua Technology. This DVR kit enables you to record from up to sixteen analog cameras. In addition, it has a 16-channel IP video input for network cameras up to 8MP.
The included 8MP turret cameras transmit 3840 x 2160 resolution video at 15 fps. They are each equipped with a 2.8mm fixed lens that delivers an 87° horizontal field of view. The cameras are IP67 rated for outdoor use.
The included 5MP turret cameras transmit 2592 x 1944 resolution video at 20 fps. They are each equipped with a 2.8mm fixed lens that delivers a 103° horizontal field of view. The cameras have a built-in heater and are IP67 rated for outdoor use. - X72A3A Pro Series Pentabrid 16-Channel 8MP HD-CVI DVR with 4TB HDD Stream and record up to 16 video channels with the X72A3A Pro Series Pentabrid HD-CVI DVR from Dahua Technology at resolutions up to 8MP. Equipped with two SATA ports, each supporting an HDD up to 10TB, this DVR can accommodate up to 20TB of HDD storage (4TB preinstalled). The recorder supports HD-CVI, AHD, HD-TVI, and SD analog cameras via its BNC interface. Additionally, it has a 16-channel IP video input for network cameras up to 8MP. With the help of H.265+, H.265, H.264+, and H.264 compression, file sizes are kept manageable while recording and playback quality are maintained.
The DVR's interface includes RCA ports for two-way audio communication, as well as HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. - VGA output at up to 1920 x 1080 resolution
- HDMI output at up to 4K UHD resolution (3840 x 2160)
- Self-adaptive HD-CVI/AHD/TVI/CVBS signal input
- 16 analog + 16 IP camera channels, each channel up to 8MP
- Up to 128 Mb/s incoming bandwidth
- Smart H.265+ and H.264 dual codec
- 1 x USB 3.0 and 1 x USB 2.0 ports
- Integrates with HD-CVI Internet of Things (IoT) devices to support multi-dimensional surveillance
- Spot output channel for secondary monitor
- Point of Sale (POS) support
- Smart fan design reduces fan noise and electrical consumption
- Intelligent Video System (IVS) built-in video analytics including intrusion detection, and detection of abandoned or missing objects
- Face detection functionality
UPC: 819290024500 - Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera with Night Vision & 2.8mm Lens The Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera from Dahua Technology uses a 1/2" progressive scan CMOS sensor to transmit up to 4K UHD resolution video at 15 fps. Two IR LEDs provide up to 164' of night vision. The 2.8mm fixed lens delivers an 87° horizontal field of view. This camera supports HD-CVI, TVI, AHD, and CVBS formats. It is equipped with a built-in microphone and an RCA audio input.
This camera is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use. - Simultaneously transmits video, audio, and data over a single coax cable
- Video transmission distance up to 3937.01'
- Starlight technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- Auto and manual focus control
- 70.87" close focus distance
- Camera pivots from 0 to 360° horizontally and from 0 to 70° vertically
- 120 dB wide dynamic range
- Backlight and highlight compensation
- Auto and manual IR on/off control
- Auto and manual white balance
- 4kV lightning protection and ±30% input voltage tolerance
- DORI Distance
-
- Detect (8 ppf): 276'
- Observe (19 ppf): 112'
- Recognize (38 ppf): 56'
- Identify (76 ppf): 27'
UPC: 819290024173 - A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater The A511K02 5MP Outdoor HD-CVI Turret Camera from Dahua Technology uses a 1/2.7" progressive scan CMOS sensor to transmit 2592 x 1944 resolution video at 20 fps. Twelve IR LEDs provide up to 98' of night vision. The camera's 2.8mm fixed lens delivers a 103° horizontal field of view. HD-CVI, HD-TVI, AHD, and CVBS formats are supported.
This camera is equipped with a built-in heater. It is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use. - Simultaneously transmits video, audio, and data over a single coax cable
- Compatible with Dahua HCVRs/DVRs
- Video transmission distance up to 3937'
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- 35.43" close focus distance
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- Backlight compensation, highlight compensation, and digital wide dynamic range
- Auto and manual white balance
- DORI Distance
-
- Detect (8 ppf): 207'
- Observe (19 ppf): 82'
- Recognize (38 ppf): 43'
- Identify (76 ppf): 20'
In the Box Bundle Items X72A3A Pro Series Pentabrid 16-Channel 8MP HD-CVI DVR with 4TB HDD vqstwqdxraaazvctczee 4 x Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera with Night Vision & 2.8mm Lens 8 x A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pentabrid 16-Channel 8MP HD-CVI DVR with 4TB HDD, 4 8MP Turret Cameras & 8 5MP Turret Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - X72A3A Pro Series Pentabrid 16-Channel 8MP HD-CVI DVR with 4TB HDD
| | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | | | Analog Camera Inputs | 16 x BNC | | HD-CVI | 8 MP, 6 MP, 4 MP, 1080p at 30 fps, 720p at 60/30 fps | | AHD | 5 MP, 4 MP, 3 MP, 1080p/720p at 30 fps | | HD-TVI | 5 MP, 4 MP, 3 MP, 1080p/720p at 30 fps | | CVBS | NTSC | | IP Camera Input | 16 + 16 channels, each channel up to 8 MP | | Audio | Input: 4 x RCA
Output: 1 x RCA | | Two-Way Talk | Reuse audio in/out, RCA | | | | Compression | Smart H.265+, H.265, Smart H.264+, and H.264 | | Recording Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 4 M-N (1280 x 1440), 1080p, 720p, 960H, D1, and CIF | | Recording Rate | Main Stream: 8 MP at 7 fps; 6 MP at 10 fps; 5 MP at 12 fps; 4 MP or 3 MP at 15 fps; 4 M-N, 1080p, 720p, 960H, D1, CIF, or QCIF at 30 fps
Sub Stream: 960H at 15 fps; D1 or CIF at 30 fps | | Maximum Incoming Bandwidth | 128 Mb/s | | Bit Rate | 32 to 6144 kb/s per channel | | Recording Modes | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, and Stop | | Recording Intervals | 1 to 60 minutes (default 60 minutes)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | Audio Compression | AAC (first channel only), G.711A, G.711U, and PCM | | Audio Sample Rate | 8 kHz, 16 bits per channel | | Audio Bit Rate | 64 kb/s per channel | | | | Interface | 1 x HDMI (3840 x 2160)
1 x VGA (1920 x 1080) | | Spot Output | HDMI or VGA, configurable | | Output Resolutions | HDMI: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, and 1024 x 768
VGA: 1920 x 1080, 1280 x 1024, and 1280 x 720 | | Maximum Decoding | 8 channels of 4K at 7 fps
8 channels of 6 MP at 10 fps
8 channels of 5 MP at 12 fps
16 channels of 4 MP or 3 MP at 7 fps
16 channels of 4 M-N or 1080p at 15 fps
16 channels of 720p or 960H at 30 fps | | Multi-Screen Display | IP Extension Mode Disabled: 1/4/8/9/16
IP Extension Mode Enabled: 1/4/8/9/16/25 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Interface | 1 x RJ45 port, 1000 Mb/s | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search (supports Dahua IP cameras, DVRs, and NVRs) | | Max. User Access | 128 users | | Compatible Mobile Operating Systems | iOS and Android | | Interoperability | ONVIF 16.12, CGI conformant | | | | Trigger Events | Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection, video loss, tampering, and diagnosis
MD Zones: 396 (22 x 18) | | Alarm Input | 16 channels | | Relay Output | 3 channels | | | | Playback | 1/4/9/16 | | Search Modes | Time/date, alarm, motion detection, and exact search
Accurate to 1 second | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device and network | | | | Internal HDD | 2 x SATA ports, up to 10 TB capacity for each disk
4 TB preinstalled | | | | USB | 1 x USB 2.0 port
1 x USB 3.0 port | | Serial | 1 x RS-485 port for PTZ control | | | | Power Supply | 12 VDC, 5 A | | Power Consumption | <20 W, without HDDs | | | | Operating Conditions | 14 to 131°F / -10 to 55°C
10 to 90% RH | | Storage Conditions | -4 to 158°F / -20 to 70°C
0 to 90% RH | | | | Installation | Desktop or rackmount | | Rack Height | 1 RU | | Dimensions | 14.8 x 11.3 x 2.1" / 37.5 x 28.7 x 5.3 cm | | Weight | 3.97 lb / 1.8 kg | | | | Box Dimensions (LxWxH) | 16.9 x 14.2 x 5.5" | - Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera with Night Vision & 2.8mm Lens
| | | Image Sensor | 1/2" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 3840 x 2160 | | Electronic Shutter Speed | 1/100,000 to 1/3 Seconds | | Minimum Illumination | Color: 0.005 lux at f/1.6, 30 IRE
B&W: 0 lux with IR | | S/N Ratio | >65 dB | | IR Range | 164' / 50 m | | IR Control | On/Off Control (Auto, Manual) | | Number of IR LEDs | 2 | | | | Lens Type | Fixed Lens, Fixed iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.6 | | Field of View | Horizontal: 87° | | Focus Control | Auto, Manual | | Close Focus Distance | 70.87" / 1800 mm | | | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 70°
Rotation: 0 to 360° | | | | Maximum Resolution | 3840 x 2160 | | Frame Rate | HD-CVI: 8 MP at 15 fps, 6 MP at 20 fps, 4 MP at 30 fps
HD-TVI: 5 MP at 20 fps, 4 MP at 30 fps
AHD: 5 MP at 20 fps, 4 MP at 30 fps
CVBS: 960H | | Video Output | 1 x HD-CVI (BNC, 4K UHD)
1 x CVBS (BNC, Switchable) | | Video Transmission Distance | RG-59/U:
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
4K UHD: 1640.42' / 500 m
RG-6/U:
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
4K UHD: 2296.59' / 700 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m
4K UHD: 984.25' / 300 m | | Day/Night | Auto IR Cut Filter/Manual | | OSD Menu | Multi-Language | | Backlight Compensation | BLC, HLC, True WDR | | WDR | 120 dB | | Automatic Gain Control | Supported | | Noise Reduction | 2D-DNR, 3D-DNR | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Audio | Built-In Microphone
1 x Audio Input (RCA) | | | | Power Supply | 12 VDC, ±30% | | Power Consumption | Maximum 8 W at 12 VDC (IR On) | | Operating Conditions | -22 to 140° / -30 to 360°C
Less than 90% RH | | Storage Conditions | -22 to 140° / -30 to 360°C
Less than 90% RH | | IP Rating | IP67 | | Casing | Aluminum | | Certifications | CE: EN55032, EN55024, EN50130-4
Safety: UL60950-1, CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 | | Dimensions (Diam. x H) | 4.17 x 3.9" / 106 x 99.2 mm | | Weight | 1.1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 4.25 x 4.25 x 4.25" | - A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater
| | | Image Sensor | 1/2.7" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 2592 x 1944 | | Electronic Shutter Speed | 1/100,000 to 1/30 Seconds | | Minimum Illumination | Color: 0.02 Lux at f/1.85, 30 IRE
B&W: 0 Lux with IR | | S/N Ratio | >65 dB | | IR Range | 98.04' / 30 m | | IR Control | On/Off Control (Auto, Manual) | | Number of IR LEDs | 12 | | | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.85 | | Field of View | Horizontal: 103° | | Close Focus Distance | 35.43" / 900 mm | | | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360° | | | | Resolution | 2592 x 1944 / 5 MP | | Frame Rate | 5 MP at 20 fps
4 MP at 30 fps
1080p at 30 fps | | Video Output | 1 x HD-CVI (BNC)
1 x CVBS, AHD, or HD-TVI (BNC, Switchable) | | Video Transmission Distance | RG-59/U:
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
4 MP: 1640.42' / 500 m
RG-6/U:
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
4 MP: 2296.59' / 700 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m
4 MP: 984.25' / 300 m | | Day/Night | Auto IR Cut Filter/Manual | | OSD Menu | Multi-Language | | Backlight Compensation | BLC, HLC, Digital WDR | | Automatic Gain Control | Supported | | Noise Reduction | 2D-DNR | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Power Supply | 12 VDC ±30% | | Power Consumption | Maximum 3.6 W at 12 VDC with IR | | Operating Conditions | -40 to 140°F / -40 to 60°C
Less than 95% RH | | Storage Conditions | -40 to 140°F / -40 to 60°C
Less than 95% RH | | Heater | Built-In | | IP Rating | IP67 | | Casing | Aluminum | | Certifications | Safety: EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014 | | Dimensions (Diam. x H) | Ø3.68 x 3.13" / Ø93.4 x 79.4 mm | | Weight | 0.62 lb / 0.28 kg |
