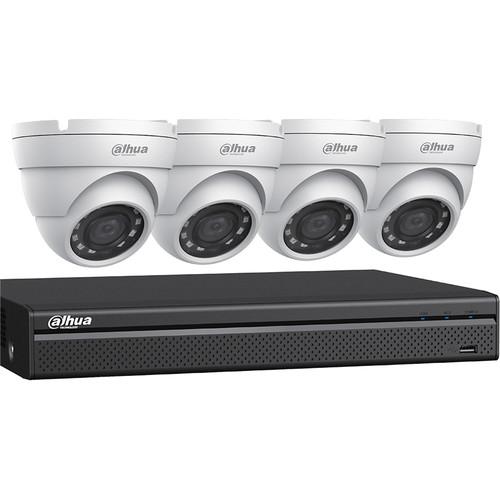

User Manual for Dahua Technology Pentabrid 4-Channel 8MP HD-CVI DVR with 2TB HDD & 4 5MP Outdoor Night Vision Turret Cameras Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pentabrid 4-Channel 8MP HD-CVI
- Product category: Surveillance Systems Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Surveillance Systems
|
User manual for the Dahua Technology Pentabrid 4-Channel 8MP HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor your home or business with the Pentabrid 4-Channel 8MP HD-CVI DVR with 2TB HDD and 4 5MP Outdoor Night Vision Turret Cameras from Dahua Technology. This DVR kit enables you to record from up to four analog cameras. It supports HD-CVI, HD-TVI, AHD, and CVBS signals. Additionally, it can record video from IP cameras at up to 8MP per channel. It comes preinstalled with a 2TB HDD. Storage is expandable to 10TB.
The included turret cameras transmit 2592 x 1944 resolution video at 20 fps. They are each equipped with a 2.8mm fixed lens that delivers a 103° horizontal field of view. The cameras have a built-in heater and are IP67 rated for outdoor use. - DVR Features
-
- Embedded processor and Linux OS
- Plug-and-play operation
- Smart H.265+, H.265, Smart H.264+, and H.264 video compressions
- Configurable recording options and schedules that save HDD space and active monitoring time
- Auto-detect camera inputs
- Up to 8MP camera recording per IP channel
- 24 Mb/s maximum incoming bandwidth
- HDMI and VGA video outputs
- Two-way audio supported
- Two USB 2.0 ports
- 100M RJ45 port
- RS-485 port for PTZ control
- ONVIF 16.12 compliant
- Compatible with iOS and Android
- Camera Features
-
- Simultaneously transmits video, audio, and data over a single coax cable
- Plug-and-play operation
- Built-in heater
- Compatible with Dahua HCVRs/DVRs
- Video transmission distance up to 3937'
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- 35.43" close focus distance
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- 0 to 360° rotation
- >65 dB S/N ratio
- Backlight compensation, highlight compensation, and digital wide dynamic range
- Automatic gain control
- 2D-DNR
- Auto and manual white balance
- Multi-language OSD menu
- Intelligent Analytics (IVS)
-
- Tripwire
- Intrusion
- Abandoned/missing object
- Facial detection
- Tripwire and Intrusion available on two channels
- Abandoned/missing object available on channel 1 and 2
- Facial detection available on one channel
- DORI Distance
-
- Detect (8 ppf): 207'
- Observe (19 ppf): 82'
- Recognize (38 ppf): 43'
- Identify (76 ppf): 20'
UPC: 819290026382 In the Box Dahua Technology Pentabrid 4-Channel 8MP HD-CVI DVR with 2TB HDD & 4 5MP Outdoor Night Vision Turret Cameras 4 x A511K02 5MP Outdoor HD-CVI Turret Camera with Night Vision & Heater zrrwcytdqsqtqadtdeqfrsadwf Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pentabrid 4-Channel 8MP HD-CVI DVR with 2TB HDD & 4 5MP Outdoor Night Vision Turret Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology C544E42 Specs | | | Main Processor | Embedded Processor | | Operating System | Embedded Linux | | Analog Camera Inputs | 4 x BNC | | HD-CVI | 8 MP, 6 MP, 5 MP, 4 MP, and 1080p at 30 fps
720p at 60 fps | | AHD | 5 MP, 4 MP, 3 MP, 1080p, and 720p at 30 fps | | HD-TVI | 5 MP, 4 MP, 3 MP, 1080p, and 720p at 30 fps | | CVBS | NTSC | | IP Camera Inputs | 4+2 Channels, Each Channel up to 8 MP | | Audio Input/Output | 1 x RCA Input
1 x RCA Output | | Two-Way Talk | Reuse Audio In/Out, RCA | | Compression | Smart H.265+, H.265, Smart H.264+, H.264 | | Recording Resolution | 4K UHD, 6 MP, 5 MP, 1920 x 2160, 4 MP, 3 MP, 1280 x 1440, 1920 x 1080, 1280 x 720, 960H, D1, CIF | | Recording Rates | Main Stream
Channel 1: 8 MP at 7 fps, 6 MP at 10 fps, 5 MP at 12 fps, 4 MP or 3 MP at 15 fps
Channels 2 to 4: 1920 x 2160 at 7 fps, 4 MP or 3 MP at 15 fps, 1280 x 1440 or 1920 x 1080 at 30fps
Sub Stream
960H at 15 fps, D1 or CIF at 30 fps | | Maximum Incoming Bandwidth | 24 Mb/s | | Bit Rate | 32 to 6144 kb/s per Channel | | Recording Modes | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | | Recording Intervals | 1 to 60 Minutes (Default 60 Minutes)
Pre-Record: 1 to 30 Seconds
Post-Record: 10 to 300 Seconds | | Audio Compression | AAC (First Channel Only), G.711A, G.711U, PCM | | Audio Sample Rate | 8 kHz, 16 bits per Channel | | Audio Bit Rate | 64 kb/s per Channel | | Interface | 1 x HDMI
1 x VGA | | Output Native Resolutions | HDMI: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 | | Maximum Decoding | 1 Channel of 8 MP at 30 fps
4 Channels of 4 MP at 15 fps
4 Channels of 1280 x 1440 at 30 fps | | Multi-Screen Display | IP Extension Mode Disabled: 1/4
IP Extension Mode Enabled: 1/4/6 | | OSD | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | | Network Interface | 1 x 100M RJ45 Port | | Network Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP Cameras, DVRs, and NVS) | | Maximum User Access | 128 Users | | Mobile OS Support | iOS, Android | | Interoperability | ONVIF 16.12, CGI Conformant | | Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips | | Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering, and Diagnosis | | Playback | 1/4 | | Search Modes | Time/Date, Alarm, MD and Exact Search (Accurate to One Second) | | Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom | | Backup Modes | USB Device, Network | | HDD Capacity | 1 x SATA Port up to 10 TB | | HDD Included | 2 TB | | USB | 2 x USB 2.0 Ports | | RS-485 | 1 x RS-485 Port for PTZ Control | | Power Supply | 12 VDC, 2 A | | Power Consumption | <10 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% RH | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | Safety: UL 60950-1, CE-LVD: EN 60950-1/IEC 60950-1
Electromagnetic Compatibility (EMC): FCC Part 15 Subpart B, EN 55032, EN 50130, EN 61000-3-2, EN 61000-3-3
Immunity: EN 55024:2010 | | Installation | Desktop | | Rackmount | Mini 1 RU | | Dimensions | 12.8 x 10 x 2.2" / 325 x 255 x 55 mm | | Weight | 2.6 lb / 1.2 kg | | | | Image Sensor | 1/2.7" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 2592 x 1944 | | Electronic Shutter Speed | 1/100,000 to 1/30 Seconds | | Minimum Illumination | Color: 0.02 Lux at f/1.85, 30 IRE
B&W: 0 Lux with IR | | S/N Ratio | >65 dB | | IR Range | 98.04' / 30 m | | IR Control | On/Off Control (Auto, Manual) | | Number of IR LEDs | 12 | | Lens Type | Fixed Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.85 | | Field of View | Horizontal: 103° | | Close Focus Distance | 35.43" / 900 mm | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360° | | Resolution | 2592 x 1944 / 5 MP | | Frame Rate | 5 MP at 20 fps
4 MP at 30 fps
1080p at 30 fps | | Video Output | 1 x HD-CVI (BNC)
1 x CVBS, AHD, or HD-TVI (BNC, Switchable) | | Video Transmission Distance | RG-59/U:
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
4 MP: 1640.42' / 500 m
RG-6/U:
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
4 MP: 2296.59' / 700 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m
4 MP: 984.25' / 300 m | | Day/Night | Auto IR Cut Filter/Manual | | OSD Menu | Multi-Language | | Backlight Compensation | BLC, HLC, Digital WDR | | Automatic Gain Control | Supported | | Noise Reduction | 2D-DNR | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | Power Supply | 12 VDC ±30% | | Power Consumption | Maximum 3.6 W at 12 VDC with IR | | Operating Conditions | -40 to 140°F / -40 to 60°C
Less than 95% RH | | Storage Conditions | -40 to 140°F / -40 to 60°C
Less than 95% RH | | Heater | Built-In | | IP Rating | IP67 | | Casing | Aluminum | | Certifications | Safety: EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014 | | Dimensions (Diam. x H) | Ø3.68 x 3.13" / Ø93.4 x 79.4 mm | | Weight | 0.62 lb / 0.28 kg | | | | Package Weight | 11.13 lb | | Box Dimensions (LxWxH) | 18.6 x 6.0 x 0.2" |
