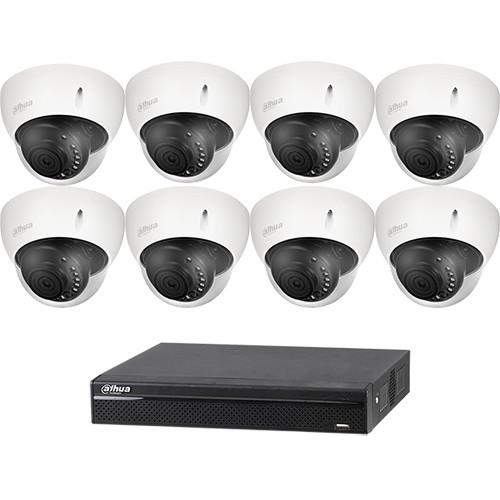

User Manual for Dahua Technology Pentabrid 8-Channel 1080p DVR with 2TB HDD & 8 2MP Outdoor Night Vision Dome Cameras Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pentabrid 8-Channel 1080p DVR
- Product category: Surveillance Systems Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Surveillance Systems
|
User manual for the Dahua Technology Pentabrid 8-Channel 1080p DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor your home or business with the Pentabrid 8-Channel 1080p DVR with 2TB HDD & 8 2MP Outdoor Night Vision Dome Cameras from Dahua Technology. This DVR kit enables you to record from up to eight analog cameras from HD-CVI, HD-TVI, AHD, or CVBS sources. In addition, recording from IP cameras is possible thanks to four IP camera inputs that can record up to 5MP per channel. The DVR comes with a preinstalled 2TB HDD to store recorded video from the included dome cameras. HDD storage is expandable to 6TB. Smart H.264+ and H.264 video compression keeps file sizes manageable while maintaining the best quality possible.
The included dome cameras are equipped with a 2.8mm fixed lens to capture video at 2MP resolution. They each feature a 106° field of view and 12 IR LEDs to deliver up to 98' of night vision. The cameras are each housed in an IP67- and IK10-rated aluminum enclosure, making them suitable for outdoor use in areas at risk of vandalism. - X21A2E Lite Series 8-Channel 1080p DVR with 2TB HDD The X21A2E Lite Series 8-Channel 1080p DVR with 2TB HDD from Dahua Technology allows you to record from up to eight analog cameras from HD-CVI, HD-TVI, AHD, or CVBS inputs, and up to four IP camera inputs via an Ethernet switch (available separately). This DVR can record analog video at up to 1080p resolution, or 5MP resolution when using IP cameras. HDMI and VGA outputs allow you to view footage live on a monitor (available separately). Offering Smart H.264+ compression, this DVR helps optimize network bandwidth to provide high-quality recording and playback. The Smart Search feature helps you quickly find the scene you're looking for in the included software. Connect the DVR to the internet to gain access to mobile viewing via the app for iOS and Android devices.
- Record from up to 12 cameras (8 analog, 4 IP)
- Preinstalled with 2TB HDD to store recorded video
- Up to 1080p or 5MP recording
- HDMI and VGA video outputs for local monitoring
- Mobile app for iOS and Android devices
UPC: 816116025376 - Lite Series 2MP Outdoor HD-CVI Dome Camera with 2.8mm Lens & Night Vision Keep an eye on a medium-sized outdoor area with the Lite Series 2MP Outdoor Analog HD Dome Camera from Dahua Technology. Its 2.8mm lens has a 106° horizontal field of view and features a 2MP 1/2.9" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The IR cut filter and built-in IR LEDs allow it to produce clear images of objects in complete darkness from up to 98' away. Wide dynamic range and automatic gain control help the camera produce accurate images in varying lighting conditions. The camera is housed in an IP67- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk environments.
- 2MP 1/2.9" CMOS sensor captures 1080p video at up to 30 fps
- Night vision up to 98' in complete darkness
- 2.8mm lens has a 106° field of view to monitor a medium-sized outdoor area
- WDR and AGC for clear images
- IP67- and IK10-rated enclosure for dust, water, and impact protection
UPC: 816116025086 In the Box Bundle Items X21A2E Lite Series 8-Channel 1080p DVR with 2TB HDD xtvzbwyycwsrywuadyvexqszstbrsu 8 x Lite Series 2MP Outdoor HD-CVI Dome Camera with 2.8mm Lens & Night Vision xtvzbwyycwsrywuadyvexqszstbrsu
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pentabrid 8-Channel 1080p DVR with 2TB HDD & 8 2MP Outdoor Night Vision Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - X21A2E Lite Series 8-Channel 1080p DVR with 2TB HDD
| | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | | | Interface | HDMI and VGA | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1, 4, 8, 9, 16 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Triggering | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion Detection Zones: 396 (22 x 18)
Video loss, tampering, diagnosis | | Alarm Input | 8 | | Relay Output | 3 | | | | Playback | 1, 4, 9 | | Search Modes | Date/time, alarm, motion detection, and exact search (accurate to 1 sec) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device, network | | | | Interface | 1 x SATA | | Storage Capacity | 2 TB HDD preinstalled, supports up to 6 TB | | | | USB | 1 x USB 2.0 Port 1 x USB 3.0 Port | | RS-485 | 1 x RS-485 for PTZ Control | | | | Supported | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Camera Inputs | 8 x BNC, 1 x RJ45 | | Audio Connections | Audio In: 8
Audio Out: 1 | | Two-way Audio | Reuse audio in (channel 1)/out, RCA | | | | Compression | Smart H.264+, H.264 | | Resolution | 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | | Record Rate (IPS) | Main Stream:
1080p at 1 to 15 fps or 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1 to 25/30 fps
Sub Stream:
D1, CIF, QCIF at 1 to 25/30 fps | | Bit Rate | 1 to 6144 kbps per channel | | Audio Record Mode | Manual, schedule (regular, continuous), motion detection (video detection: motion detection, video loss, tampering), alarm, and stop | | Record Length | 1 to 60 min (Default: 60 min)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | | | Interface | 1 x RJ45 port 100 Mbps | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVRs) | | Bandwidth | Incoming: 48 Mbps maximum | | Maximum User Access | 128 users | | Mobile OS Support | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | | | Power Supply | 12 VDC, 2 A | | Power Consumption | <10 W (without HDD) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C), 86 to 106 kpa | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% RH | | | | Installation | Desktop installation | | Dimensions | 1U, 12.8 x 10 x 2.2" (32.5 x 26 x 5.5 cm) | | Weight | 3.3 lb (1.5 kg) without HDD | | | | Box Dimensions (LxWxH) | 14.6 x 12.0 x 4.6" | - Lite Series 2MP Outdoor HD-CVI Dome Camera with 2.8mm Lens & Night Vision
| | | Image Sensor | 2 MP 1/2.9" CMOS sensor | | Effective Pixels (H x V) | 1920 x 1280 | | Electronic Shutter | 1/30 to 1/100,000 sec | | Synchronization | Internal | | Minimum Illumination | Color: 0.02 lux at f/2.0
IR LEDs On: 0 lux | | Number of IR LEDs and Range | 12 x smart IR LEDs, up to 98' / 30 m | | IR Control | Auto, manual | | Day/Night | Auto (ICR), color, B&W | | | | Type | Fixed lens, fixed iris | | Lens Mount Type | Board-in | | Lens | 2.8mm | | Aperture | f/2.0 | | Field of View | Horizontal: 106° | | Close Focus Distance | 19.7" / 50 cm | | Adjustments | Pan: 0 to 355°
Tilt: 0 to 65°
Rotation: 0 to 355° | | | | Resolution | 1080p (1920 x 1080) | | Frame Rate | 30 fps at 1080p, 30/60 fps at 720p | | Video Output | 1 x BNC HD-CVI output
1 x BNC CVBS, AHD, or HD-TVI output (switchable) | | Maximum Video Transmission Range | RG-59/U Coax:
720p: 2625' / 800 m
1080p: 1640' / 500 m
RG-6/U Coax:
720p: 3937' / 1200 m
1080p: 2625' / 800 m
Cat 6 UTP (Balun Required and Available Separately):
720p: 1476' / 450 m
1080p: 984' / 300 m | | OSD Menu | Multi-language | | Backlight Compensation | BLC, HLC, DWDR | | Wide Dynamic Range | Digital wide dynamic range | | Gain Control | AGC | | Digital Noise Reduction | 2D-DNR | | White Balance | Auto, manual | | Smart IR | Auto, manual | | | | Certifications | EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1, FCC CFR 47, FCC Part 15 Subpart B, ANSI C63.4-2014 | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 2.6 W (12 VDC with IR LEDs on) | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <95% RH | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | <95% RH | | IP Rating | IP67 | | IK Rating | IK10 | | Material | Aluminum | | Dimensions | 4.3 x 3.2" / 110 x 81 mm | | Weight | 0.7 lb / 0.3 kg | | | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 4.5" |
