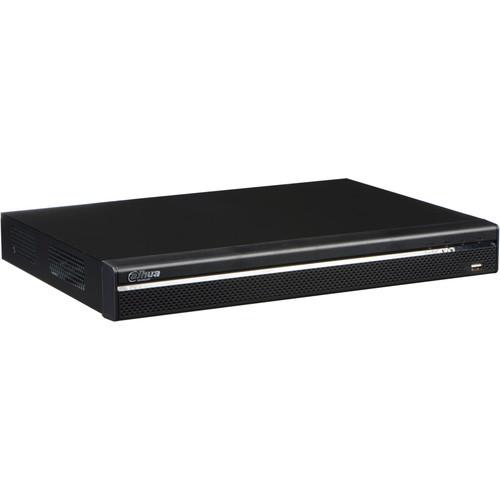

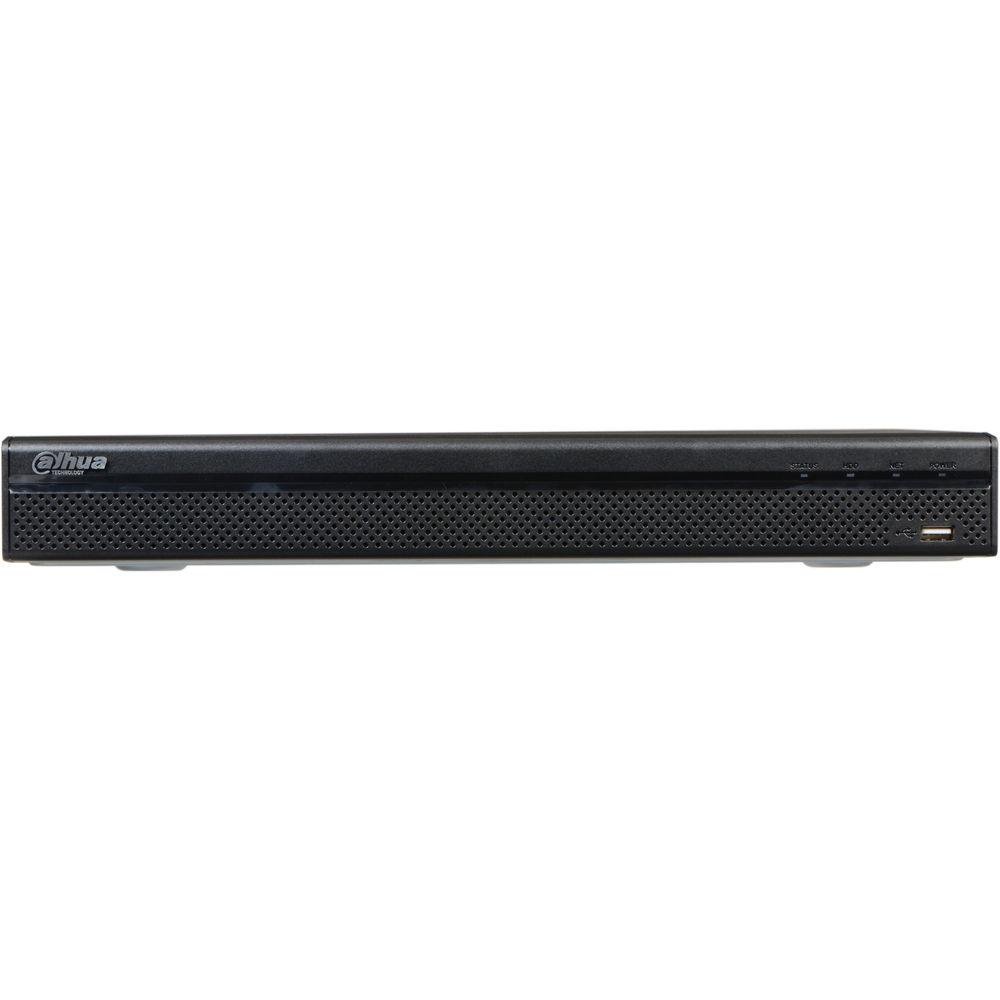

Product description The Pro Series 16-Channel 1080p Pentabrid DVR with 6TB HDD from Dahua Technology features 16 BNC inputs that support HD-CVI, AHD, TVI, and composite analog video formats. You can simultaneously connect cameras with different formats and record 1920 x 1080 resolution video at up to 15 fps from each camera and 1280 x 720 or lower at up to 30 fps. Dahua and numerous third-party cameras are supported. The BNC connections allow you to use coaxial cables to transmit signals over extended distances.
This DVR supports an additional 8 IP cameras via a PoE switch, sold separately, and records in up to 5MP resolution from each. With such a PoE switch incorporated, you can record from up to 24 cameras at the same time — 16 analog and 8 IP. The DVR includes 6TB of pre-installed HDD storage and is upgradeable to a total of 16TB.
The DVR has simultaneous HDMI and VGA video outputs, offers dual-stream H.264+/H.264 compression, and is compatible with iOS and Android for access via your mobile device. - Key Features
-
- 16 HD-CVI/AHD/TVI/CVBS BNC auto-detect camera inputs
- Support for extended-length coax cables
- Record 1920 x 1080 resolution at up to 15 fps or 1280 x 720 or lower at up to 30 fps
- Support for an additional 8 IP cameras via an optional PoE switch
- Up to 5MP IP camera recording
- Upgradeable up to 16TB of HDD storage
- Simultaneous HDMI and VGA video outputs
- Dual stream H.264+/H.264 compression
- Compatible with iOS and Android mobile operating systems
- ONVIF 2.4.1 compliant
- Intelligent Analytics (IVS)
-
- Standard
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
UPC: 816116025529 In the Box Dahua Technology Pro Series 16-Channel 1080p Pentabrid DVR with 6TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 16-Channel 1080p Pentabrid DVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

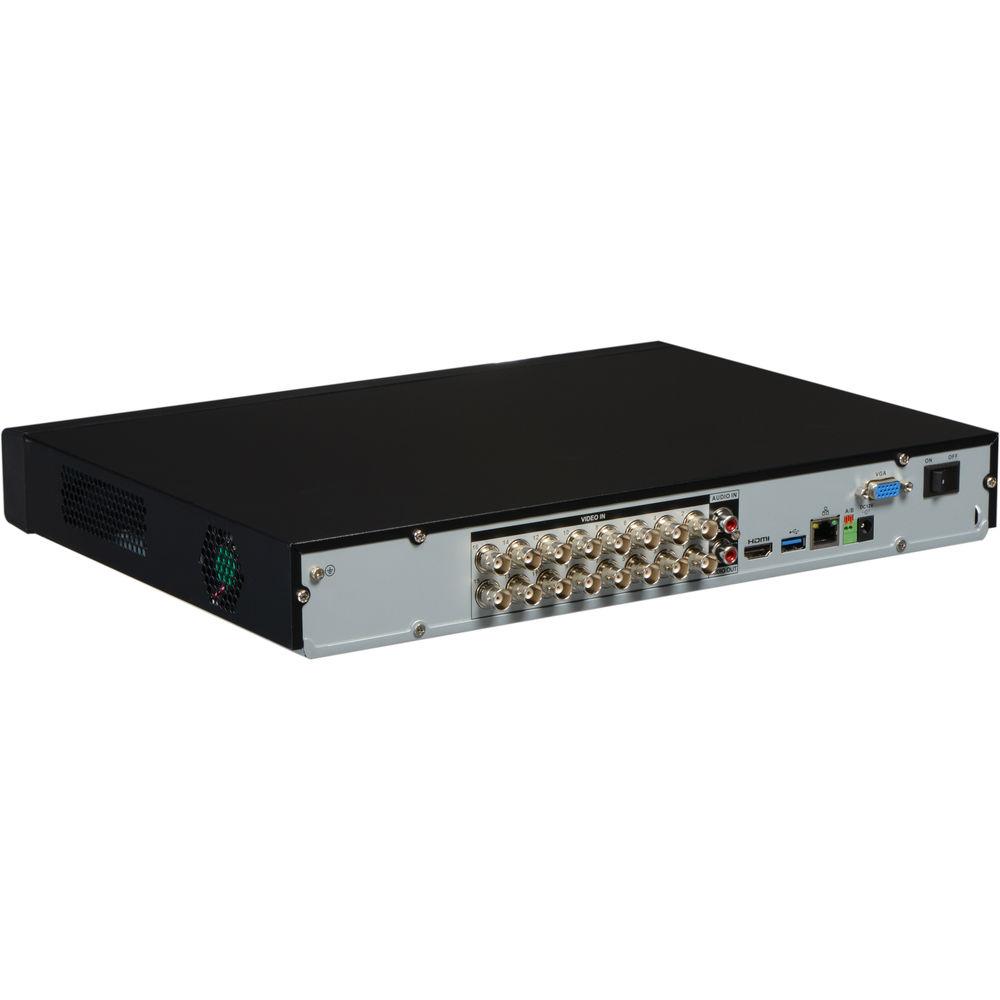

Technical parametersDahua Technology X22A3N6 Specs | Main Processor | Embedded | | Operating System | Linux | | Camera Inputs | 16 x BNC (supports HD-CVI/AHD/TVI/CVBS, automatic detection)
An additional 8 IP cameras are supported via an optional PoE switch | | Recording Resolution | Main Stream:
1920 x 1080 at 1-15 fps, 1280 x 720 at 30 fps, 1080N, 960H, D1, HD1, BCIF, CIF, QCIF at 1-30 fps
Sub Stream:
D1, CIF, QCIF at 1-30 fps
The recording resolution from optional IP cameras is up to 5 MP per channel | | Bit Rate | 1 to 6144 kb/s per channel | | Compression | Smart H.264+/H.264 | | Record Mode | Manual, schedule (regular, continuous), motion detection (video detection, motion detection, tampering, video loss), alarm, stop | | Recording Intervals | 1-60 minutes (default: 60 minutes)
Pre-Record: 1-30 seconds
Post-Record: 10-300 seconds | | Audio | 1 x RCA 1-channel input
1 x RCA 1-channel output | | Interface | 1 x HDMI
1 x VGA | | Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1/4/8/9/16/25 | | Trigger Events | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | 396 motion detection zones (22 x 18), video loss, tampering, and diagnosis | | Playback | 1/4/9/16 | | Search Modes | Time/date, alarm, motion detection, exact search (accurate to one second) | | Backup Modes | USB device, network | | HDD Support | 2 x SATA ports, up to 8 TB capacity for each disk | | Installed HDD | 6 TB | | HDD Mode | Single | | USB | 1 x USB 3.0
1 x USB 2.0 | | Serial Port | 1 x port for PTZ control | | Third-Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and other manufacturers | | Network Interface | 1 x RJ45 port (1000 M) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search (support for Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Compatible Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | Power Supply | 12 VDC, 5 A | | Power Consumption | <15 W, without HDD | | Operating Conditions | 14 to 131°F / -10 to 55°C, 86 to 106 kpa | | Storage Conditions | 32 to 122°F / 0 to 50°C | | Humidity | 0 to 90% RH | | Certifications | Safety: Conforms to UL standard; Electromagnetic Compatibility (EMC): FCC part 15 subpart B, ANSI C63.4-2014, ICES 003 | | Rack Mount | 1 RU | | Dimensions | 14.7 x 11.2 x 2.2" / 37.5 x 28.5 x 5.5 cm | | Weight | 5.2 lb / 2.35 kg, without HDD | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 17.3 x 13.9 x 5.3" |
