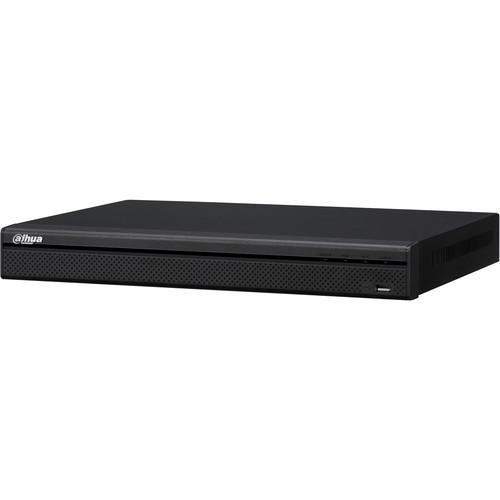

User Manual for Dahua Technology Pro Series 16-Channel 12MP NVR with 1TB HDD and 16 PoE Ports Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 16-Channel 12MP
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Pro Series 16-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Stream and record from up to 16 video channels with the Pro Series 16-Channel 12MP NVR with 1TB HDD and 16 PoE Ports from Dahua Technology. This NVR can record video at resolutions up to 3840 x 2160. Pre-installed with 1TB of HDD storage, the recorder can be expanded to host two HDDs up to 6TB each for a maximum internal capacity of 12TB. 16 PoE ports provide power and video connection to network cameras from Dahua and a variety of other brands (all available separately). H.265, H.264, MJPEG, and MPEG-4 compression codecs are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live viewing and playback of up to 16 channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. All 16 channels can simultaneously record up to 1080p resolution with a maximum combined transfer speed of 320 Mbps. The NVR is equipped with RCA connectors for two-way audio and an RS-232 serial port for computer and keyboard control. Internet connectivity enables remote monitoring via computer, as well as from iOS and Android devices. - Up to 12MP recording per camera
- Built-in PoE in all 16 ports
- Preinstalled with 1TB HDD to store recorded video from all 16 channels
- HDMI and VGA simultaneous video outputs
- Fisheye dewarping for accurate images
- N+M hot standby provides a failover backup to ensure no video data is lost
- Intelligent Video System (IVS) analytics
- Smart Tracking technology for compatible PTZ cameras (available separately)
- Automatic Network Replenishment (ANR) technology allows video to be stored onto a separately available SD card in the event of a network failure and transfers saved footage to the NVR when the connection is reestablished
UPC: 816116020036 In the Box Dahua Technology Pro Series 16-Channel 12MP NVR with 1TB HDD and 16 PoE Ports Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 16-Channel 12MP NVR with 1TB HDD and 16 PoE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-NVR52A16-16P-4KS2 1TB Specs | | | Main Processor | Quad-core embedded processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 16 channels | | Audio | 1 x RCA, 1-channel input, 1-channel output | | | | Interface | 1 x HDMI
1 x VGA | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | OSD | Camera title, time, video loss, camera lock, motion detection, & recording | | | | Compression | H.265, H.264, MJPEG, MPEG-4 | | Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1 | | Recording Bit Rate | 320 Mbps | | Bit Rate | 16 kbps to 20 Mbps per channel | | Recording Mode | Manual, schedule (continuous, motion detection, alarm), stop | | Recording Intervals | 1-120 minutes (default: 60 min)
Pre-Recording: 1-30 sec
Post-Recording: 10-300 sec | | | | Triggers | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, screen tips | | Video Detection | Motion detection, motion detection zones (396 at 22 x 18), video loss, camera blank | | Alarm Input | 4 channels, low level effective | | Relay Output | 2 channels, NO/NC programmable | | Tracking | Trigger Event: Targeting, zoom, tracking, recording, snapshot, alarm | | | | Playback | 1/4/8/16 | | Search Modes | Time/date, alarm, motion detection, exact search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, & digital zoom | | Backup Modes | USB Device, network, internal SATA burner, eSATA device | | | | Ethernet | RJ45 port (10/100/1000 Mbps) | | PoE | 16 x RJ45 Ethernet ports | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search, & P2P | | User Limit | 128 users | | Mobile OS Support | iOS and Android | | Compatibility | ONVIF 2.4, CGI | | | | Internal HDD | 2 x SATA ports, 1 TB preinstalled, capacity up to 12 TB | | | | USB | 1 x USB 3.0 on rear panel
1 x USB 2.0 on front panel | | RS-232 | 1 x port | | RS-485 | 1 x port for PTZ control | | | | Power Supply | Single, 100-240 VAC, 50/60 Hz | | Power Consumption | NVR: 15.2 W (without HDD)
PoE: 130 W (maximum 25.5 W for single port) | | Operating Conditions | 14 to 131°F (-10 to 55°C)
86-106 kPa | | Storage Conditions | -4 to 158°F (-20 to 70°C) | | Storage Humidity | 10 to 90% RH | | Installation | 1U, rackmount | | Certification | FCC: VFHKEM1607001083IT
UL: E234884-A107-UL | | Dimensions | 14.7 x 13 x 2.1" (37.5 x 33.1 x 5.3 cm) | | Weight | 5.73 lb (2.6 kg) without HDD |
