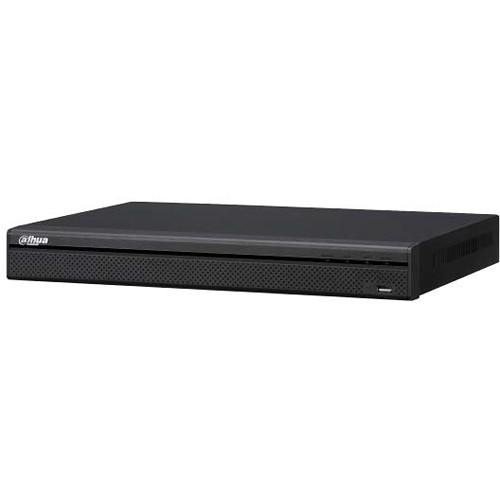

Product description The Pro Series 16-Channel Penta-brid 1080p Mini DVR with 2TB HDD from Dahua lets you upgrade existing video surveillance systems while leveraging existing networks, cabling, and cameras. XVR technology utilizes Pentabrid access to seamlessly record video from HD-CVI, AHD, TVI, CVBS, and IP sources simultaneously. The XVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. XVR technology is a good solution for actively monitoring and recording video feeds in a wide range of environments, including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions. The X22A series supports a maximum of 24 channels, with up to 16 channels of HD-CVI/AHD/TVI/CVBS inputs and 8 additional IP channels. The flexibility of the XVR allows all 24 channels to record input from IP cameras or from a combination of input from analog and IP sources (not to exceed the maximum number of analog cameras allowed per XVR). In addition, the XVR supports a maximum of 16 local live-view channels and 16 play back channels. The Smart H.264+ video compression standard can reduce bit rate and storage requirements by up to 70% without having to invest in new cameras. The XVR automatically recognizes the incoming signals of each attached camera without any setup, making installation and operation convenient. The XVR supports 5MP resolution (2560 x 1920) on IP camera inputs for recording and live viewing. The XVR offers a variety of configurable recording options and schedules that save HDD space and active monitoring time. The XVR monitors incoming video and can be programmed to record if motion is detected or an alarm is triggered. The XVR can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras. Smart Search allows an operator to specify a portion of the video to search for a motion detection event, saving time and manpower. -
- Embedded processor
- Smart H.264+ / H.264 dual-stream video compression
- Offers 720p (real-time) and 1080p (15 fps) resolutions
- 16 HD-CVI/AHD/TVI/CVBS channels
- 16 + 8 IP channels, up to 5MP per channel
- Maximum 96 Mb/s incoming bandwidth
- Built-in smart search
- Two SATA HDD ports, up to 12TB of storage with 2TB HDD
UPC: 816116025550 In the Box Dahua Technology Pro Series 16-Channel Pentabrid 1080p Mini DVR with 2TB HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 16-Channel Pentabrid 1080p Mini DVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X22A3A2 Specs | | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | Internal HDD | With 2TB HDD | | | | Interface | 1 x HDMI
1 x VGA | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1/4/8/9/16/25 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Triggering | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18)
Video loss
Tampering
Diagnosis | | Alarm Input | 16 | | Relay Output | 3 | | | | Playback | 1/4/9/16 | | Search Modes | Time/date, alarm, motion detection, and exact search (accurate to 1 second) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, back up selection, and digital zoom | | Backup Modes | USB device network | | | | Internal HDD | 2 x SATA ports, up to 6 TB capacity for each disk | | HDD Mode | Single | | | | USB | 1 x USB 2.0 port 1 x USB 3.0 port | | RS-485 | 1 x port, for PTZ Control | | | | Third Party Software | Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Camera Inputs | Analog HD-CVI:
16; 1080p resolution support at 15 fps per channel
IP:
16+8; up to 5 MP resolution support per channel | | Audio Connections | Audio In: 4
Audio Out: 1 | | Two-way Audio | Reuse audioiIn (channel 1) / out, RCA | | | | Compression | Smart H.264+/H.264 | | Resolution | 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | | Recording Rate | Main Stream:
1080p at 1 to 15 fps or 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1 to 30 fps
Sub Stream:
D1, CIF, QCIF at 1 to 30 fps | | Bit Rate | 1 to 6144 kb/s per channel | | Audio Record Mode | Manual, schedule (regular, continuous), motion detection (video motion detection, video loss, tampering), alarm, and stop | | Record Length | 1 to 60 minutes (default 60 minutes)
Pre-Record: 1 to 30 secs
Post-Record: 10 to 300 secs | | | | Interface | 1 x RJ45 port (1000M) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Operating System | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | | | Power Supply | 12 VDC, 4 A | | Power Consumption | <15 W (without HDD) | | | | Operating Conditions | 14 to 131°F / -10 to 55°C, 86 to 106 kpa | | Storage Conditions | 32 to 122°F / 0 to 50°C | | Humidity | 0 to 90% RH | | | | Safety | Conforms to UL standard | | Electromagnetic Compatibility | FCC part 15 subpart B
ANSI C63.4 - 2014
ICES 003 | | | | Installation | Desktop installation | | Dimensions | 1U, 14.70 x 11.20 x 2.20" / 375.0 x 285.0 x 55.0 mm | | Weight | 5.20 lb / 2.35 kg, without HDD | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 17.2 x 14.2 x 5.4" |
