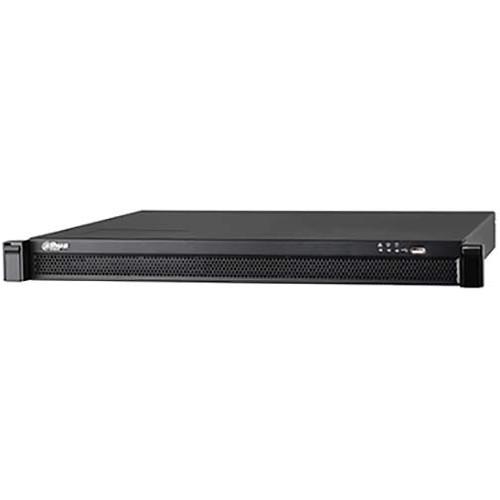

User Manual for Dahua Technology Pro Series 24-Channel 12MP 4K NVR Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 24-Channel 12MP
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Pro Series 24-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 24-Channel 12MP 4K NVR from Dahua Technology supports up to 12MP cameras and records 3840 x 2160 resolution video at up to a total of 320 Mb/s. It features one HDMI and one VGA output, and plays back a quad-split in 4K and 16-channel split in 1080p. This model comes with 2TB of internal HDD storage pre-installed, expandable to 20TB. Recording is in the H.265/H.264 codecs.
There is also an RCA audio input and an output, and an RS-232 serial port. iOS and Android devices are compatible for mobile management. There are analytics features (see below), and also Dewarping Mode, N+M Hot Standby redundancy for fail-over and immediate backup, and Automatic Network Replenishment (ANR) for automatically storing to a camera's SD card if the network gets disconnected and automatically recovering the data afterwards. The NVR also supports an optional Point of Sale (POS) feature, ideal for grocery and retail stores, for monitoring cash transactions. - Intelligent Video System (IVS)
- Video analytics trigger an alarm and take a defined action for the following events:
- Tampering with the camera
- Camera loses or changes focus drastically
- Error writing to an onboard microSD card
- Error sending or receiving data over the network
- Unauthorized access to the camera
- Motion: An object moves through any part of the scene
- Tripwire: A target crosses a user-defined line
- Intrusion: A target enters or exits a defined perimeter
- Scene Change: A person/object moves the camera to change the scene or covers the camera to obscure the scene
- Abandoned/Missing Object: A target leaves an object in a designated area, or removes an object from the same area
- Facial Detection: Detects and captures a snapshot of a human face in a defined area within a scene
- People Counting: Measures the number of customers, visitors, or passengers in a surveillance scene
- Heat Map: Generates a visual representation of data
UPC: 816116027790 In the Box Dahua Technology Pro Series 24-Channel 12MP 4K NVR (2TB HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 24-Channel 12MP 4K NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Pro Series Specs | Processor | Embedded quad-core processor | | Operating System | Embedded Linux | | IP Camera Input | 24 channels (PoE: IEEE802.3af/at, 10/100 Mb/s) | | Video Output | 1 x HDMI (4K)
1 x VGA local output (1080p) | | Audio Input | 1 x RCA | | Audio Output | 1 x RCA | | Recording Resolution | 12/8/6/5/4/3 MP, 1080p, 1.3 MP, 720p, D1, CIF | | Recording Bit Rate | 320 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s per channel | | Display Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
4-channel split at 3840 x 2160
16-channel split at 1080p (decoding up to 12 MP) | | Multi-Screen Display | 1, 4, 8, 9, 16, 25 | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Recording Modes | Manual, schedule (regular / motion detection), alarm, IVS, stop | | Recording Intervals | 1-120 minutes (default: 60 minutes)
Pre-Record: 1-30 seconds
Post-Record: 10-300 seconds | | Trigger Events | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18)
Video loss and tampering | | Alarm Input | 4 channels, low-level effective, green terminal interface | | Relay Output | 2 channels, NO/NC programmable, green terminal interface | | Sync Playback | 1, 4, 9, 16 | | Backup Modes | USB device, network | | Compatible Brands | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, DynaColor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | Network Interface | 1 x RJ45 port (10/100/1000M) | | Ethernet Port | 1 x independent 1000M Ethernet port | | PoE | 24 x ports (IEEE802.3af/at), 10/100M | | Forwarding Rate | 320 Mb/s | | Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, and IP search | | Maximum User Access | 128 users | | Compatible Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4, CGI conformant | | HDD Support | 2 x internal SATA III ports supporting up to 10 TB each/20 TB maximum | | HDD Mode | Single | | HDD Included | 2 TB pre-installed | | USB Interface | 1 x USB 3.0 (rear)
1 x USB 2.0 (front) | | RS-232 | 1 x port for PC communication and keyboard | | Power Supply | 100-240 VAC, 50/60 Hz | | Power Consumption | <16 W (without any HDDs) | | PoE Power Budget | 25.5 W single port, 210 W total | | Operating Conditions | 14 to 131°F / -10 to 55°C | | Storage Conditions | -4 to 158°F / -20 to 70°C, 0-90% RH | | Safety | UL 60950-1
CAN/CSA C22.2 No. 60960-1
FCC Part 15 Subpart B
ANSI C63.4-2014 | | Rack Space | 1 RU | | Dimensions | 17.3 x 16.5 x 1.7" / 44 x 42 x 4.4 cm | | Weight | 9.9 lb / 4.5 kg (without any HDDs) |
